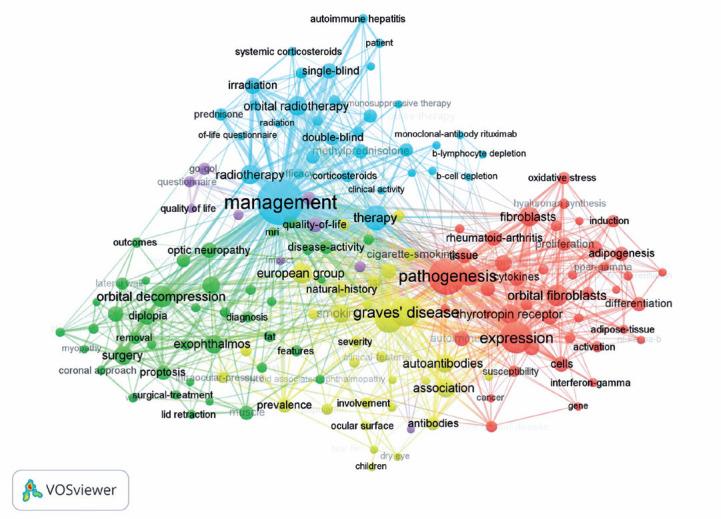

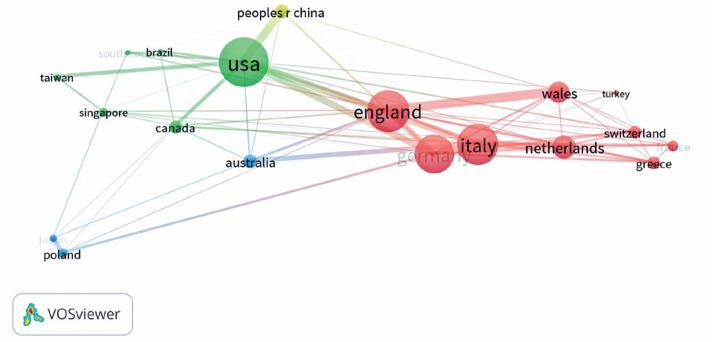

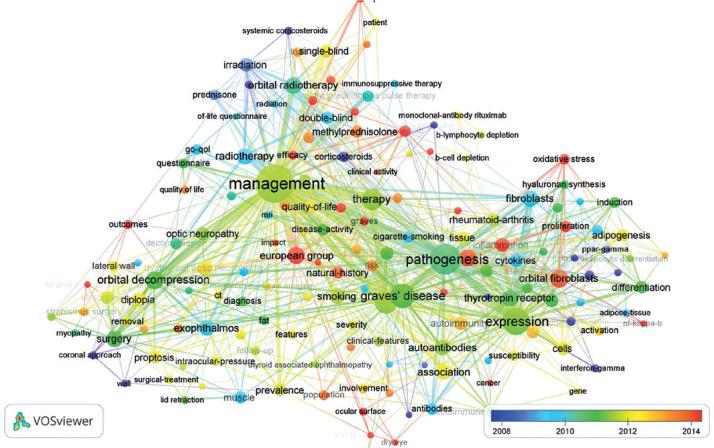

PURPOSE: This study was conducted to identify trends in Graves' orbitopathy research in the past two decades and to elaborate on hot topics in the field. METHODS: The Web of Science database was used to extract articles on Graves' orbitopathy or its synonyms. Full data and references were exported to VOSviewer software to be analyzed. Visualization maps and charts were constructed accordingly. RESULTS: We retrieved 1067 articles on Graves' orbitopathy from the Web of Science database. The United States ranked first in terms of the article count (25), followed by Italy (141) and the People's Republic of China (120). Wiersinga's and the University of Amsterdam's articles received the highest citation count (1509 and 3052, respectively). The University of Pisa and Thyroid published the highest number of articles (65 and 93, respectively). Co-authorship analysis showed four clusters of country collaborations: red cluster, European countries; green cluster, the United States, Brazil, Canada, South Korea, and Taiwan; a yellow cluster, People's Republic of China; and blue cluster, Japan, Australia, and Poland. Keyword analysis revealed five clusters of topics: pathogenesis, management, association, quality of life, and surgery. Analysis of co-cited references also revealed five clusters: pathogenesis, management, risk factors, clinical assessment, and surgical management. CONCLUSION: Research on Graves' orbitopathy has grown during the past two decades. Hot research topics are pathogenesis, management, risk factors, quality of life, and complications. Research trends have changed in the past two decades. Increasing interest in exploring Graves' orbitopathy mechanisms and associations is evident. European countries are cooperating in this field of research. The United States has established more extensive international cooperation than other countries. We believe that more international collaboration involving developing countries is required.
