OBJECTIVE

To investigate the value of gray-scale ultrasound (US) image histogram in the differential diagnosis between small (≤2.00 cm), oval, or round triple negative breast invasive ductal carcinoma (TN-IDC) and fibroadenoma (FA).

METHODS

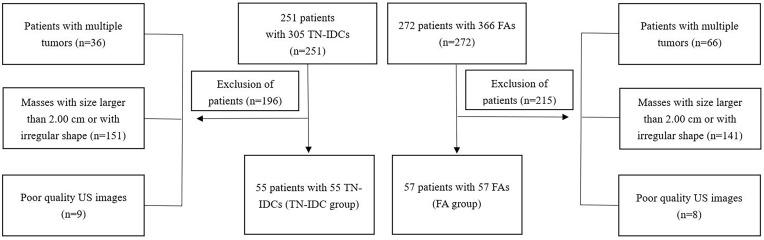

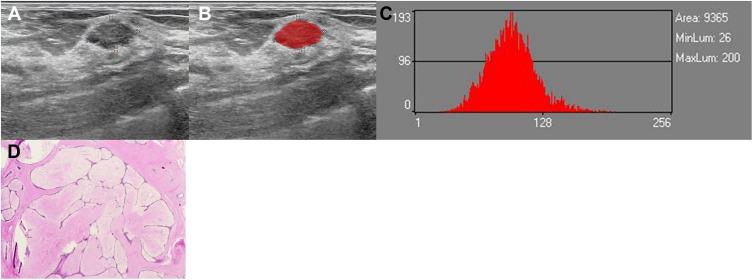

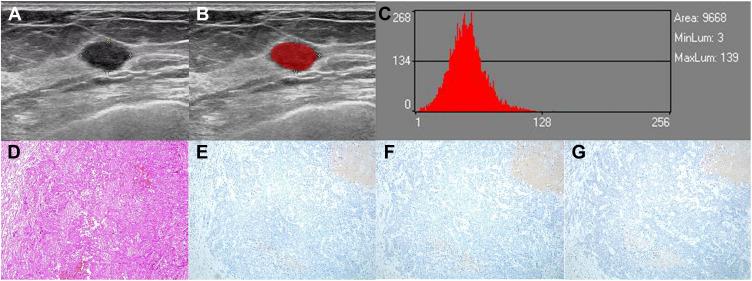

Fifty-five cases of triple negative breast invasive ductal carcinoma (TN-IDC group) and 57 cases of breast fibroadenoma (FA group) confirmed by pathology in Hubei cancer hospital from September 2017 to September 2021 were analyzed retrospectively. The gray-scale US images were analyzed by histogram analysis method, from which some parameters (including mean, variance, skewness, kurtosis and 1st, 10th, 50th, 90th and 99th percentile) can be obtained. Intraclass correlation coefficient (ICC) was used to evaluate the inter observer reliability of histogram parameters. Histogram parameters between the TN-IDC and FA groups were compared using independent Student's -test or Mann-Whitney -test, respectively. In addition, the receiver operating characteristic (ROC) curve analysis was used for the significant parameters to calculate the differential diagnosis efficiency.

RESULTS

All the histogram parameters showed excellent inter-reader consistency, with the ICC values ranged from 0.883 to 0.999. The mean value, 1st, 10th, 50th, 90th and 99th percentiles of TN-IDC group were significantly lower than those of FA group (P < 0.05). The area under ROC curve (AUC) values of mean and n percentiles were from 0.807 to 0.848. However, there were no significant differences in variance, skewness and kurtosis between the two groups (P > 0.05).

CONCLUSION

Histogram analysis of gray-scale US images can well distinguish small, oval, or round TN-IDC from FA.
