Chen Jin, Huang Zhuo, Wang Fang, Gong Min, Zhang Xueli, Wang Yajing, Hu Zuquan, Zeng Zhu, Wang Yun
Key Laboratory of Biology and Medical Engineering/Immune Cells and Antibody Engineering Research Center of Guizhou Province, School of Biology and Engineering, Guizhou Medical University Guiyang 550025 P. R. China
Key Laboratory of Infectious Immune and Antibody Engineering of Guizhou Province, School of Basic Medical Sciences, Guizhou Medical University Guiyang 550025 P. R. China.
RSC Adv. 2022 Apr 20;12(19):12002-12010. doi: 10.1039/d2ra00756h. eCollection 2022 Apr 13.

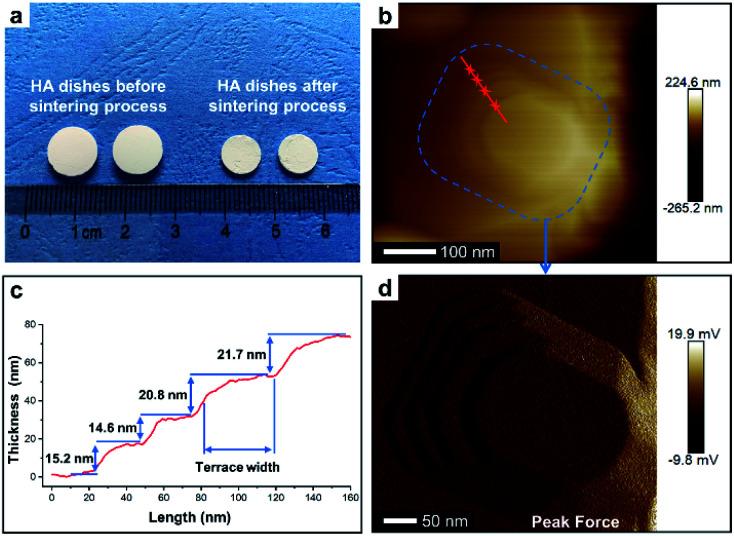

Currently, many researches have developed several strategies to design the surface structures of hydroxyapatite (HA), and have proved that the surface structures are pivotal in guiding the adhesion of bone marrow mesenchymal stem cells (BMSCs) as well as subsequent cellular behaviours. Most of these strategies, such as altering roughness and constructing surface patterning of HA, involve the construction of geometric topographies at the micro/nanoscale. However, besides geometric topographies, crystal defects are also important characteristics of surface structures and would alter many local physicochemical properties, which is critical for contact between cells and bioceramic surfaces. For the practical applications of crystal defects, a major hindrance is that crystal defects are usually unstable and easily eliminated during crystallization, which limits the large-scale fabrication of materials with crystal defects. In this work, given that stepped structures contain massive stable crystal defects on their step edges and kinks, we proposed a feasible and efficient method to fabricate HA dishes with stepped structures on their surfaces. First, plate-like HA mesocrystals were prepared from CaHPO topotactic transformation, and were shaped into HA dishes by vacuum-filtration. Then, a sintering process was applied to facilitate the formation of stepped structures on the surfaces. We demonstrated that the generation of stepped structures could restrict the adhesion of BMSCs and showed the restriction effect is highly correlated with the density of exposed stepped structures. This phenomenon is interesting and the construction of a cell adhesion model is robust and easy, the underlying mechanisms of which deserve further exploration. Furthermore, constructing stepped structures on surfaces may be a new useful strategy to regulate cell adhesion and could also cooperate with other methods that do not need change in the surface crystal structure.
目前,许多研究已经开发出多种策略来设计羟基磷灰石(HA)的表面结构,并且已经证明这些表面结构在引导骨髓间充质干细胞(BMSCs)的黏附以及随后的细胞行为方面起着关键作用。这些策略中的大多数,例如改变粗糙度和构建HA的表面图案,都涉及在微/纳米尺度上构建几何形貌。然而,除了几何形貌之外,晶体缺陷也是表面结构的重要特征,并且会改变许多局部物理化学性质,这对于细胞与生物陶瓷表面之间的接触至关重要。对于晶体缺陷的实际应用,一个主要障碍是晶体缺陷通常不稳定,并且在结晶过程中容易消除,这限制了具有晶体缺陷的材料的大规模制备。在这项工作中,鉴于阶梯状结构在其台阶边缘和扭结处包含大量稳定的晶体缺陷,我们提出了一种可行且高效的方法来制备表面具有阶梯状结构的HA培养皿。首先,通过CaHPO的拓扑转化制备板状HA介晶,并通过真空过滤将其成型为HA培养皿。然后,应用烧结工艺以促进表面上阶梯状结构的形成。我们证明了阶梯状结构的产生可以限制BMSCs的黏附,并且表明这种限制效应与暴露的阶梯状结构的密度高度相关。这种现象很有趣,并且构建细胞黏附模型稳健且容易,其潜在机制值得进一步探索。此外,在表面构建阶梯状结构可能是一种调节细胞黏附的新的有用策略,并且还可以与其他不需要改变表面晶体结构的方法协同作用。
