BioMark@ISEP, School of Engineering, Polytechnic Institute, 4249-015 Porto, Portugal.
Centre of Biological Engineering, Minho University (CEB), 4710-057 Braga, Portugal.
Sensors (Basel). 2022 Apr 22;22(9):3221. doi: 10.3390/s22093221.

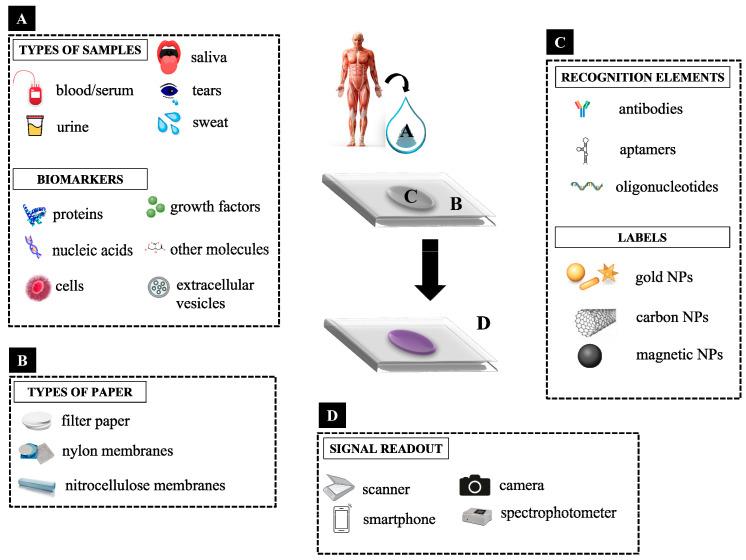

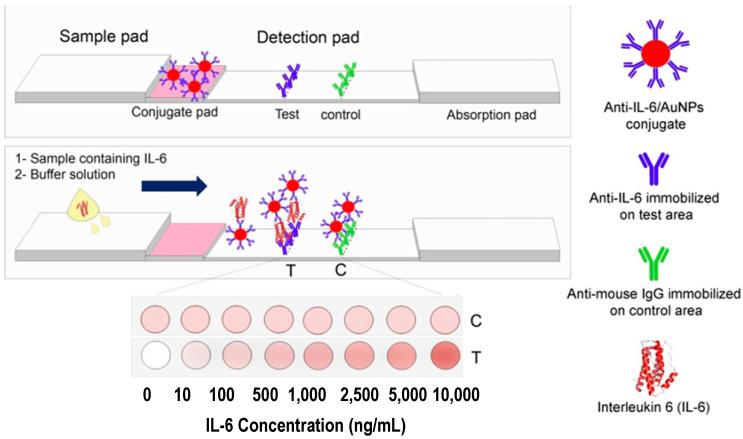

Cancer is a major cause of mortality and morbidity worldwide. Detection and quantification of cancer biomarkers plays a critical role in cancer early diagnosis, screening, and treatment. Clinicians, particularly in developing countries, deal with high costs and limited resources for diagnostic systems. Using low-cost substrates to develop sensor devices could be very helpful. The interest in paper-based sensors with colorimetric detection increased exponentially in the last decade as they meet the criteria for point-of-care (PoC) devices. Cellulose and different nanomaterials have been used as substrate and colorimetric probes, respectively, for these types of devices in their different designs as spot tests, lateral-flow assays, dipsticks, and microfluidic paper-based devices (μPADs), offering low-cost and disposable devices. However, the main challenge with these devices is their low sensitivity and lack of efficiency in performing quantitative measurements. This review includes an overview of the use of paper for the development of sensing devices focusing on colorimetric detection and their application to cancer biomarkers. We highlight recent works reporting the use of paper in the development of colorimetric sensors for cancer biomarkers, such as proteins, nucleic acids, and others. Finally, we discuss the main advantages of these types of devices and highlight their major pitfalls.
癌症是全球死亡和发病的主要原因。癌症生物标志物的检测和定量在癌症的早期诊断、筛查和治疗中起着关键作用。临床医生,特别是在发展中国家,面临着诊断系统成本高和资源有限的问题。使用低成本的基质来开发传感器设备可能非常有帮助。在过去十年中,人们对基于纸的比色检测传感器的兴趣呈指数级增长,因为它们符合即时护理 (PoC) 设备的标准。纤维素和不同的纳米材料分别被用作这些类型设备的基质和比色探针,其不同设计包括斑点测试、侧向流动分析、试纸条和微流控纸基设备 (μPAD),提供低成本和一次性设备。然而,这些设备的主要挑战是它们的灵敏度低,并且在进行定量测量方面效率低下。本综述包括对纸在比色检测传感设备开发中的应用的概述,以及它们在癌症生物标志物中的应用。我们重点介绍了最近报道的使用纸开发用于癌症生物标志物(如蛋白质、核酸和其他标志物)的比色传感器的工作。最后,我们讨论了这些类型设备的主要优点,并强调了它们的主要缺陷。
