Amorphous FeCoCrSiB Ribbons with Tailored Anisotropy for the Development of Magnetic Elements for High Frequency Applications.

作者信息

Kurlyandskaya Galina V, Lezama Luis, Pasynkova Anna A, Volchkov Stanislav O, Lukshina Vera A, Larrañaga Aitor, Dmitrieva Natalia V, Timofeeva Anastasia V, Orue Iñaki

机构信息

Department of Electricity and Electronics, Basque Country University (UPV/EHU), 48940 Leioa, Spain.

Institute of Natural Sciences and Mathematics, Ural Federal University, 620002 Ekaterinburg, Russia.

出版信息

Materials (Basel). 2022 Jun 12;15(12):4160. doi: 10.3390/ma15124160.


DOI:10.3390/ma15124160
PMID:35744219
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9229370/
Abstract

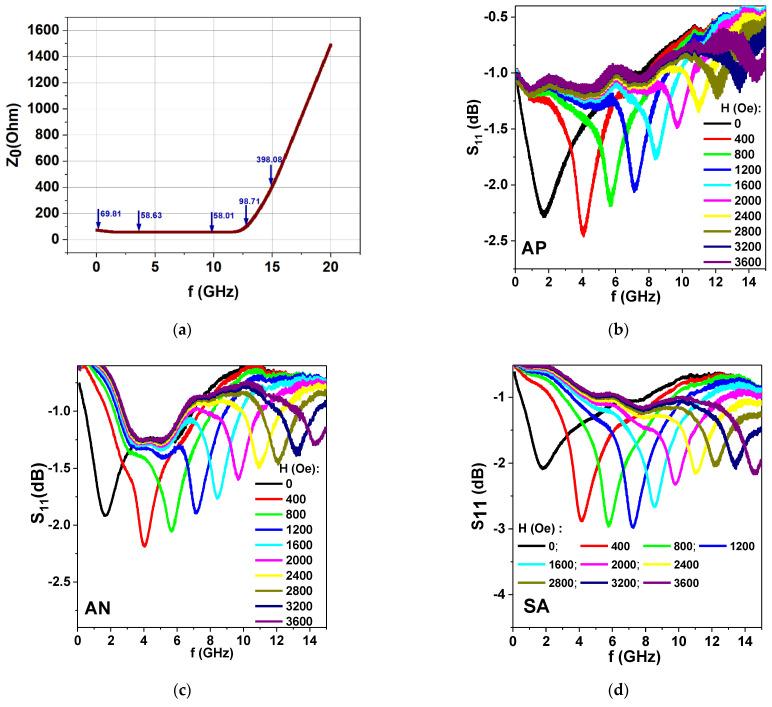

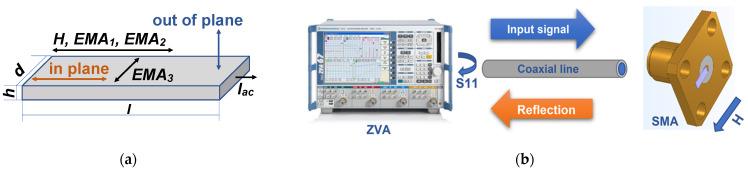

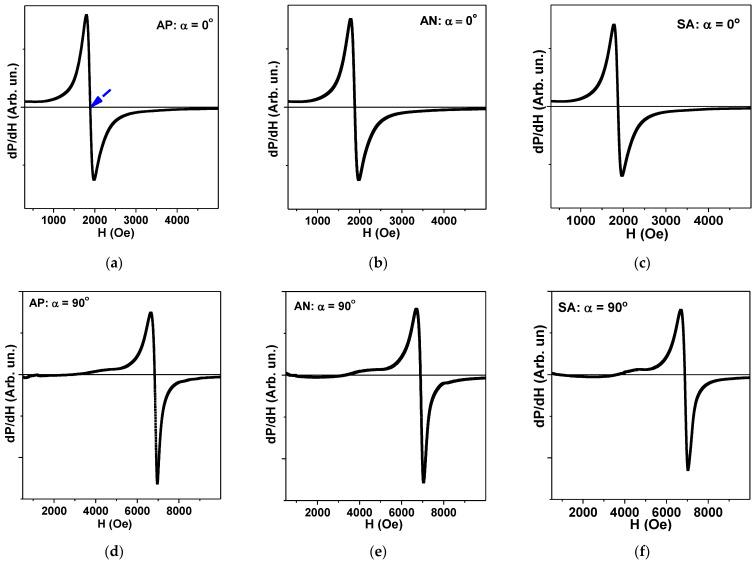

The ferromagnetic resonance (FMR) in the frequency range of 0.5 to 12.5 GHz has been investigated as a function of external magnetic field for rapidly quenched FeCoCrSiB amorphous ribbons with different features of the effective magnetic anisotropy. Three states of the ribbons were considered: as-quenched without any treatment; after relaxation annealing without stress at the temperature of 350 °C during 1 h; and after annealing under specific stress of 230 MPa at the temperature of 350 °C during 1 h. For FMR measurements, we adapted a technique previously proposed and tested for the case of microwires. Here, amorphous ribbons were studied using the sample holder based on a commercial SMA connector. On the basis of the measurements of the reflection coefficient S the total impedance including its real and imaginary components was determined to be in the frequency range of 0.5 to 12.5 GHz. In order to confirm the validity of the proposed technique, FMR was also measured by the certified cavity perturbation technique using a commercial Bruker spectrometer operating at X-band frequency of 9.39 GHz. As part of the characterization of the ribbons used for microwave measurements, comparative analysis was performed of X-ray diffraction, optical microscopy, transmission electron microscopy, inductive magnetic hysteresis loops, vibrating sample magnetometry, magneto-optical Kerr effect (including magnetic domains) and magnetoimpedance data for of all samples.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/ad5466dc50f1/materials-15-04160-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/7d5e3f2ff558/materials-15-04160-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/e37310614f44/materials-15-04160-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/d8a67f15735f/materials-15-04160-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/44767ea1779a/materials-15-04160-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/c46cd7441d1b/materials-15-04160-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/cae5ad10a0f1/materials-15-04160-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/6e337bee0ce8/materials-15-04160-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/27cb27d49227/materials-15-04160-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/ad5466dc50f1/materials-15-04160-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/7d5e3f2ff558/materials-15-04160-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/e37310614f44/materials-15-04160-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/d8a67f15735f/materials-15-04160-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/44767ea1779a/materials-15-04160-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/c46cd7441d1b/materials-15-04160-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/cae5ad10a0f1/materials-15-04160-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/6e337bee0ce8/materials-15-04160-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/27cb27d49227/materials-15-04160-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/418b/9229370/ad5466dc50f1/materials-15-04160-g009.jpg
