可拉伸海绵电极,用于长期、抗运动伪迹、高质量生理信号记录。

Stretchable Sponge Electrodes for Long-Term and Motion-Artifact-Tolerant Recording of High-Quality Electrophysiologic Signals.

机构信息

Department of Electrical & Systems Engineering, Washington University in St. Louis, St. Louis, Missouri 63130, United States.

Institute of Materials Science and Engineering, Washington University in St. Louis, St. Louis, Missouri 63130, United States.

出版信息

ACS Nano. 2022 Aug 23;16(8):11792-11801. doi: 10.1021/acsnano.2c04962. Epub 2022 Jul 21.

Abstract

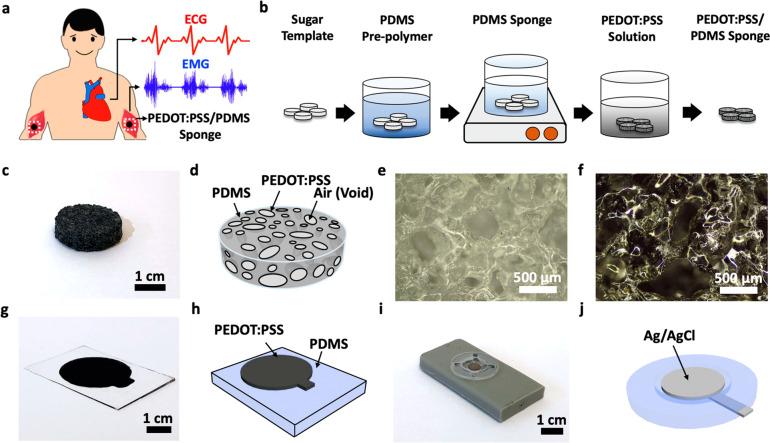

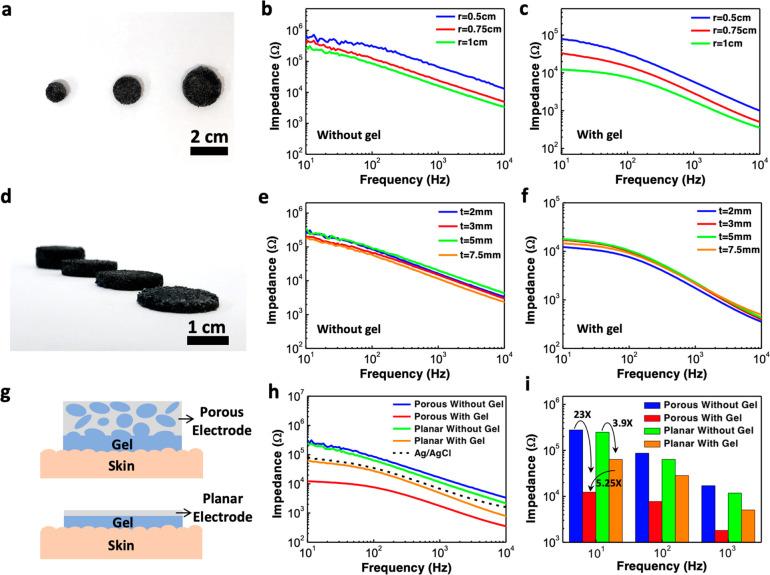

Soft electronic devices and sensors have shown great potential for wearable and ambulatory electrophysiologic signal monitoring applications due to their light weight, ability to conform to human skin, and improved wearing comfort, and they may replace the conventional rigid electrodes and bulky recording devices widely used nowadays in clinical settings. Herein, we report an elastomeric sponge electrode that offers greatly reduced electrode-skin contact impedance, an improved signal-to-noise ratio (SNR), and is ideally suited for long-term and motion-artifact-tolerant recording of high-quality biopotential signals. The sponge electrode utilizes a porous polydimethylsiloxane sponge made from a sacrificial template of sugar cubes, and it is subsequently coated with a poly(3,4-ethylenedioxythiophene) polystyrenesulfonate (PEDOT:PSS) conductive polymer using a simple dip-coating process. The sponge electrode contains numerous micropores that greatly increase the skin-electrode contact area and help lower the contact impedance by a factor of 5.25 or 6.7 compared to planar PEDOT:PSS electrodes or gold-standard Ag/AgCl electrodes, respectively. The lowering of contact impedance resulted in high-quality electrocardiogram (ECG) and electromyogram (EMG) recordings with improved SNR. Furthermore, the porous structure also allows the sponge electrode to hold significantly more conductive gel compared to conventional planar electrodes, thereby allowing them to be used for long recording sessions with minimal signal degradation. The conductive gel absorbed into the micropores also serves as a buffer layer to help mitigate motion artifacts, which is crucial for recording on ambulatory patients. Lastly, to demonstrate its feasibility and potential for clinical usage, we have shown that the sponge electrode can be used to monitor uterine contraction activities from a patient in labor. With its low-cost fabrication, softness, and ability to record high SNR biopotential signals, the sponge electrode is a promising platform for long-term wearable health monitoring applications.

摘要

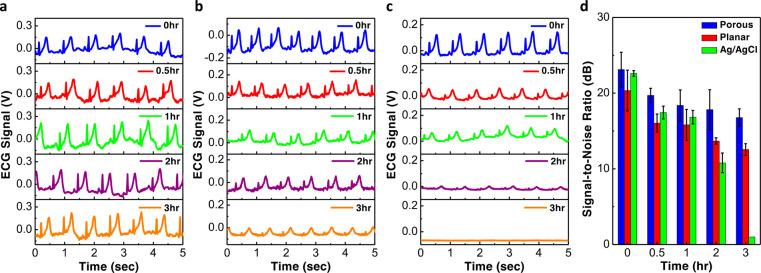

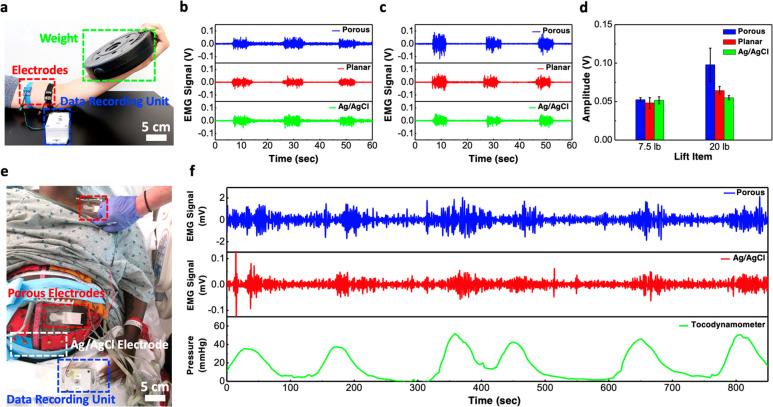

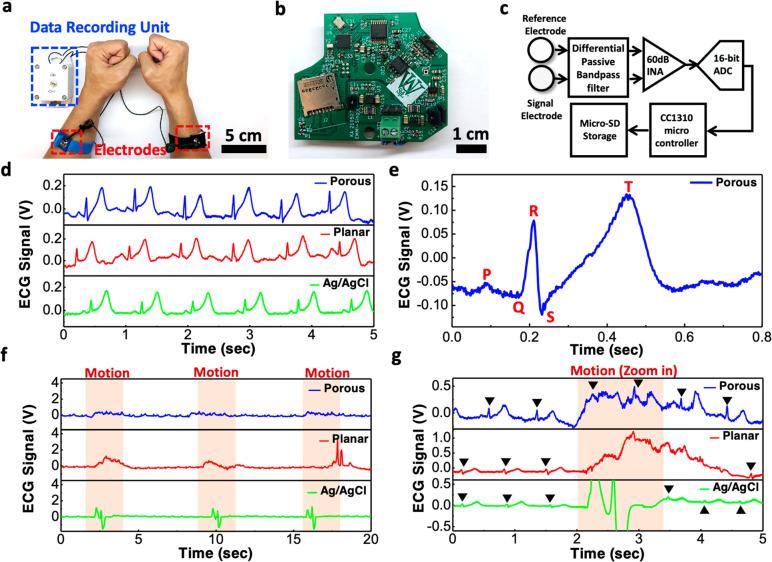

弹性电子器件和传感器由于其重量轻、能够贴合人体皮肤以及提高佩戴舒适性,在可穿戴和动态电生理信号监测应用中显示出巨大的潜力,它们可能会取代目前临床应用中广泛使用的传统刚性电极和体积庞大的记录设备。在此,我们报告了一种弹性海绵电极,它大大降低了电极与皮肤的接触阻抗,提高了信噪比(SNR),非常适合长期、抗运动伪迹、高质量生物电势信号的记录。该海绵电极利用了由糖块牺牲模板制成的多孔聚二甲基硅氧烷(PDMS)海绵,并通过简单的浸涂工艺在其表面涂覆一层聚(3,4-亚乙基二氧噻吩)-聚苯乙烯磺酸盐(PEDOT:PSS)导电聚合物。海绵电极中含有大量的微孔,极大地增加了皮肤与电极的接触面积,与平面 PEDOT:PSS 电极或金标准 Ag/AgCl 电极相比,接触阻抗分别降低了 5.25 倍或 6.7 倍。接触阻抗的降低导致心电图(ECG)和肌电图(EMG)记录的高质量和 SNR 的提高。此外,多孔结构还使海绵电极能够容纳比传统平面电极更多的导电凝胶,从而使它们能够在长时间记录过程中使用,而信号衰减最小。吸收到微孔中的导电凝胶还起到缓冲层的作用,有助于减轻运动伪迹,这对于对动态患者进行记录至关重要。最后,为了展示其临床应用的可行性和潜力,我们已经证明海绵电极可以用于监测分娩产妇的子宫收缩活动。该海绵电极具有低成本制造、柔软性以及记录高 SNR 生物电势信号的能力,是一种很有前途的长期可穿戴健康监测应用平台。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6032/9413418/784aaaa63eba/nn2c04962_0001.jpg
