Phasuksom Katesara, Sirivat Anuvat
Conductive and Electroactive Polymers Research Unit, Petroleum and Petrochemical College, Chulalongkorn University 254 Chula 12 Phayathai Rd. Pathumwan Bangkok 10330 Thailand
RSC Adv. 2022 Oct 6;12(44):28505-28518. doi: 10.1039/d2ra04947c. eCollection 2022 Oct 4.

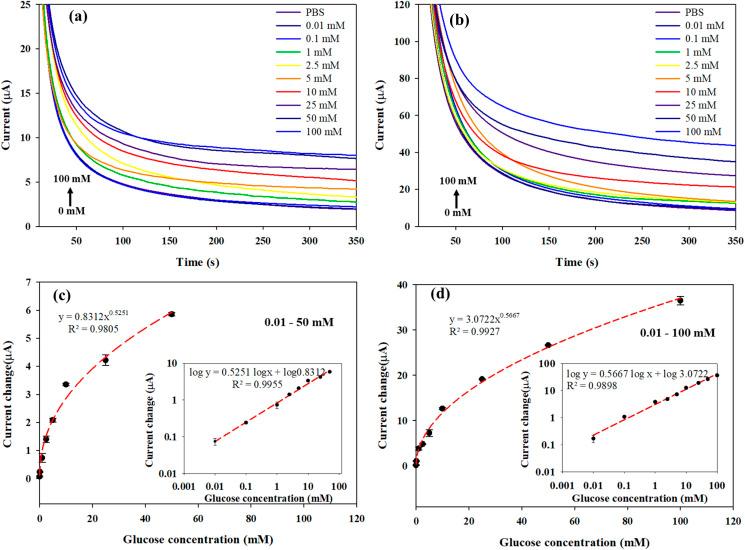

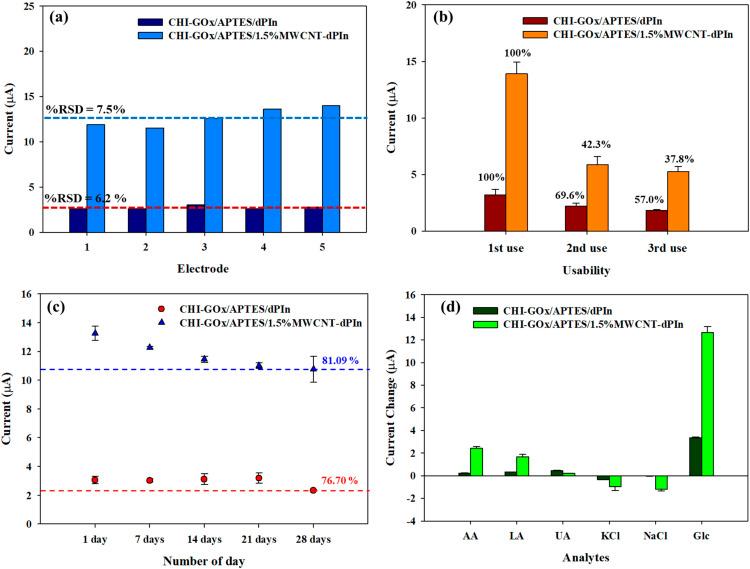

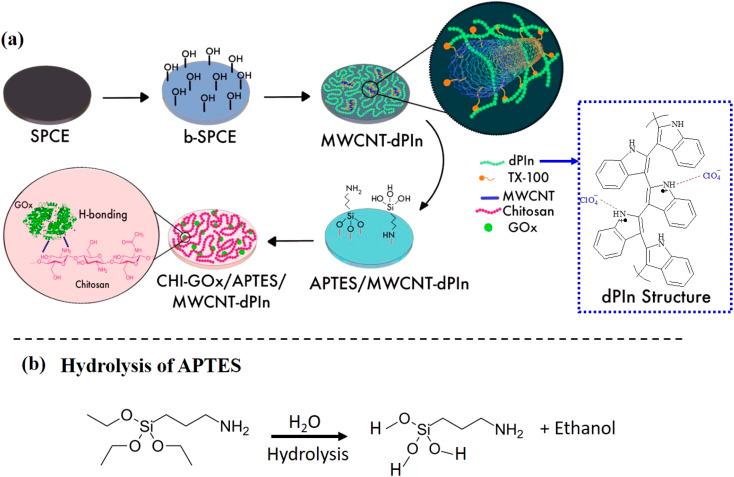

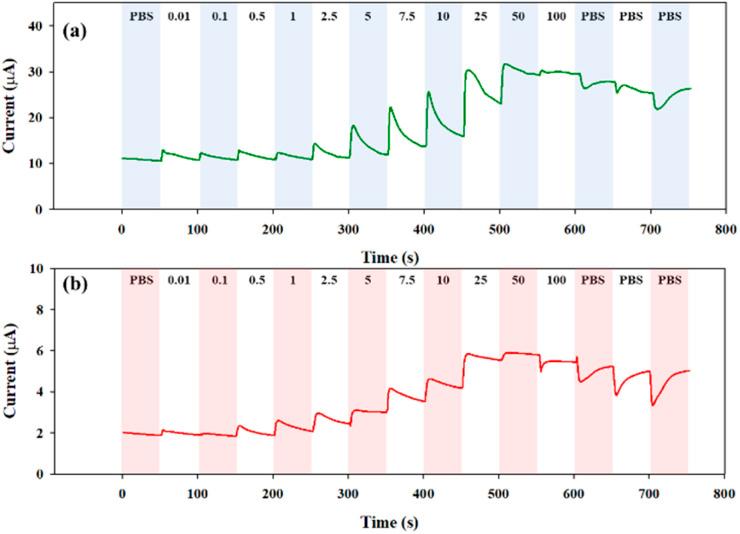

Doped-polyindole (dPIn) mixed with multi-walled carbon nanotubes (MWCNTs) were coated on a screen-printed electrode to improve the electroactive surface area and current response of the chronoamperometric enzymatic glucose sensor. Glucose oxidase mixed with chitosan (CHI-GOx) was immobilized on the electrode. (3-Aminopropyl) triethoxysilane (APTES) was used as a linker between the CHI-GOx and the dPIn. The current response of the glucose sensor increased with increasing glucose concentration according to a power law relation. The sensitivity of the CHI-GOx/APTES/dPIn was 55.7 μA mM cm with an LOD (limit of detection) of 0.01 mM, where the detectable glucose concentration range was 0.01-50 mM. The sensitivity of the CHI-GOx/APTES/1.5%MWCNT-dPIn was 182.9 μA mM cm with an LOD of 0.01 mM, where the detectable glucose concentration range was 0.01-100 mM. The detectable concentration ranges of glucose well cover the glucose concentrations in urine and blood. The fabricated enzymatic glucose sensors showed high stability during a storage period of four weeks and high selectivity relative to other interferences. Moreover, the sensor was successfully demonstrated as a continuous or step-wise glucose monitoring device. The preparation method employed here was facile and suitable for large quantity production. The glucose sensor fabricated here, consisting of the three-electrode cell of SPCE, were simple to use for glucose detection. Thus, it is promising to use as a prototype for real glucose monitoring for diabetic patients in the future.
将掺杂聚吲哚(dPIn)与多壁碳纳米管(MWCNTs)混合后涂覆在丝网印刷电极上,以提高计时电流型酶促葡萄糖传感器的电活性表面积和电流响应。将葡萄糖氧化酶与壳聚糖混合(CHI-GOx)固定在电极上。(3-氨丙基)三乙氧基硅烷(APTES)用作CHI-GOx与dPIn之间的连接剂。葡萄糖传感器的电流响应根据幂律关系随葡萄糖浓度的增加而增加。CHI-GOx/APTES/dPIn的灵敏度为55.7 μA mM cm,检测限(LOD)为0.01 mM,可检测的葡萄糖浓度范围为0.01-50 mM。CHI-GOx/APTES/1.5%MWCNT-dPIn的灵敏度为182.9 μA mM cm,检测限为0.01 mM,可检测的葡萄糖浓度范围为0.01-100 mM。葡萄糖的可检测浓度范围很好地覆盖了尿液和血液中的葡萄糖浓度。所制备的酶促葡萄糖传感器在四周的储存期内表现出高稳定性,并且相对于其他干扰物具有高选择性。此外,该传感器已成功被证明可作为连续或逐步的葡萄糖监测设备。这里采用的制备方法简便,适用于大规模生产。这里制备的葡萄糖传感器由SPCE的三电极池组成,用于葡萄糖检测很简单。因此,有望在未来用作糖尿病患者实时葡萄糖监测的原型。
