利用深度学习对活体线场共聚焦光学相干断层扫描图像的真皮基质进行质量评估。

Utilizing deep learning for dermal matrix quality assessment on in vivo line-field confocal optical coherence tomography images.

机构信息

R&D Department, SILAB, Brive-la-Gaillarde, France.

出版信息

Skin Res Technol. 2023 Jan;29(1):e13221. doi: 10.1111/srt.13221. Epub 2022 Nov 10.


DOI:10.1111/srt.13221
PMID:36366860
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9838780/
Abstract

BACKGROUND: Line-field confocal optical coherence tomography (LC-OCT) is an imaging technique providing non-invasive "optical biopsies" with an isotropic spatial resolution of ∼1  μm and deep penetration until the dermis. Analysis of obtained images is classically performed by experts, thus requiring long and fastidious training and giving operator-dependent results. In this study, the objective was to develop a new automated method to score the quality of the dermal matrix precisely, quickly, and directly from in vivo LC-OCT images. Once validated, this new automated method was applied to assess photo-aging-related changes in the quality of the dermal matrix. MATERIALS AND METHODS: LC-OCT measurements were conducted on the face of 57 healthy Caucasian volunteers. The quality of the dermal matrix was scored by experts trained to evaluate the fibers' state according to four grades. In parallel, these images were used to develop the deep learning model by adapting a MobileNetv3-Small architecture. Once validated, this model was applied to the study of dermal matrix changes on a panel of 36 healthy Caucasian females, divided into three groups according to their age and photo-exposition. RESULTS: The deep learning model was trained and tested on a set of 15 993 images. Calculated on the test data set, the accuracy score was 0.83. As expected, when applied to different volunteer groups, the model shows greater and deeper alteration of the dermal matrix for old and photoexposed subjects. CONCLUSIONS: In conclusion, we have developed a new method that automatically scores the quality of the dermal matrix on in vivo LC-OCT images. This accurate model could be used for further investigations, both in the dermatological and cosmetic fields.

摘要

背景:线场共聚焦光学相干断层扫描(LC-OCT)是一种成像技术,提供具有约 1μm 各向同性空间分辨率和深层穿透至真皮的非侵入性“光学活检”。获得的图像的分析通常由专家进行,因此需要长期而繁琐的培训,并产生依赖于操作人员的结果。在这项研究中,目的是开发一种新的自动化方法,从体内 LC-OCT 图像中精确、快速和直接地对真皮基质的质量进行评分。一旦验证,这种新的自动化方法就应用于评估与光老化相关的真皮基质质量变化。

材料和方法:在 57 名健康白种人志愿者的面部进行 LC-OCT 测量。专家根据四个等级对真皮基质的质量进行评分。同时,这些图像被用于开发深度学习模型,通过适应 MobileNetv3-Small 架构来实现。一旦验证,该模型就应用于 36 名健康白种女性的真皮基质变化研究,根据年龄和光暴露将其分为三组。

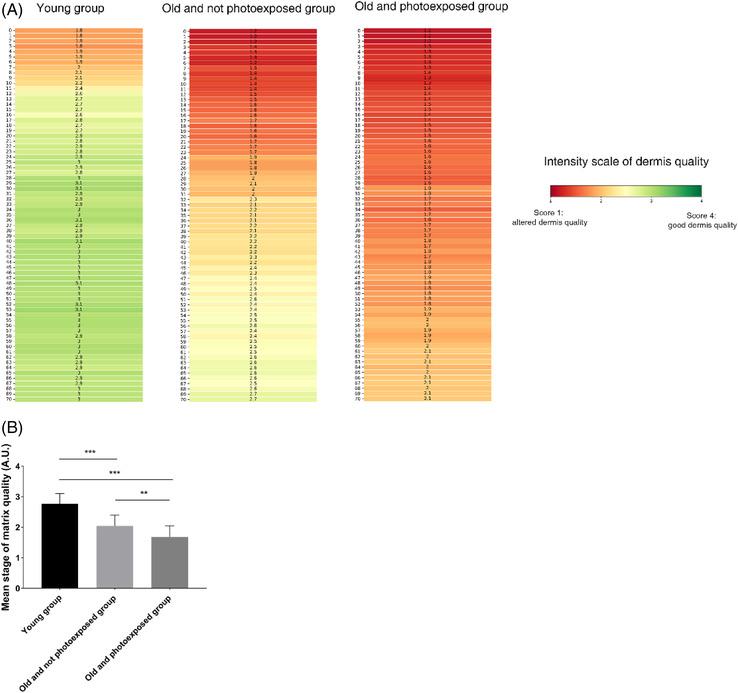

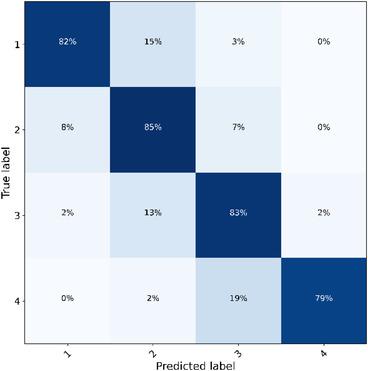

结果:深度学习模型在一组 15993 张图像上进行了训练和测试。在测试数据集上计算的准确率得分为 0.83。正如预期的那样,当应用于不同的志愿者组时,该模型显示出老年和光暴露受试者真皮基质的更大和更深的改变。

结论:总之,我们开发了一种新的方法,可自动对体内 LC-OCT 图像上的真皮基质质量进行评分。这种准确的模型可用于皮肤科和美容领域的进一步研究。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/cb4b/9838780/eac9d41b6e01/SRT-29-e13221-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/cb4b/9838780/eba2cbaeeef9/SRT-29-e13221-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/cb4b/9838780/0045e4249a99/SRT-29-e13221-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/cb4b/9838780/eac9d41b6e01/SRT-29-e13221-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/cb4b/9838780/eba2cbaeeef9/SRT-29-e13221-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/cb4b/9838780/0045e4249a99/SRT-29-e13221-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/cb4b/9838780/eac9d41b6e01/SRT-29-e13221-g002.jpg
