Raju Vishnu, Revathiswaran Revathi, Subramanian Kizhaeral Sevanthapandian, Parthiban Kalappan Thangamuthu, Chandrakumar Kalichamy, Anoop Elaveetil Vasu, Chirayil Cintil Jose
Forest College and Research Institute, Tamil Nadu Agricultural University, Mettupalayam, Tamil Nadu, 641301, India.
Department of Forest Products and Utilization, College of Forestry, Kerala Agricultural University, Thrissur, Kerala, 680656, India.
Sci Rep. 2023 Jan 21;13(1):1199. doi: 10.1038/s41598-022-26600-5.

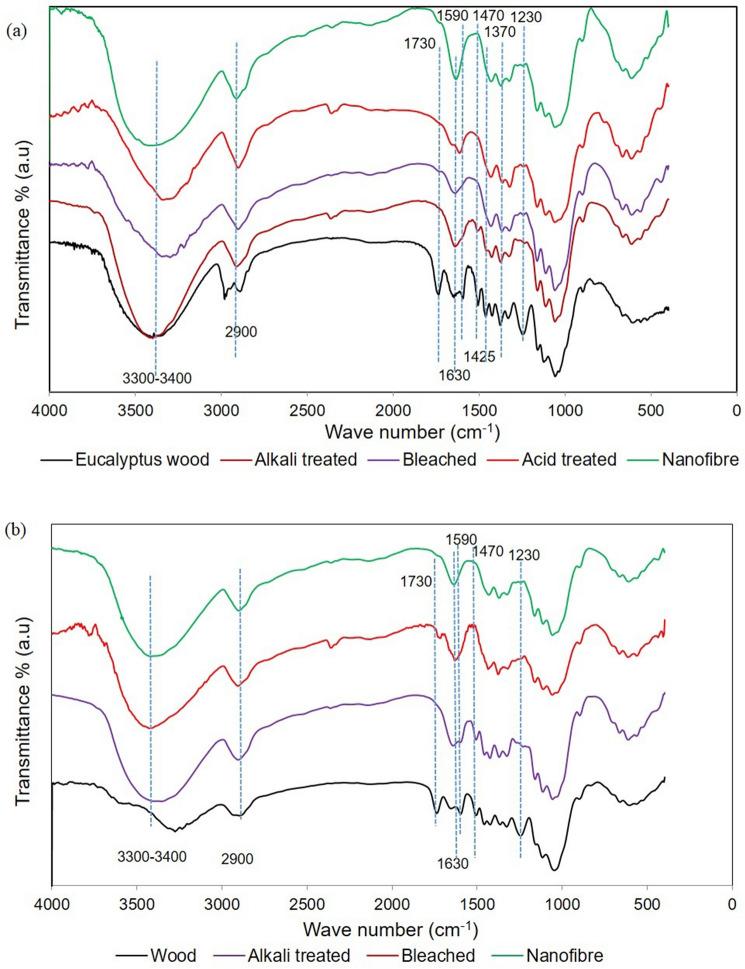

Extraction of nanocellulose is challenging, especially from hardwoods due to its complex chemical structure as well as structural hierarchy. In this study, nanocellulose was isolated from wood pulp of two hardwood species, namely Eucalyptus tereticornis Sm. and Casuarina equisetifolia L. by steam explosion process. Pure cellulose wood pulp was obtained through Kraft pulping process followed by alkaline and bleaching pre-treatments. Isolated nanocellulose was characterized by Scanning Electron Microscopy (SEM), Transmission Electron Microscopy (TEM), Atomic Force Microscopy (AFM), Fourier Transformed Infrared (FTIR) Spectra, Thermogravimetric Analysis (TGA), and X-ray diffraction (XRD) studies. Nanocellulose obtained from both species showed non-significant difference with average diameter of 27.801 nm for eucalyptus and 28.690 nm for casuarina, which was confirmed from TEM and AFM images. FTIR spectra of nanocellulose showed prominent peaks corresponding to cellulose and absence of peaks corresponding to lignin. The elemental purity of nanocellulose was confirmed with EDAX detector. XRD analysis showed the enrichment of crystalline cellulose in nanocellulose, and also confirmed the significant conversion of cellulose I to cellulose II. During TG analysis the untreated fibres started to degrade earlier than the nanocellulose which indicated the higher thermal stability of nanocellulose. Highly entangled network like structure along with high aspect ratio make the nanofibres a versatile material for reinforcing the composites. This successful method can be replicated for industrial level production of cellulose nanofibres.
纳米纤维素的提取具有挑战性,特别是从硬木中提取,因为其化学结构复杂且具有结构层次。在本研究中,通过蒸汽爆破工艺从两种硬木树种即细叶桉(Eucalyptus tereticornis Sm.)和木麻黄(Casuarina equisetifolia L.)的木浆中分离出纳米纤维素。通过硫酸盐制浆工艺,随后进行碱处理和漂白预处理,获得了纯纤维素木浆。通过扫描电子显微镜(SEM)、透射电子显微镜(TEM)、原子力显微镜(AFM)、傅里叶变换红外(FTIR)光谱、热重分析(TGA)和X射线衍射(XRD)研究对分离出的纳米纤维素进行了表征。从这两个树种获得的纳米纤维素显示出无显著差异,细叶桉的平均直径为27.801 nm,木麻黄的平均直径为28.690 nm,这从TEM和AFM图像中得到了证实。纳米纤维素的FTIR光谱显示出对应于纤维素的突出峰,而没有对应于木质素的峰。用能谱仪(EDAX)探测器证实了纳米纤维素的元素纯度。XRD分析表明纳米纤维素中结晶纤维素的富集,并且也证实了纤维素I向纤维素II的显著转化。在热重分析期间,未处理的纤维比纳米纤维素更早开始降解,这表明纳米纤维素具有更高的热稳定性。高度缠结的网络状结构以及高长径比使纳米纤维成为增强复合材料的多功能材料。这种成功的方法可以复制用于纤维素纳米纤维的工业规模生产。
