College of Science, George Mason University , Fairfax, Virginia, USA.
Biology and Biological Engineering and Geological and Planetary Sciences, Caltech , Pasadena, California, USA.
mBio. 2023 Aug 31;14(4):e0070223. doi: 10.1128/mbio.00702-23. Epub 2023 Jun 14.

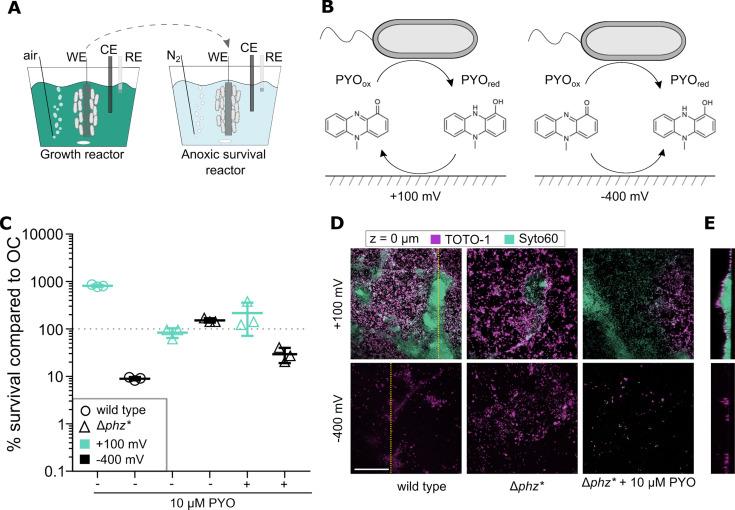

biofilms are common in chronic wound infections and recalcitrant to treatment. Survival of cells within oxygen-limited regions in these biofilms is enabled by extracellular electron transfer (EET), whereby small redox active molecules act as electron shuttles to access distal oxidants. Here, we report that electrochemically controlling the redox state of these electron shuttles, specifically pyocyanin (PYO), can impact cell survival within anaerobic biofilms and can act synergistically with antibiotic treatment. Prior results demonstrated that under anoxic conditions, an electrode poised at sufficiently oxidizing potential (+100 mV vs Ag/AgCl) promotes EET within biofilms by re-oxidizing PYO for reuse by the cells. Here, when a reducing potential (-400 mV vs Ag/AgCl) was used to disrupt PYO redox cycling by maintaining PYO in the reduced state, we observed a 100-fold decrease in colony forming units within these biofilms compared with those exposed to electrodes poised at +100 mV vs Ag/AgCl. Phenazine-deficient Δ* biofilms were unaffected by the potential applied to the electrode but were re-sensitized by adding PYO. The effect at -400 mV was exacerbated when biofilms were treated with sub-MICs of a range of antibiotics. Most notably, addition of the aminoglycoside gentamicin in a reductive environment almost completely eradicated wild-type biofilms but had no effect on the survival of Δ* biofilms in the absence of phenazines. These data suggest that antibiotic treatment combined with the electrochemical disruption of PYO redox cycling, either through the toxicity of accumulated reduced PYO or the disruption of EET, or both, can lead to extensive killing. IMPORTANCE Biofilms provide a protective environment but also present challenges to the cells living within them, such as overcoming nutrient and oxygen diffusion limitations. overcomes oxygen limitation by secreting soluble redox active phenazines, which act as electron shuttles to distal oxygen. Here, we show that electrochemically blocking the re-oxidation of one of these electron shuttles, pyocyanin, decreases cell survival within biofilms and acts synergistically with gentamicin to kill cells. Our results highlight the importance of the role that the redox cycling of electron shuttles fulfills within biofilms.
生物膜在慢性伤口感染中很常见,且难以治疗。这些生物膜中氧气有限区域内的细胞之所以能够存活,是因为细胞外电子转移(EET)的存在,即小分子氧化还原活性物质充当电子穿梭体,以获取远端氧化剂。在这里,我们报告称,电化学控制这些电子穿梭体(特别是绿脓菌素(PYO))的氧化还原状态可影响厌氧生物膜内的细胞存活,并与抗生素治疗协同作用。先前的结果表明,在缺氧条件下,将电极置于足够的氧化电势(+100 mV 相对于 Ag/AgCl)可通过重新氧化 PYO 以重新用于细胞,从而促进生物膜内的 EET。在这里,当使用-400 mV(相对于 Ag/AgCl)的还原电势来通过将 PYO 保持在还原状态来破坏 PYO 的氧化还原循环时,与暴露于+100 mV 相对于 Ag/AgCl 的电极的生物膜相比,观察到这些生物膜中的菌落形成单位减少了 100 倍。缺乏吩嗪的Δ生物膜不受施加到电极的电势影响,但通过添加 PYO 可重新敏感化。当用一系列抗生素的亚 MIC 处理生物膜时,-400 mV 的影响会加剧。值得注意的是,在还原性环境中添加氨基糖苷类抗生素庆大霉素几乎完全根除了野生型生物膜,但在不存在吩嗪的情况下,对Δ生物膜的存活没有影响。这些数据表明,抗生素治疗与电化学破坏 PYO 的氧化还原循环相结合,无论是通过积累的还原 PYO 的毒性还是通过 EET 的破坏,或者两者兼而有之,都可能导致广泛的杀伤。重要性生物膜提供了一个保护性的环境,但也给生活在其中的细胞带来了挑战,例如克服营养和氧气扩散的限制。通过分泌可溶性氧化还原活性吩嗪来克服氧气限制,吩嗪作为电子穿梭体到达远端氧气。在这里,我们表明,电化学阻断其中一种电子穿梭体绿脓菌素(PYO)的再氧化会降低生物膜内的细胞存活率,并与庆大霉素协同作用杀死细胞。我们的研究结果强调了电子穿梭体的氧化还原循环在生物膜中的作用的重要性。
