Cluster of Excellence-Controlling Microbes to Fight Infection, University of Tübingen, Tübingen 72076, Germany.
Institute of Organic Chemistry and Biochemistry of the Czech Academy of Sciences, Flemingovo nám. 2, 160 00 Praha 6, Czech Republic.
Anal Chem. 2023 Aug 29;95(34):12673-12682. doi: 10.1021/acs.analchem.3c01202. Epub 2023 Aug 14.

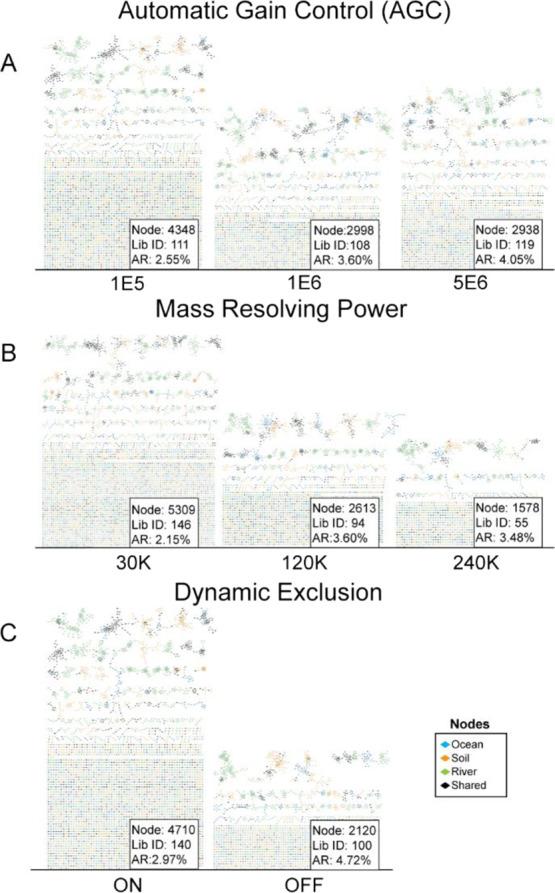

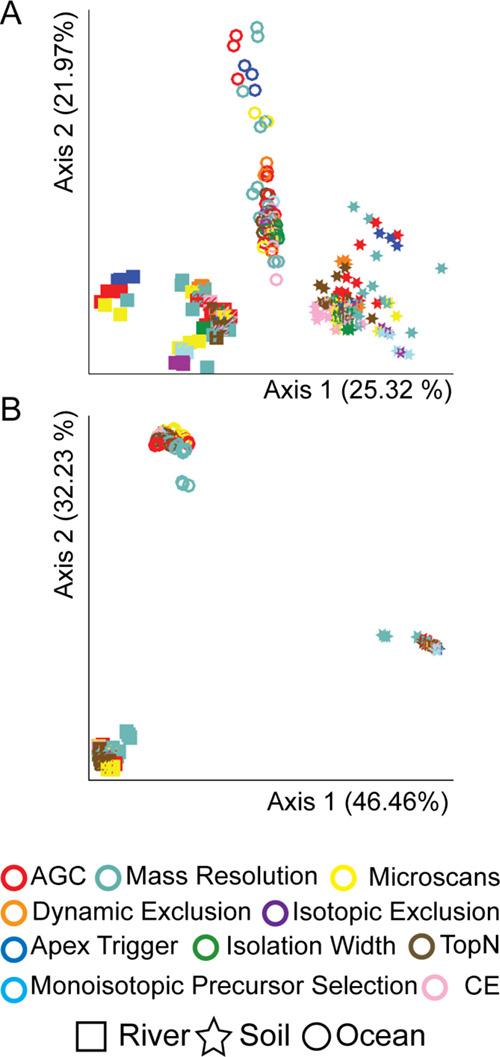

Non-targeted liquid chromatography-tandem mass spectrometry (LC-MS/MS) is a widely used tool for metabolomics analysis, enabling the detection and annotation of small molecules in complex environmental samples. Data-dependent acquisition (DDA) of product ion spectra is thereby currently one of the most frequently applied data acquisition strategies. The optimization of DDA parameters is central to ensuring high spectral quality, coverage, and number of compound annotations. Here, we evaluated the influence of 10 central DDA settings of the Q Exactive mass spectrometer on natural organic matter samples from ocean, river, and soil environments. After data analysis with classical and feature-based molecular networking using MZmine and GNPS, we compared the total number of network nodes, multivariate clustering, and spectrum quality-related metrics such as annotation and singleton rates, MS/MS placement, and coverage. Our results show that , , and are the most critical parameters, whereas , , and had moderate and , , and minor effects. The insights into the data acquisition ergonomics of the Q Exactive platform presented here can guide new users and provide them with initial method parameters, some of which may also be transferable to other sample types and MS platforms.
非靶向液相色谱-串联质谱(LC-MS/MS)是代谢组学分析中广泛使用的工具,能够检测和注释复杂环境样品中的小分子。因此,目前产品离子谱的数据依赖采集(DDA)是最常用的数据采集策略之一。DDA 参数的优化对于确保高质量的谱图、全面的覆盖范围和化合物注释数量至关重要。在这里,我们评估了 Q Exactive 质谱仪的 10 个核心 DDA 设置对海洋、河流和土壤环境中天然有机物样品的影响。在使用 MZmine 和 GNPS 进行经典和基于特征的分子网络分析后,我们比较了网络节点的总数、多变量聚类以及与谱图质量相关的指标,如注释和单峰率、MS/MS 位置和覆盖度。结果表明, 、 和 是最关键的参数,而 、 和 具有中等影响, 、 和 具有较小影响。本研究展示了 Q Exactive 平台数据采集人机工程学的见解,可以为新用户提供初始方法参数,其中一些参数可能也适用于其他样品类型和 MS 平台。
