Rehabilitation Medicine Department, The First Affiliated Hospital of Zhengzhou University, Zhengzhou, Henan, China.
Center of Rehabilitation Engineering Technology Research, Henan Province, Zhengzhou, Henan, China.
PLoS One. 2023 Aug 17;18(8):e0270074. doi: 10.1371/journal.pone.0270074. eCollection 2023.

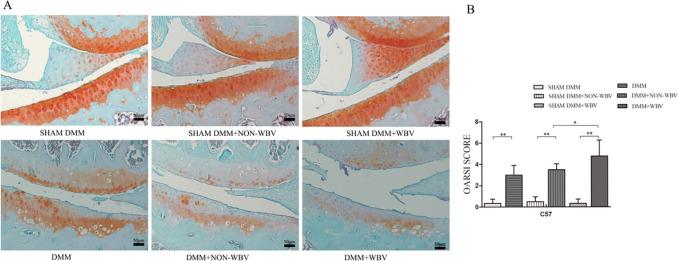

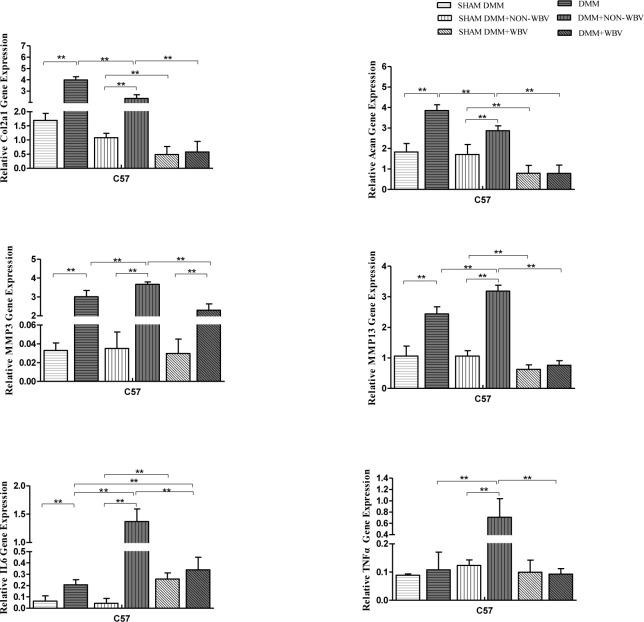

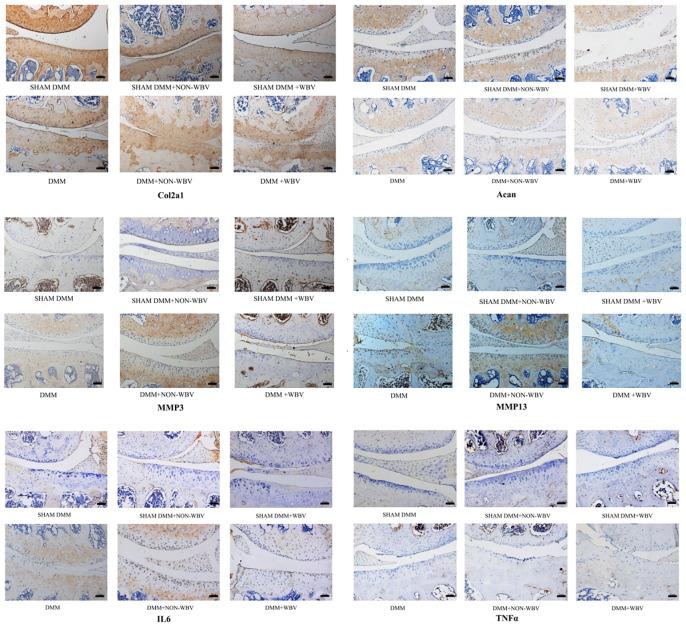

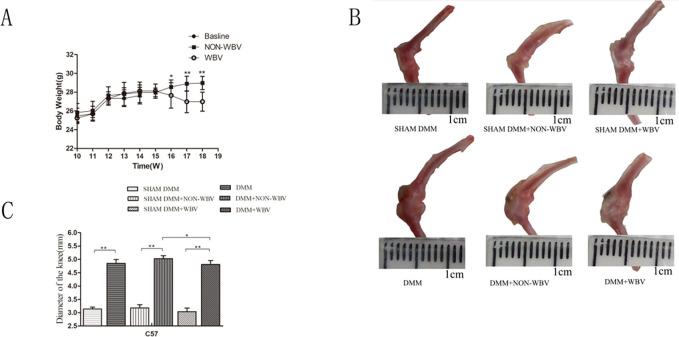

PURPOSES: To evaluate the effects of low frequency whole-body vibration (WBV) on degeneration of articular cartilage and subchondral bone in mice with destabilization of the medial meniscus (DMM)induced osteoarthritis(OA) and mice with normal knee. METHODS: Ten-week-old C57BL/6J male mice received DMM on right knees, while the left knees performed sham operation. There were six groups: DMM, SHAM DMM, DMM+WBV,SHAM DMM+WBV, DMM+ NON-WBV and SHAM DMM+NON-WBV. After four weeks, the knees were harvested from the DMM and SHAM DMM group. The remaining groups were treated with WBV (10 Hz) or NON-WBV. Four weeks later, the knees were harvested. Genes, containing Aggrecan(Acan) and CollagenⅡ(Col2a1), Matrix Metalloproteinases 3 and 13(MMP3,13), TNFα and IL6, were measured and staining was also performed. OA was graded with OARSI scores, and tibial plateaubone volume to tissue volume ratio(BV/TV), bone surface area to bone volume ratio (BS/BV), trabecular number(Tb.N) and trabecular thickness separation(TS) between groups were analyzed. RESULTS: Increased OARSI scores and cartilage degradation were observed after WBV. BV/TV, Tb.N and TS were not significant between the groups. Significant reductions were observed in MMP3, MMP13, Col2a1, Acan, TNFα and IL6 in the DMM+WBV compared to SHAM DMM+WBV group. BV/TV, BS/BV, Tb.N, TS and OARSI scores were not significantly changed in the left knees. IL6 expression in the SHAM DMM+WBV group was significantly increased compared with the SHAM DMM+ NON-WBV group, while Col2a1, Acan and MMP13 expression decreased. CONCLUSION: WBV accelerated cartilage degeneration and caused slight changes in subchondral bone in a DMM-induced OA model. WBV had no morphologic effect on normal joints.
目的:评估低频全身振动(WBV)对内侧半月板不稳定(DMM)诱导的骨关节炎(OA)和正常膝关节小鼠关节软骨和软骨下骨退变的影响。
方法:10 周龄 C57BL/6J 雄性小鼠右膝关节接受 DMM,左膝关节行假手术。共分为 6 组:DMM、SHAM DMM、DMM+WBV、SHAM DMM+WBV、DMM+NON-WBV 和 SHAM DMM+NON-WBV。4 周后,从 DMM 和 SHAM DMM 组取膝关节。其余各组接受 WBV(10 Hz)或 NON-WBV 治疗。4 周后,取膝关节。测量软骨蛋白聚糖(Acan)和Ⅱ型胶原(Col2a1)、基质金属蛋白酶 3 和 13(MMP3、13)、TNFα 和 IL6 等基因的表达,并进行染色。采用 OARSI 评分对 OA 进行分级,并分析各组胫骨平台骨体积与组织体积比(BV/TV)、骨表面积与骨体积比(BS/BV)、骨小梁数(Tb.N)和骨小梁厚度分离(TS)。
结果:WBV 后 OARSI 评分增加,软骨降解。各组间 BV/TV、Tb.N 和 TS 无显著差异。与 SHAM DMM+WBV 组相比,DMM+WBV 组 MMP3、MMP13、Col2a1、Acan、TNFα 和 IL6 表达显著降低。左膝关节 BV/TV、BS/BV、Tb.N、TS 和 OARSI 评分无明显变化。SHAM DMM+WBV 组 IL6 表达明显高于 SHAM DMM+NON-WBV 组,而 Col2a1、Acan 和 MMP13 表达降低。
结论:WBV 加速软骨退变,对 DMM 诱导的 OA 模型软骨下骨造成轻微改变。WBV 对正常关节无形态学影响。
