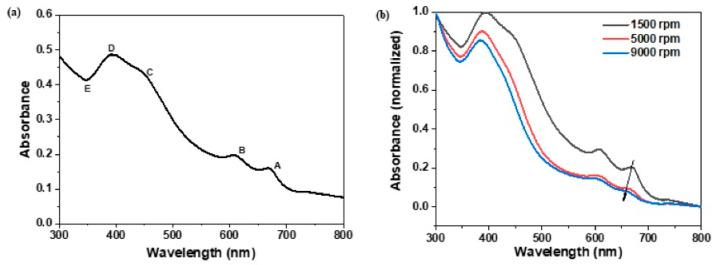

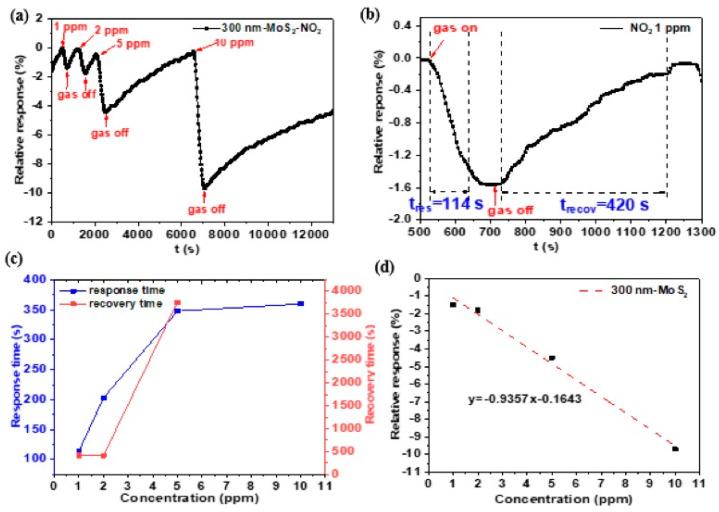

2D materials possess great potential to serve as gas-sensing materials due to their large, specific surface areas and strong surface activities. Among this family, transition metal chalcogenide materials exhibit different properties and are promising candidates for a wide range of applications, including sensors, photodetectors, energy conversion, and energy storage. Herein, a high-shear mixing method has been used to produce multilayered MoS nanosheet dispersions. MoS thin films were manufactured by vacuum-assisted filtration. The structural morphology of MoS was studied using ς-potential, UV-visible, scanning electron microscopy (SEM), atomic force microscopy (AFM), energy-dispersive X-ray spectroscopy (EDX), transmission electron microscopy (TEM), X-ray diffraction (XRD), and Raman spectroscopy (RS). The spectroscopic and microscopic analyses confirm the formation of a high-crystalline MoS thin film with good inter-sheet connectivity and relative thickness uniformity. The thickness of the MoS layer is measured to be approximately 250 nm, with a nanosheet size of 120 nm ± 40 nm and a number of layers between 6 and 9 layers. Moreover, the electrical characteristics clearly showed that the MoS thin film exhibits good conductivity and a linear I-V curve response, indicating good ohmic contact between the MoS film and the electrodes. As an example of applicability, we fabricated chemiresistive sensor devices with a MoS film as a sensing layer. The performance of the MoS-chemiresistive sensor for NO was assessed by being exposed to different concentrations of NO (1 ppm to 10 ppm). This sensor shows a sensibility to low concentrations of 1 ppm, with a response time of 114 s and a recovery time of 420 s. The effect of thin-film thickness and operating temperatures on sensor response was studied. The results show that thinner film exhibits a higher response to NO; the response decreases as the working temperature increases.
二维材料因其大的比表面积和强的表面活性而具有作为气敏材料的巨大潜力。在这个材料家族中,过渡金属硫族化物材料表现出不同的特性,是包括传感器、光电探测器、能量转换和能量存储等广泛应用的有前途的候选材料。在此,采用高剪切混合方法制备了多层MoS纳米片分散体。通过真空辅助过滤制备了MoS薄膜。使用ζ电位、紫外可见光谱、扫描电子显微镜(SEM)、原子力显微镜(AFM)、能量色散X射线光谱(EDX)、透射电子显微镜(TEM)、X射线衍射(XRD)和拉曼光谱(RS)研究了MoS的结构形态。光谱和显微镜分析证实形成了具有良好层间连通性和相对厚度均匀性的高结晶MoS薄膜。测量得到MoS层的厚度约为250nm,纳米片尺寸为120nm±40nm,层数在6至9层之间。此外,电学特性清楚地表明MoS薄膜表现出良好的导电性和线性I-V曲线响应,表明MoS薄膜与电极之间具有良好的欧姆接触。作为适用性的一个例子,我们制备了以MoS薄膜作为传感层的化学电阻式传感器器件。通过暴露于不同浓度的NO(1ppm至10ppm)来评估MoS化学电阻式传感器对NO的性能。该传感器对1ppm的低浓度表现出灵敏度,响应时间为114s,恢复时间为420s。研究了薄膜厚度和工作温度对传感器响应的影响。结果表明,较薄的薄膜对NO表现出更高的响应;响应随着工作温度的升高而降低。
