通过控制金属卤化物钙钛矿壳层厚度提高硫化铅量子点敏化太阳能电池的性能

Enhanced performance of lead sulfide quantum dot-sensitized solar cells by controlling the thickness of metal halide perovskite shells.

作者信息

Seo Gabseok, Kim Shinhyun, Choi Hyunseok, Kim Min-Cheol

机构信息

Frontier Energy Solution Corporation, Seoul National University, Seoul 08826, Republic of Korea.

School of Mechanical Engineering, Pusan National University, Busan 46241, South Korea.

出版信息

Heliyon. 2023 Sep 19;9(10):e20276. doi: 10.1016/j.heliyon.2023.e20276. eCollection 2023 Oct.

Abstract

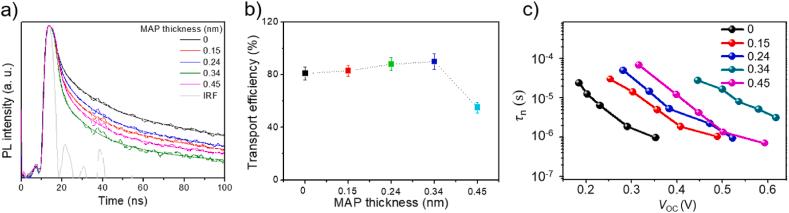

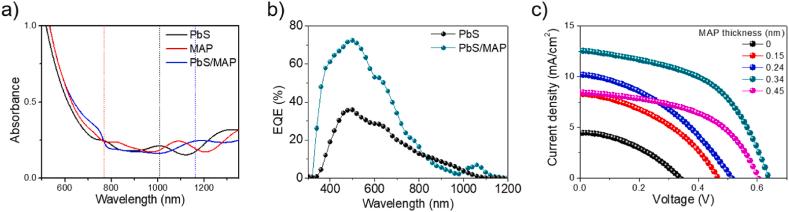

The metal halide perovskite CHNHPbI (MAP) can be applied as the shell layer of lead sulfide quantum dots (PbS QDs) for improving solar power conversion efficiency. However, basic physics for this PbS core/MAP shell QD system is still unclear and needs to be clarified to further improve efficiency. Therefore, in this study, we investigate how MAP shell thickness affects device performance and dynamics of charge carriers for PbS QD-sensitized solar cells. Covering the PbS QDs with the MAP shell layers of an appropriate thickness around 0.34 nm greatly suppresses charge carrier recombination at surface defects along with improved carrier transport to neighboring oxide and polymer layers. Therefore, this MAP shell thickness provides the highest open-circuit voltage, short-circuit current density, and fill factor for solar cells. Overall power conversion efficiencies of these solar cells reached about 4.1%, which is about six-fold higher than that for solar cells without MAP (about 0.7%). Additionally, use of the MAP shell layers can prevent oxidation of PbS QDs and, therefore, makes a degradation of solar cell performance slower in air.

摘要

金属卤化物钙钛矿CHNHPbI(MAP)可作为硫化铅量子点(PbS QDs)的壳层,用于提高太阳能转换效率。然而,这种PbS核/MAP壳量子点体系的基本物理原理仍不明确,需要进一步阐明以提高效率。因此,在本研究中,我们研究了MAP壳层厚度如何影响PbS量子点敏化太阳能电池的器件性能和电荷载流子动力学。用厚度约为0.34nm的合适MAP壳层覆盖PbS量子点,可极大地抑制表面缺陷处的电荷载流子复合,并改善载流子向相邻氧化物和聚合物层的传输。因此,这种MAP壳层厚度为太阳能电池提供了最高的开路电压、短路电流密度和填充因子。这些太阳能电池的整体功率转换效率达到约4.1%,比没有MAP的太阳能电池(约0.7%)高出约六倍。此外,使用MAP壳层可以防止PbS量子点氧化,因此,可使太阳能电池性能在空气中的降解速度变慢。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/38dd/10520828/bbe176d312d0/ga1.jpg
