用于桑叶病害自动分类的可解释深度学习模型。
Explainable deep learning model for automatic mulberry leaf disease classification.
作者信息
Nahiduzzaman Md, Chowdhury Muhammad E H, Salam Abdus, Nahid Emama, Ahmed Faruque, Al-Emadi Nasser, Ayari Mohamed Arselene, Khandakar Amith, Haider Julfikar
机构信息
Department of Electrical & Computer Engineering, Rajshahi University of Engineering & Technology, Rajshahi, Bangladesh.
Department of Electrical Engineering, Qatar University, Doha, Qatar.
出版信息
Front Plant Sci. 2023 Sep 19;14:1175515. doi: 10.3389/fpls.2023.1175515. eCollection 2023.

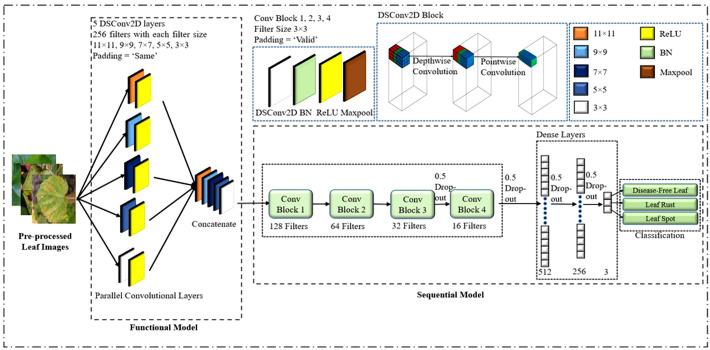

Mulberry leaves feed Bombyx mori silkworms to generate silk thread. Diseases that affect mulberry leaves have reduced crop and silk yields in sericulture, which produces 90% of the world's raw silk. Manual leaf disease identification is tedious and error-prone. Computer vision can categorize leaf diseases early and overcome the challenges of manual identification. No mulberry leaf deep learning (DL) models have been reported. Therefore, in this study, two types of leaf diseases: leaf rust and leaf spot, with disease-free leaves, were collected from two regions of Bangladesh. Sericulture experts annotated the leaf images. The images were pre-processed, and 6,000 synthetic images were generated using typical image augmentation methods from the original 764 training images. Additional 218 and 109 images were employed for testing and validation respectively. In addition, a unique lightweight parallel depth-wise separable CNN model, PDS-CNN was developed by applying depth-wise separable convolutional layers to reduce parameters, layers, and size while boosting classification performance. Finally, the explainable capability of PDS-CNN is obtained through the use of SHapley Additive exPlanations (SHAP) evaluated by a sericulture specialist. The proposed PDS-CNN outperforms well-known deep transfer learning models, achieving an optimistic accuracy of 95.05 ± 2.86% for three-class classifications and 96.06 ± 3.01% for binary classifications with only 0.53 million parameters, 8 layers, and a size of 6.3 megabytes. Furthermore, when compared with other well-known transfer models, the proposed model identified mulberry leaf diseases with higher accuracy, fewer factors, fewer layers, and lower overall size. The visually expressive SHAP explanation images validate the models' findings aligning with the predictions made the sericulture specialist. Based on these findings, it is possible to conclude that the explainable AI (XAI)-based PDS-CNN can provide sericulture specialists with an effective tool for accurately categorizing mulberry leaves.

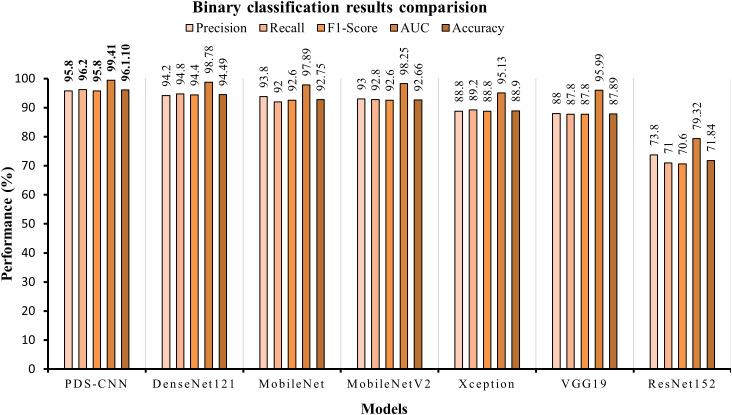

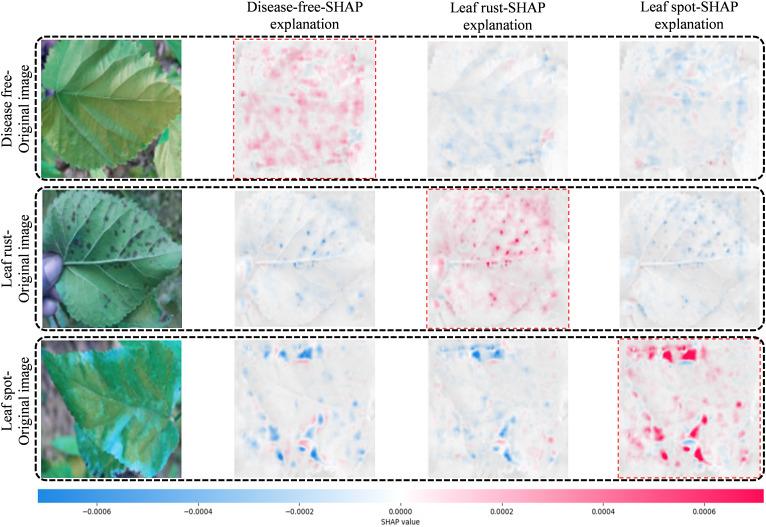

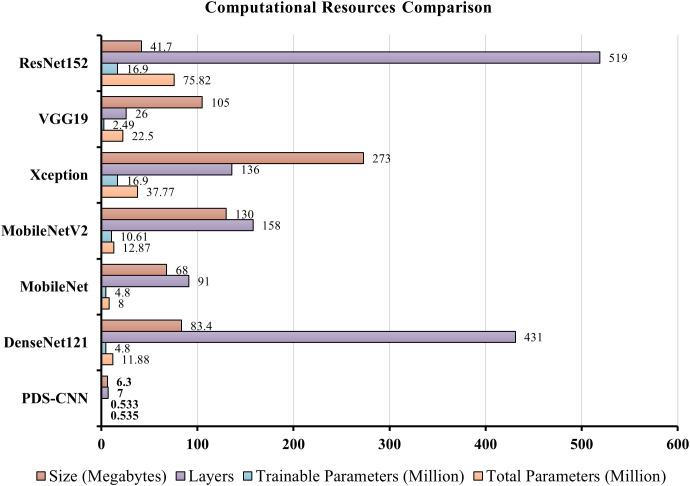

桑叶喂养家蚕以生产丝线。影响桑叶的疾病已导致养蚕业的作物产量和丝绸产量下降,而全球90%的生丝都产自养蚕业。人工识别叶片病害既繁琐又容易出错。计算机视觉可以早期对叶片病害进行分类,并克服人工识别的挑战。目前尚未有关于桑叶深度学习(DL)模型的报道。因此,在本研究中,从孟加拉国的两个地区收集了两种类型的叶片病害:叶锈病和叶斑病以及无病叶片。养蚕专家对叶片图像进行了标注。对图像进行了预处理,并使用典型的图像增强方法从原始的764张训练图像中生成了6000张合成图像。另外分别使用218张和109张图像进行测试和验证。此外,通过应用深度可分离卷积层开发了一种独特的轻量级并行深度可分离卷积神经网络模型PDS-CNN,以减少参数、层数和规模,同时提高分类性能。最后,通过养蚕专家评估的SHapley加性解释(SHAP)获得了PDS-CNN的可解释能力。所提出的PDS-CNN优于著名的深度迁移学习模型,对于三类分类达到了95.05±2.86%的乐观准确率,对于二类分类达到了96.06±3.01%的乐观准确率,且仅具有53万个参数、8层和6.3兆字节的规模。此外,与其他著名的迁移模型相比,所提出的模型以更高的准确率、更少的因子、更少的层数和更小的整体规模识别桑叶病害。直观的SHAP解释图像验证了模型的发现与养蚕专家的预测一致。基于这些发现,可以得出结论,基于可解释人工智能(XAI)的PDS-CNN可以为养蚕专家提供一个准确分类桑叶的有效工具。
