Deep Learning Methods in Medical Image-Based Hepatocellular Carcinoma Diagnosis: A Systematic Review and Meta-Analysis.

作者信息

Wei Qiuxia, Tan Nengren, Xiong Shiyu, Luo Wanrong, Xia Haiying, Luo Baoming

机构信息

Department of Ultrasound, Sun Yat-sen Memorial Hospital, Sun Yat-sen University, 107 West Yanjiang Road, Guangzhou 510120, China.

Guangdong Provincial Key Laboratory of Malignant Tumor Epigenetics and Gene Regulation, Sun Yat-sen Memorial Hospital, Sun Yat-sen University, 107 West Yanjiang Road, Guangzhou 510120, China.

出版信息

Cancers (Basel). 2023 Dec 3;15(23):5701. doi: 10.3390/cancers15235701.


DOI:10.3390/cancers15235701
PMID:38067404
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC10705136/
Abstract

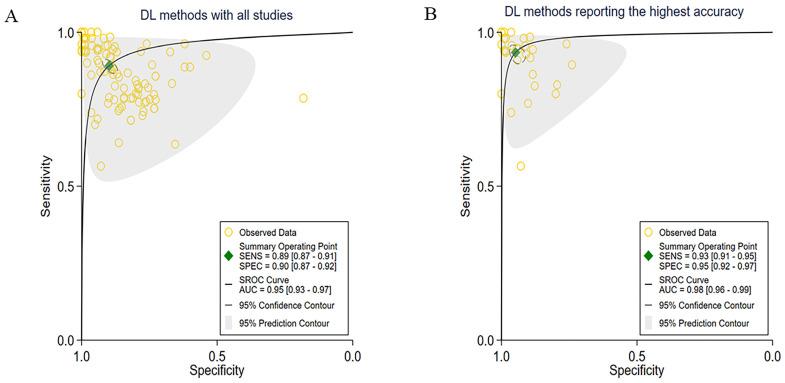

(1) Background: The aim of our research was to systematically review papers specifically focused on the hepatocellular carcinoma (HCC) diagnostic performance of DL methods based on medical images. (2) Materials: To identify related studies, a comprehensive search was conducted in prominent databases, including Embase, IEEE, PubMed, Web of Science, and the Cochrane Library. The search was limited to studies published before 3 July 2023. The inclusion criteria consisted of studies that either developed or utilized DL methods to diagnose HCC using medical images. To extract data, binary information on diagnostic accuracy was collected to determine the outcomes of interest, namely, the sensitivity, specificity, and area under the curve (AUC). (3) Results: Among the forty-eight initially identified eligible studies, thirty studies were included in the meta-analysis. The pooled sensitivity was 89% (95% CI: 87-91), the specificity was 90% (95% CI: 87-92), and the AUC was 0.95 (95% CI: 0.93-0.97). Analyses of subgroups based on medical image methods (contrast-enhanced and non-contrast-enhanced images), imaging modalities (ultrasound, magnetic resonance imaging, and computed tomography), and comparisons between DL methods and clinicians consistently showed the acceptable diagnostic performance of DL models. The publication bias and high heterogeneity observed between studies and subgroups can potentially result in an overestimation of the diagnostic accuracy of DL methods in medical imaging. (4) Conclusions: To improve future studies, it would be advantageous to establish more rigorous reporting standards that specifically address the challenges associated with DL research in this particular field.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/5366181dd059/cancers-15-05701-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/9bafcd677e0c/cancers-15-05701-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/2117eed1c217/cancers-15-05701-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/bb5194fbd435/cancers-15-05701-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/6815395eea71/cancers-15-05701-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/d2743fdeea7b/cancers-15-05701-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/5366181dd059/cancers-15-05701-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/9bafcd677e0c/cancers-15-05701-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/2117eed1c217/cancers-15-05701-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/bb5194fbd435/cancers-15-05701-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/6815395eea71/cancers-15-05701-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/d2743fdeea7b/cancers-15-05701-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/af68/10705136/5366181dd059/cancers-15-05701-g006.jpg
