Evaluation of an English language phoneme-based imagined speech brain computer interface with low-cost electroencephalography.

INTRODUCTION

Paralyzed and physically impaired patients face communication difficulties, even when they are mentally coherent and aware. Electroencephalographic (EEG) brain-computer interfaces (BCIs) offer a potential communication method for these people without invasive surgery or physical device controls.

METHODS

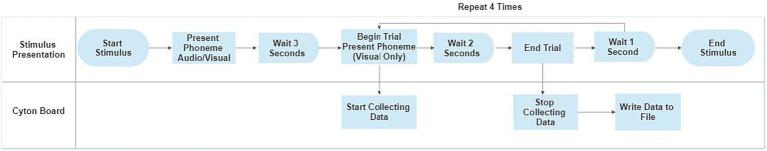

Although virtual keyboard protocols are well documented in EEG BCI paradigms, these implementations are visually taxing and fatiguing. All English words combine 44 unique phonemes, each corresponding to a unique EEG pattern. In this study, a complete phoneme-based imagined speech EEG BCI was developed and tested on 16 subjects.

RESULTS

Using open-source hardware and software, machine learning models, such as k-nearest neighbor (KNN), reliably achieved a mean accuracy of 97 ± 0.001%, a mean F1 of 0.55 ± 0.01, and a mean AUC-ROC of 0.68 ± 0.002 in a modified one-versus-rest configuration, resulting in an information transfer rate of 304.15 bits per minute. In line with prior literature, the distinguishing feature between phonemes was the gamma power on channels F3 and F7.

DISCUSSION

However, adjustments to feature selection, trial window length, and classifier algorithms may improve performance. In summary, these are iterative changes to a viable method directly deployable in current, commercially available systems and software. The development of an intuitive phoneme-based EEG BCI with open-source hardware and software demonstrates the potential ease with which the technology could be deployed in real-world applications.
