Cheng Xu, Shen Zhangming, Zhang Yihui
Applied Mechanics Laboratory, Department of Engineering Mechanics, Tsinghua University, Beijing 100084, China.
Laboratory of Flexible Electronics Technology, Tsinghua University, Beijing 100084, China.
Natl Sci Rev. 2023 Dec 13;11(3):nwad314. doi: 10.1093/nsr/nwad314. eCollection 2024 Mar.

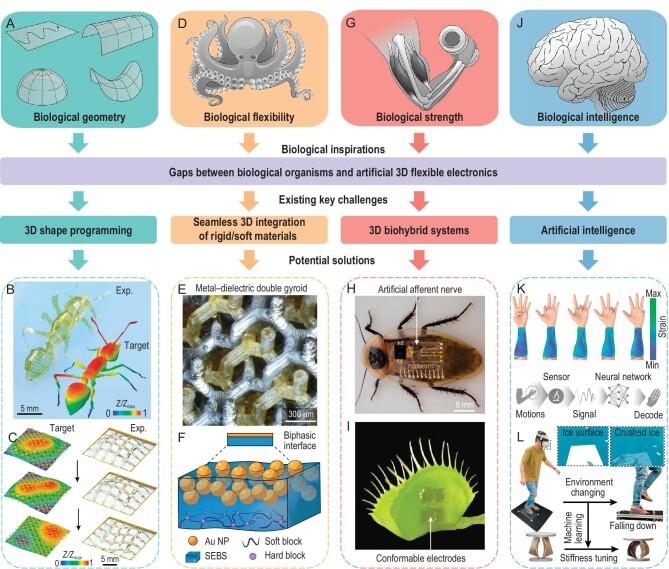

Flexible devices and functional systems with elaborated three-dimensional (3D) architectures can endow better mechanical/electrical performances, more design freedom, and unique functionalities, when compared to their two-dimensional (2D) counterparts. Such 3D flexible devices/systems are rapidly evolving in three primary directions, including the miniaturization, the increasingly merged physical/artificial intelligence and the enhanced adaptability and capabilities of heterogeneous integration. Intractable challenges exist in this emerging research area, such as relatively poor controllability in the locomotion of soft robotic systems, mismatch of bioelectronic interfaces, and signal coupling in multi-parameter sensing. By virtue of long-time-optimized materials, structures and processes, natural organisms provide rich sources of inspiration to address these challenges, enabling the design and manufacture of many bioinspired 3D flexible devices/systems. In this Review, we focus on bioinspired 3D flexible devices and functional systems, and summarize their representative design concepts, manufacturing methods, principles of structure-function relationship and broad-ranging applications. Discussions on existing challenges, potential solutions and future opportunities are also provided to usher in further research efforts toward realizing bioinspired 3D flexible devices/systems with precisely programmed shapes, enhanced mechanical/electrical performances, and high-level physical/artificial intelligence.
与二维(2D)同类产品相比,具有精细三维(3D)架构的柔性器件和功能系统能够赋予更好的机械/电气性能、更大的设计自由度和独特的功能。此类3D柔性器件/系统正沿着三个主要方向迅速发展,包括小型化、物理/人工智能的日益融合以及异构集成的适应性和能力增强。在这个新兴的研究领域存在着棘手的挑战,例如软机器人系统运动中的可控性相对较差、生物电子接口不匹配以及多参数传感中的信号耦合。凭借经过长期优化的材料、结构和工艺,天然生物体为应对这些挑战提供了丰富的灵感来源,从而能够设计和制造许多受生物启发的3D柔性器件/系统。在本综述中,我们聚焦于受生物启发的3D柔性器件和功能系统,并总结它们的代表性设计概念、制造方法、结构-功能关系原理以及广泛的应用。还对现有挑战、潜在解决方案和未来机遇进行了讨论,以推动进一步的研究工作,实现具有精确编程形状、增强的机械/电气性能以及高级物理/人工智能的受生物启发的3D柔性器件/系统。
