Anatomical Pelvic Parameters Using the Anterior Pelvic Plane: Normative Values and Estimation of the Standing Sagittal Alignment in Healthy Volunteers.

INTRODUCTION

In this study, we aim to estimate the natural standing sagittal alignment in patients with adult spinal deformity (ASD), firstly by investigating the normative values of anatomical pelvic parameters based on the anterior pelvic plane (APP) in a healthy population, and to clarify the relationships between the anatomical and positional pelvic parameters in standing position.

METHODS

The images of biplanar slot-scanning full-body stereoradiography in 140 healthy Japanese volunteers (mean age, 39.5 years; 59.3% female) were examined. In addition to three-dimensional measurements including pelvic incidence (PI), sacral slope (SS), and pelvic tilt (PT), the APP angle (APPA; anterior tilting=positive) was measured as the angle between the APP and the vertical line using the two-dimensional lateral image. Anatomical SS and PT (aSS and aPT) were calculated as the angles of SS and PT in reference to APP.

RESULTS

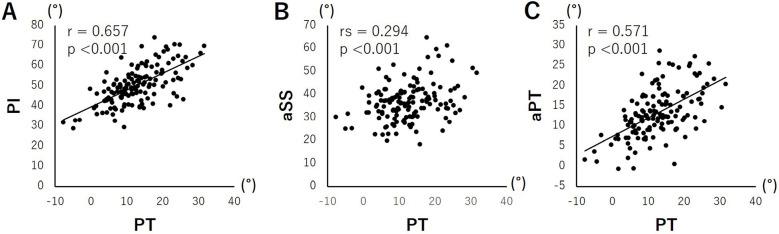

The mean (range) values of APPA, aSS, and aPT were determined to be 0.7° (-16.8°/15.5°), 36.8° (18.3°/64.9°), and 13.2° (-0.6°/28.7°), respectively. Moreover, SS was found to be significantly correlated with PI and aSS, while PT was significantly correlated with PI, aSS, aPT, and body weight. Also, PT was significantly larger in females than in males. Multiple linear regression analysis deduced the following equations: SS=0.404×aSS+0.203×PI+12.463, PT=-0.391×aSS+0.774×PI+1.950×sex (male=0, female=1)-12.971, wherein aSS had the greatest effect for predicting SS among the included factors and PI had the greatest effect for predicting PT. In addition, no significant differences were noted between PT/PI and aPT/PI.

CONCLUSIONS

As per the results of this study, significant correlations were noted among parameters and predicting models for positional parameters (SS and PT) using anatomical parameters (aSS and aPT) in a healthy population. This novel measurement concept based on the APP has been considered to be useful in estimating natural SS and PT in standing position using the anatomical pelvic parameters in patients with ASD.
