光刻胶中六氟异丙醇提升的卓越光刻灵敏度。

Exceptional Lithography Sensitivity Boosted by Hexafluoroisopropanols in Photoresists.

作者信息

Liu Junjun, Wang Dong, Li Yitan, Wang Haihua, Chen Huan, Wang Qianqian, Kang Wenbing

机构信息

National Engineering Research Center for Colloidal Materials, School of Chemistry and Chemical Engineering, Shandong University, Jinan 250100, China.

出版信息

Polymers (Basel). 2024 Mar 15;16(6):825. doi: 10.3390/polym16060825.

Abstract

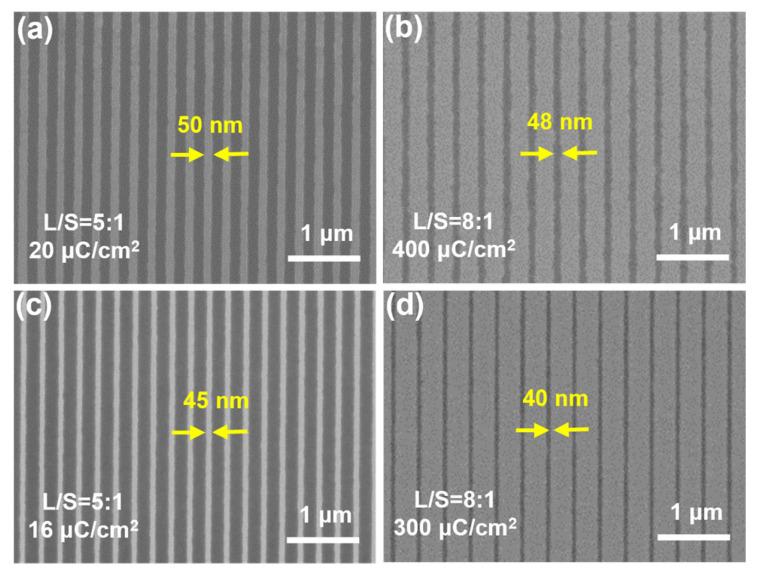

Advanced lithography requires highly sensitive photoresists to improve the lithographic efficiency, and it is critical, yet challenging, to develop high-sensitivity photoresists and imaging strategies. Here, we report a novel strategy for ultra-high sensitivity using hexafluoroisopropanol (HFIP)-containing fluoropolymer photoresists. The incorporation of HFIP, with its strong electrophilic property and the electron-withdrawing effect of the fluorine atoms, significantly increases the acidity of the photoresist after exposure, enabling imaging without conventional photoacid generators (PAGs). The HFIP-containing photoresist has been evaluated by electron beam lithography to achieve a trench of ~40 nm at an extremely low dose of 3 μC/cm, which shows a sensitivity enhancement of ~10 times compared to the commercial system involving PAGs, revealing its high sensitivity and high-resolution features. Our results demonstrate a new type of PAGs and a novel approach to higher-performance imaging beyond conventional photoresist performance tuning.

摘要

先进光刻技术需要高灵敏度光刻胶来提高光刻效率,而开发高灵敏度光刻胶和成像策略至关重要但具有挑战性。在此,我们报告了一种使用含六氟异丙醇(HFIP)的含氟聚合物光刻胶实现超高灵敏度的新策略。HFIP的引入,凭借其强亲电性质和氟原子的吸电子效应,显著提高了曝光后光刻胶的酸度,从而无需传统光酸产生剂(PAG)即可成像。含HFIP的光刻胶已通过电子束光刻进行评估,在极低剂量3 μC/cm下实现了约40 nm的沟槽,与涉及PAG的商业系统相比,灵敏度提高了约10倍,展现出其高灵敏度和高分辨率特性。我们的结果证明了一种新型的PAG以及一种超越传统光刻胶性能调整的高性能成像新方法。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2737/10974190/0cdeb2438c2e/polymers-16-00825-sch001.jpg
