用于高频电流检测的厚度剪切模式磁电传感器。

Magnetoelectric Sensor Operating in Thickness-Shear Mode for High-Frequency Current Detection.

作者信息

Li Fuchao, Wu Jingen, Liu Sujie, Gao Jieqiang, Lin Bomin, Mo Jintao, Qiao Jiacheng, Xu Yiwei, Du Yongjun, He Xin, Zhou Yifei, Zeng Lan, Hu Zhongqiang, Liu Ming

机构信息

State Grid Sichuan Electric Power Company, Chengdu 610041, China.

Department of Electrical Engineering, Tsinghua University, Beijing 100084, China.

出版信息

Sensors (Basel). 2024 Apr 9;24(8):2396. doi: 10.3390/s24082396.

DOI:10.3390/s24082396
PMID:38676013
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11054897/
Abstract

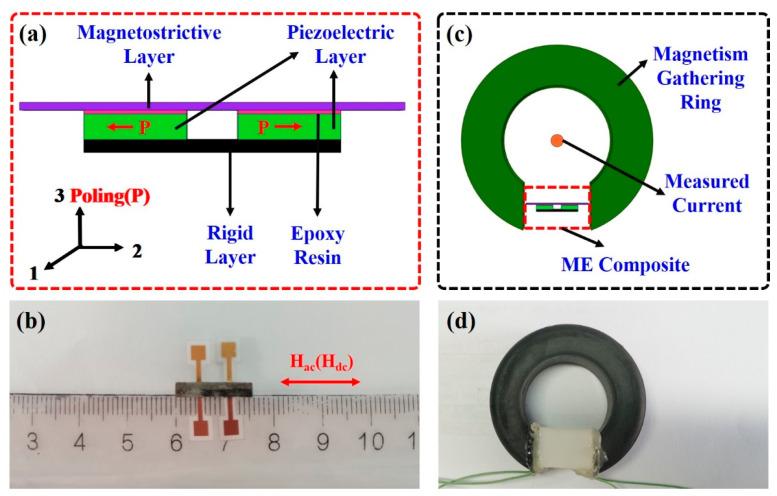

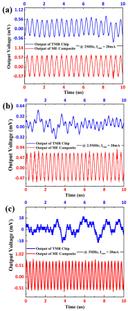

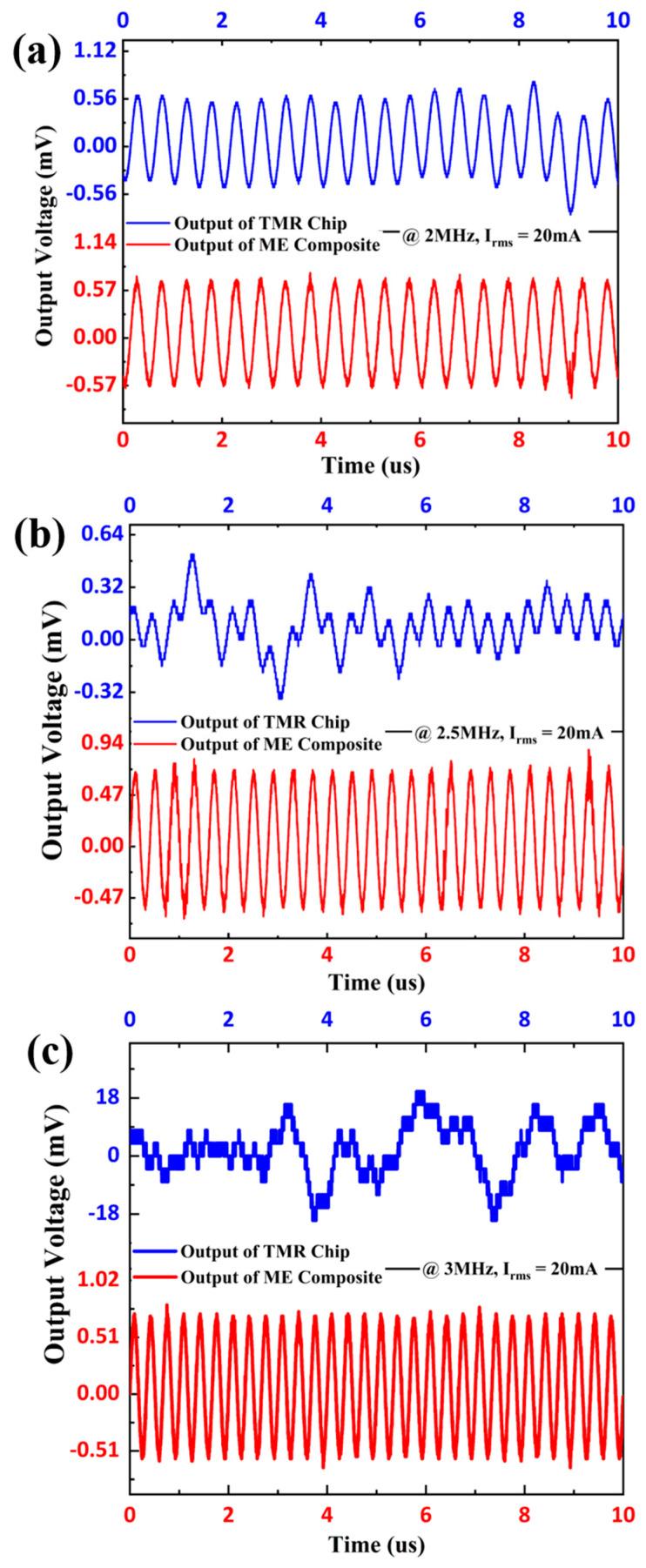

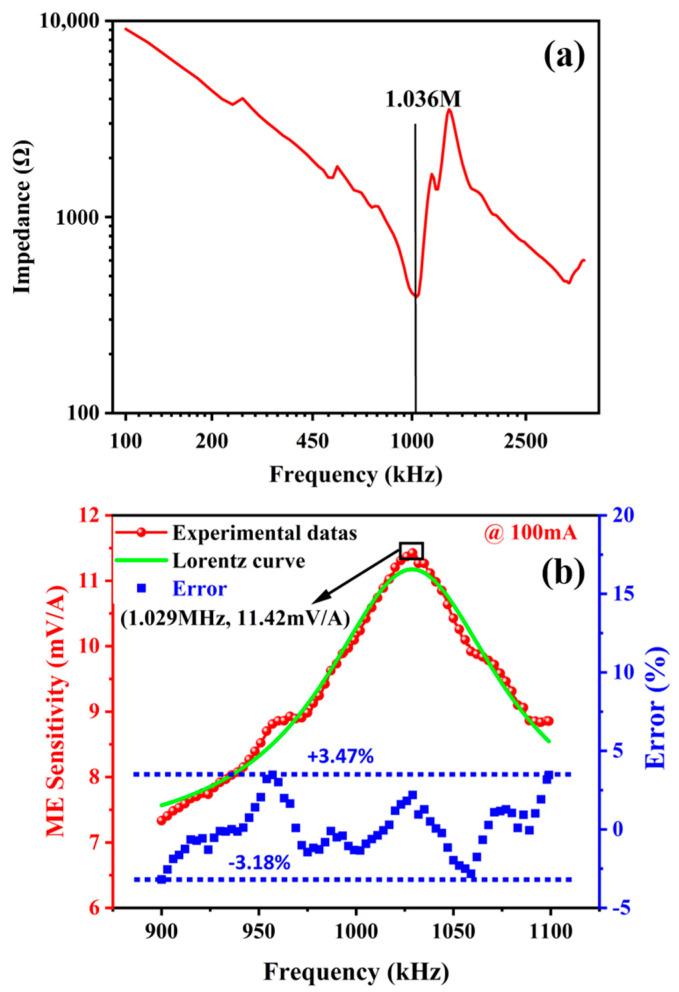

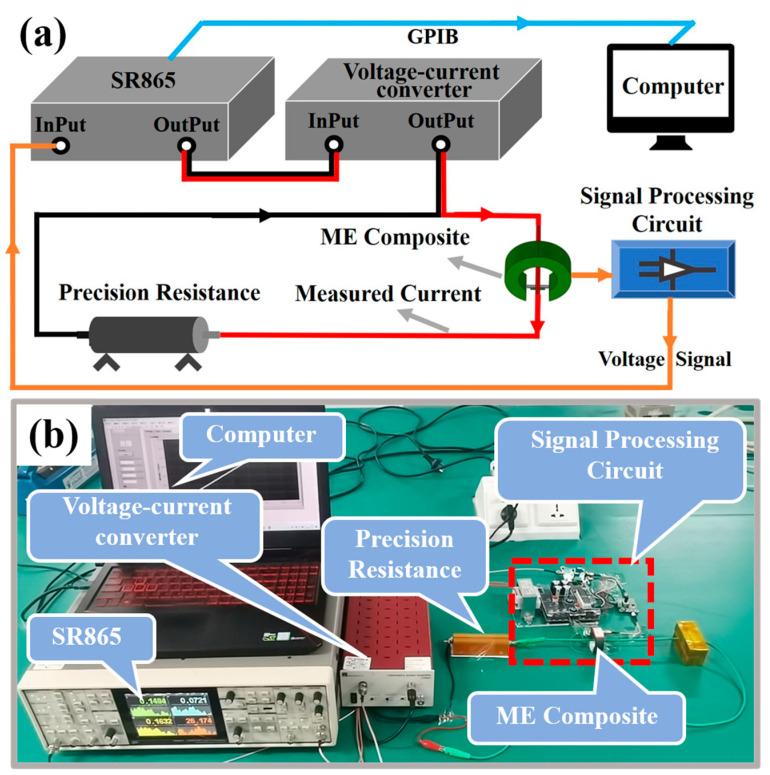

For the application of high-frequency current detection in power systems, such as very fast transient current, lightning current, partial discharge pulse current, etc., current sensors with a quick response are indispensable. Here, we propose a high-frequency magnetoelectric current sensor, which consists of a PZT piezoelectric ceramic and Metglas amorphous alloy. The proposed sensor is designed to work under thickness-shear mode, with the resonant frequency around 1.029 MHz. Furthermore, the proposed sensor is fabricated as a high-frequency magnetoelectric current sensor. A comparative experiment is carried out between the tunnel magnetoresistance sensor and the magnetoelectric sensor, in the aspect of high-frequency current detection up to 3 MHz. Our experimental results demonstrate that the thickness-shear mode magnetoelectric sensor has great potential for high-frequency current detection in smart grids.

摘要

对于高频电流检测在电力系统中的应用，如极快速瞬态电流、雷电流、局部放电脉冲电流等，具有快速响应的电流传感器是不可或缺的。在此，我们提出一种高频磁电电流传感器，它由PZT压电陶瓷和美特格拉斯非晶合金组成。所提出的传感器设计为在厚度剪切模式下工作，谐振频率约为1.029MHz。此外，所提出的传感器被制作为高频磁电电流传感器。在高达3MHz的高频电流检测方面，对隧道磁电阻传感器和磁电传感器进行了对比实验。我们的实验结果表明，厚度剪切模式磁电传感器在智能电网的高频电流检测中具有巨大潜力。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/b4d4fc81b822/sensors-24-02396-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/fc519c685ac5/sensors-24-02396-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/988c25b43c86/sensors-24-02396-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/ba8824137e2e/sensors-24-02396-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/656f88b9d9f1/sensors-24-02396-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/4d459eed2869/sensors-24-02396-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/a945a7de5633/sensors-24-02396-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/e07bfba805f1/sensors-24-02396-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/b4d4fc81b822/sensors-24-02396-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/fc519c685ac5/sensors-24-02396-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/988c25b43c86/sensors-24-02396-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/ba8824137e2e/sensors-24-02396-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/656f88b9d9f1/sensors-24-02396-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/4d459eed2869/sensors-24-02396-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/a945a7de5633/sensors-24-02396-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/e07bfba805f1/sensors-24-02396-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e845/11054897/b4d4fc81b822/sensors-24-02396-g008.jpg
