Giparakis Miriam, Windischhofer Andreas, Isceri Stefania, Schrenk Werner, Schwarz Benedikt, Strasser Gottfried, Andrews Aaron Maxwell
Institute of Solid State Electronics, TU Wien, Gußhausstraße 25, 1040 Vienna, Austria.
Center for Micro- and Nanostructures, TU Wien, Gußhausstraße 25, 1040 Vienna, Austria.
Nanophotonics. 2024 Jan 18;13(10):1773-1780. doi: 10.1515/nanoph-2023-0702. eCollection 2024 Apr.

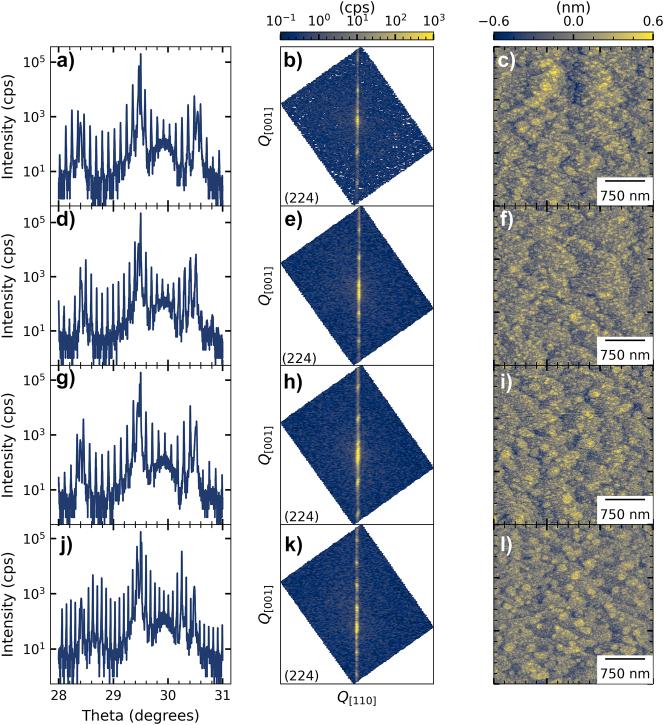

InAs/AlSb quantum cascade detectors (QCDs) grown strain-balanced on GaSb substrates are presented. This material system offers intrinsic performance-improving properties, like a low effective electron mass of the well material of 0.026 , enhancing the optical transition strength, and a high conduction band offset of 2.28 eV, reducing the noise and allowing for high optical transition energies. InAs and AlSb strain balance each other on GaSb with an InAs:AlSb ratio of 0.96:1. To regain the freedom of a lattice-matched material system regarding the optimization of a QCD design, submonolayer InSb layers are introduced. With strain engineering, four different active regions between 3.65 and 5.5 µm were designed with InAs:AlSb thickness ratios of up to 2.8:1, and subsequently grown and characterized. This includes an optimized QCD design at 4.3 µm, with a room-temperature peak responsivity of 26.12 mA/W and a detectivity of 1.41 × 10 Jones. Additionally, all QCD designs exhibit higher-energy interband signals in the mid- to near-infrared, stemming from the InAs/AlSb type-II alignment and the narrow InAs band gap.
本文介绍了在GaSb衬底上生长的应变平衡InAs/AlSb量子级联探测器(QCD)。这种材料系统具有一些内在的性能提升特性,比如阱材料的有效电子质量低至0.026 ,增强了光学跃迁强度,以及导带偏移高达2.28 eV,降低了噪声并允许实现高光跃迁能量。InAs和AlSb在GaSb上实现应变平衡,InAs与AlSb的比例为0.96:1。为了在QCD设计优化方面重新获得晶格匹配材料系统的自由度,引入了亚单层InSb层。通过应变工程,设计了四种不同的有源区,波长在3.65至5.5 µm之间,InAs与AlSb的厚度比高达2.8:1,随后进行生长和表征。这包括一个在4.3 µm处优化的QCD设计,其室温峰值响应率为26.12 mA/W,探测率为1.41×10 琼斯。此外,所有QCD设计在中红外到近红外区域都表现出更高能量的带间信号,这源于InAs/AlSb II型能带排列和InAs窄带隙。
