Analysis on charge-retention characteristics of sub-threshold synaptic IGZO thin-film transistors with defective gate oxides.

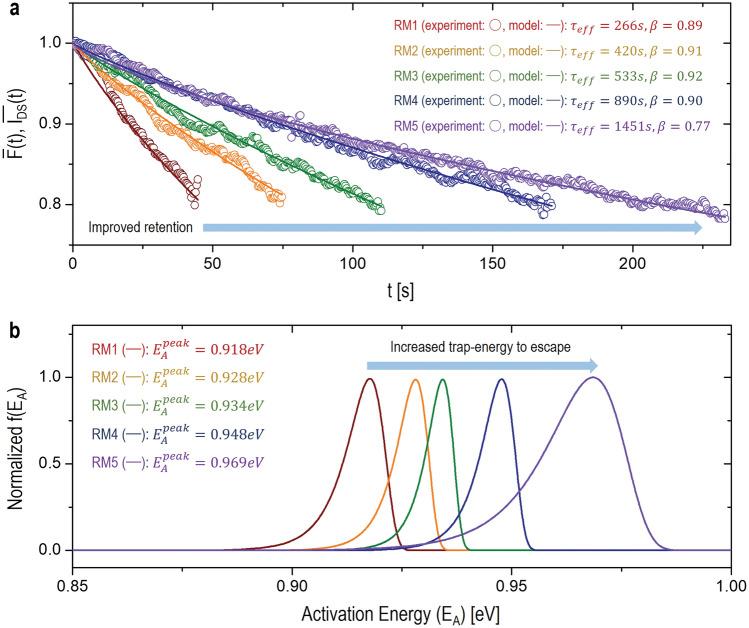

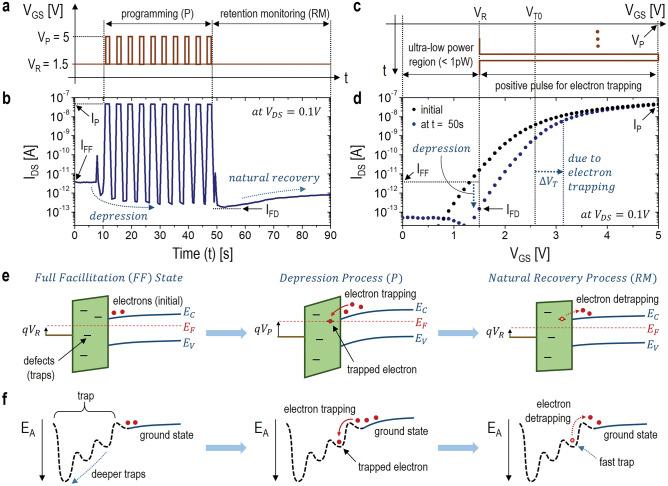

We provide a quantitative analysis on the charge-retention characteristics of sub-threshold operating In-Ga-Zn-O (IGZO) thin-film transistors (TFTs) with a defective gate-oxide for low-power synaptic applications. Here, a defective SiO is incorporated as the synaptic gate-oxide in the fabricated IGZO TFTs, where a defect is physically playing the role as an electron trap. With this synaptic TFT, positive programming pulses for the electron trapping are applied to the gate electrode, followed by monitoring the retention characteristics as a function of time. And this set of the programming and retention-monitoring experiments is repeated in several times for accumulating effects of pre-synaptic stimulations. Due to these accumulated stimulations, electrons are expected to be getting occupied within a deeper trap-state with a higher activation energy, which can lead to a longer retention. To verify these phenomena, a stretched exponential function and respective inverse Laplace transform are employed to precisely estimate a retention time and trap activation-energy for transient experimental results.
