Accurate Prediction of Three-Dimensional Humanoid Avatars for Anthropometric Modeling.

OBJECTIVE

To evaluate the hypothesis that anthropometric dimensions derived from a person's manifold-regression predicted three-dimensional (3D) humanoid avatar are accurate when compared to their actual circumference, volume, and surface area measurements acquired with a ground-truth 3D optical imaging method. Avatars predicted using this approach, if accurate with respect to anthropometric dimensions, can serve multiple purposes including patient metabolic disease risk stratification in clinical settings.

METHODS

Manifold regression 3D avatar prediction equations were developed on a sample of 570 adults who completed 3D optical scans, dual-energy X-ray absorptiometry (DXA), and bioimpedance analysis (BIA) evaluations. A new prospective sample of 84 adults had ground-truth measurements of 6 body circumferences, 7 volumes, and 7 surface areas with a 20-camera 3D reference scanner. 3D humanoid avatars were generated on these participants with manifold regression including age, weight, height, DXA %fat, and BIA impedances as potential predictor variables. Ground-truth and predicted avatar anthropometric dimensions were quantified with the same software.

RESULTS

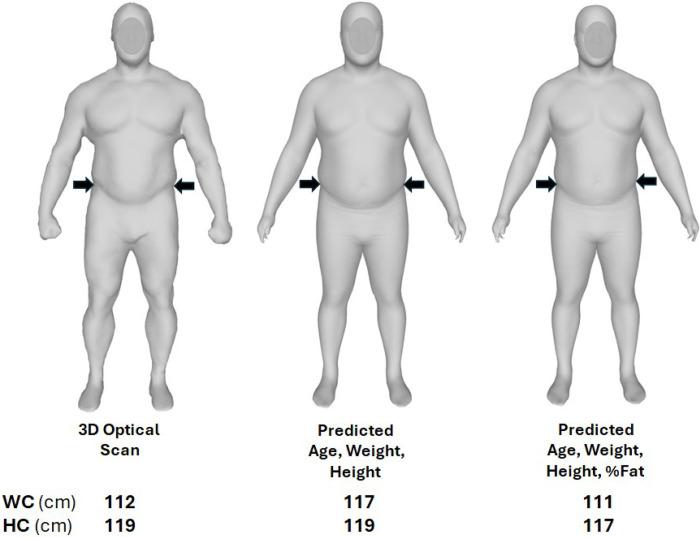

Following exploratory studies, one manifold prediction model was moved forward for presentation that included age, weight, height, and %fat as covariates. Predicted and ground-truth avatars had similar visual appearances; correlations between predicted and ground-truth anthropometric estimates were all high (Rs, 0.75-0.99; all p < 0.001) with non-significant mean differences except for arm circumferences (%D ~ 5%; p < 0.05). Concordance correlation coefficients ranged from 0.80-0.99 and small but significant bias (p < 0.05 - 0.01) was present with Bland-Altman plots in 13 of 20 total anthropometric measurements. The mean waist to hip circumference ratio predicted by manifold regression was non-significantly different from ground-truth scanner measurements.

CONCLUSIONS

3D avatars predicted from demographic, physical, and other accessible characteristics can produce body representations with accurate anthropometric dimensions without a 3D scanner. Combining manifold regression algorithms into established body composition methods such as DXA, BIA, and other accessible methods provides new research and clinical opportunities.
