Systematic Review on the Use of 3D-Printed Models for Planning, Training and Simulation in Vascular Surgery.

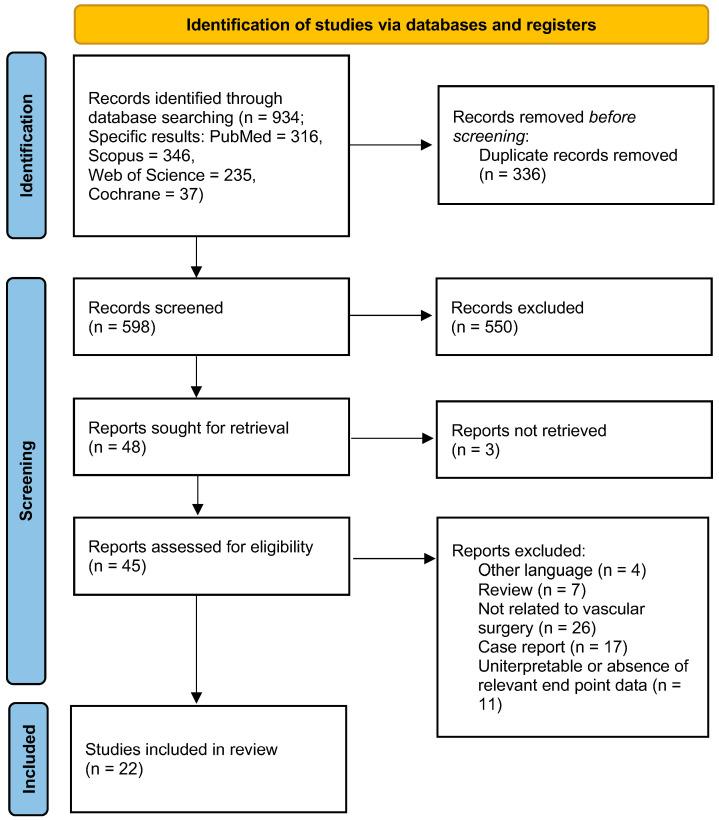

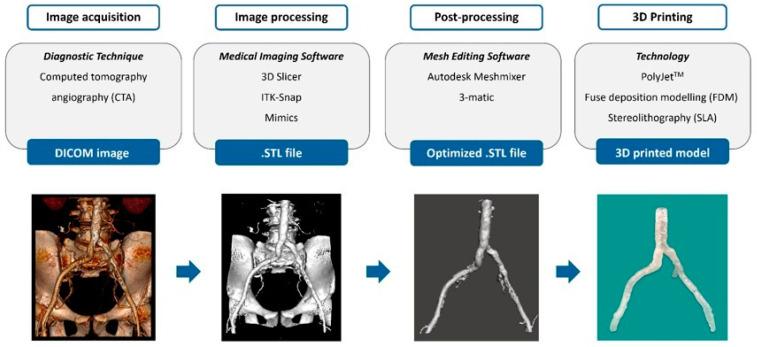

The use of 3D-printed models in simulation-based training and planning for vascular surgery is gaining interest. This study aims to provide an overview of the current applications of 3D-printing technologies in vascular surgery. We performed a systematic review by searching four databases: PubMed, Web of Science, Scopus, and Cochrane Library (last search: 1 March 2024). We included studies considering the treatment of vascular stenotic/occlusive or aneurysmal diseases. We included papers that reported the outcome of applications of 3D-printed models, excluding case reports or very limited case series (≤5 printed models or tests/simulations). Finally, 22 studies were included and analyzed. Computed tomography angiography (CTA) was the primary diagnostic method used to obtain the images serving as the basis for generating the 3D-printed models. Processing the CTA data involved the use of medical imaging software; 3DSlicer (Brigham and Women's Hospital, Harvard University, Boston, MA), ITK-Snap, and Mimics (Materialise NV, Leuven, Belgium) were the most frequently used. Autodesk Meshmixer (San Francisco, CA, USA) and 3-matic (Materialise NV, Leuven, Belgium) were the most frequently employed mesh-editing software during the post-processing phase. PolyJet™, fused deposition modeling (FDM), and stereolithography (SLA) were the most frequently employed 3D-printing technologies. Planning and training with 3D-printed models seem to enhance physicians' confidence and performance levels by up to 40% and lead to a reduction in the procedure time and contrast volume usage to varying extents.
