A deep learning model to predict dose distributions for breast cancer radiotherapy.

作者信息

Hou Xiaorong, Cheng Weishi, Shen Jing, Guan Hui, Zhang Yimeng, Bai Lu, Wang Shaobin, Liu Zhikai

机构信息

Department of Radiation Oncology, Peking Union Medical College Hospital, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing, 100730, China.

Peking Union Medical College, Chinese Academy of Medical Sciences, Beijing, 100730, China.

出版信息

Discov Oncol. 2025 Feb 12;16(1):165. doi: 10.1007/s12672-025-01942-4.


DOI:10.1007/s12672-025-01942-4
PMID:39937302
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11822156/
Abstract

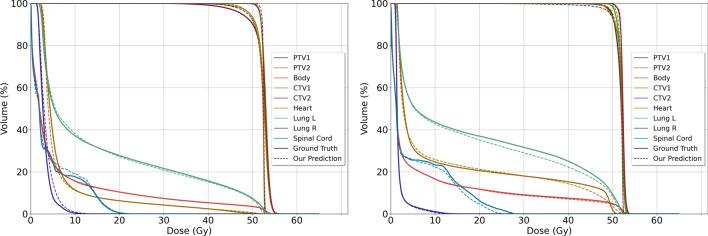

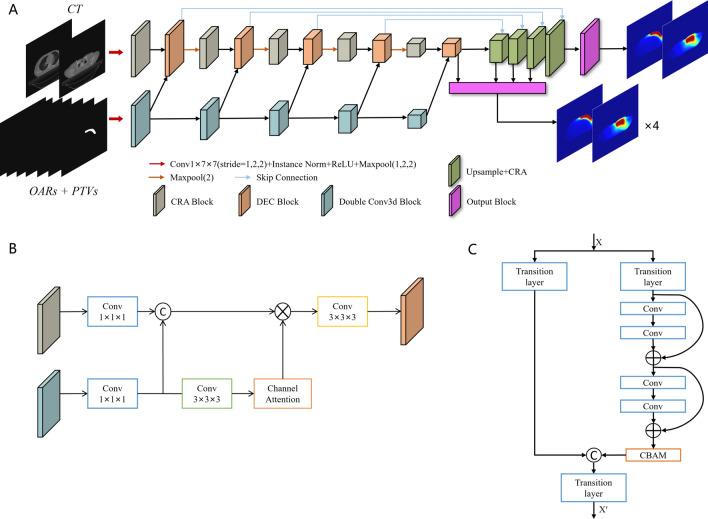

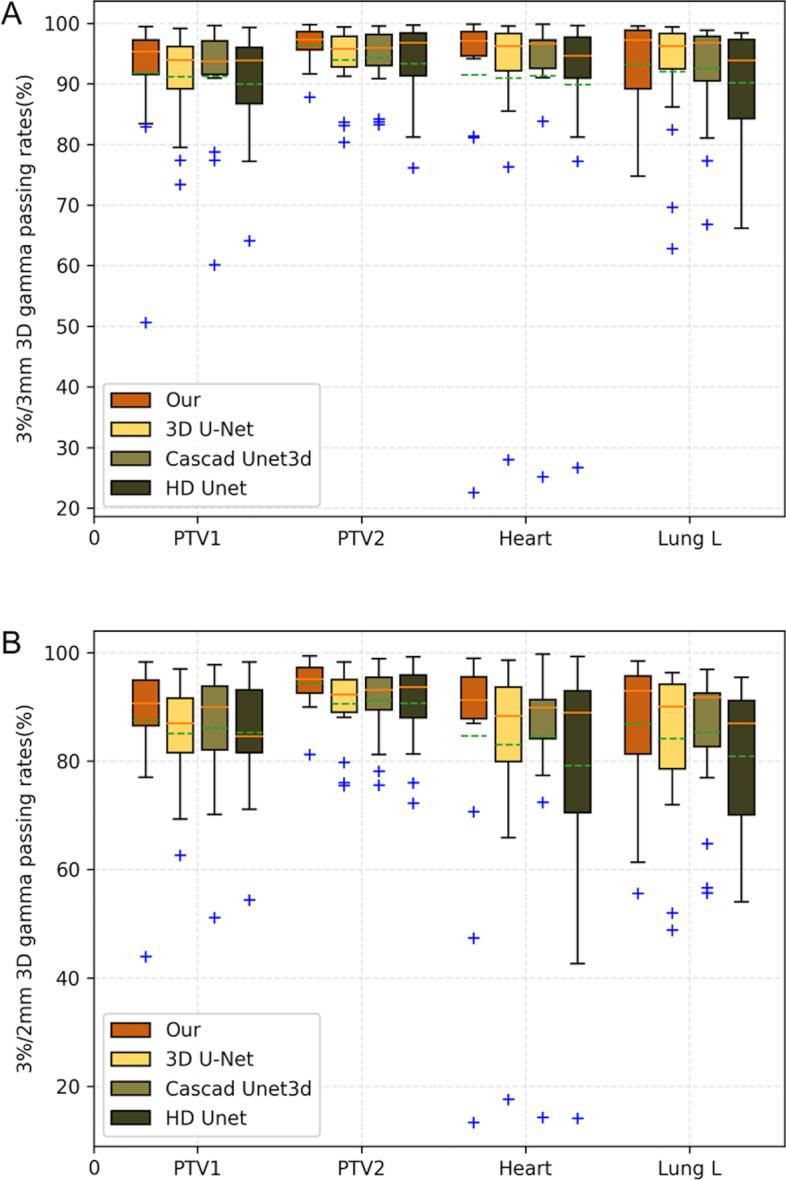

PURPOSE: In this work, we propose to develop a 3D U-Net-based deep learning model that accurately predicts the dose distribution for breast cancer radiotherapy. METHODS: This study included 176 breast cancer patients, divided into training, validating and testing sets. A deep learning model based on the 3D U-Net architecture was developed to predict dose distribution, which employed a double encoder combination attention (DECA) module, a cross stage partial + Resnet + Attention (CRA) module, a difficulty perception and a critical regions loss. The performance and generalization ability of this model were evaluated by the voxel mean absolute error (MAE), several clinically relevant dosimetric indexes and 3D gamma passing rates. RESULTS: Our model accurately predicted the 3D dose distributions with each dosage level mirroring the clinical reality in shape. The generated dose-volume histogram (DVH) matched with the ground truth curve. The total dose error of our model was below 1.16 Gy, complying with clinical usage standards. When compared to other exceptional models, our model optimally predicted eight out of nine regions, and the prediction errors for the first planning target volume (PTV1) and PTV2 were merely 1.03 Gy and 0.74 Gy. Moreover, the mean 3%/3 mm 3D gamma passing rates for PTV1, PTV2, Heart and Lung L achieved 91.8%, 96.4%, 91.5%, and 93.2%, respectively, surpassing the other models and meeting clinical standards. CONCLUSIONS: This study developed a new deep learning model based on 3D U-Net that can accurately predict dose distributions for breast cancer radiotherapy, which can improve the quality and planning efficiency.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0e09/11822156/dded28960864/12672_2025_1942_Fig5_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0e09/11822156/5a3e8fe2f38d/12672_2025_1942_Fig1_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0e09/11822156/0c714417cf65/12672_2025_1942_Fig2_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0e09/11822156/08460514a5e0/12672_2025_1942_Fig3_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0e09/11822156/8cb49da238b0/12672_2025_1942_Fig4_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0e09/11822156/dded28960864/12672_2025_1942_Fig5_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0e09/11822156/5a3e8fe2f38d/12672_2025_1942_Fig1_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0e09/11822156/0c714417cf65/12672_2025_1942_Fig2_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0e09/11822156/08460514a5e0/12672_2025_1942_Fig3_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0e09/11822156/8cb49da238b0/12672_2025_1942_Fig4_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0e09/11822156/dded28960864/12672_2025_1942_Fig5_HTML.jpg
