评估共沉淀法在合成基于羟基磷灰石包覆氧化铁的磁性纳米复合材料中的有效性。
Assessing the Effectiveness of the Coprecipitation Method in Synthesizing Magnetic Nanocomposites Based on Iron Oxides Coated with Hydroxyapatite.
作者信息
Muñoz-Leon Maria L, Zubieta-Otero Luis F, Coral Diego F, Villaquiran-Raigoza Claudia F, Rodriguez-García Mario E
机构信息
Posgrado en Ciencia e Ingeniería de Materiales, Centro de Física Aplicada y Tecnología Avanzada, Universidad Nacional Autónoma de México, Campus Juriquilla, Querétaro, Qro. 76230, México.
Ciencia y Tecnología de Materiales Cerámicos (CYTEMAC), Facultad de Ciencias Naturales, Exactas y de la Educación, Departamento de Física, Universidad del Cauca, Calle 2A 3N-111, Popayán, Cauca 190002, Colombia.
出版信息
ACS Omega. 2025 Apr 3;10(14):13797-13806. doi: 10.1021/acsomega.4c05427. eCollection 2025 Apr 15.

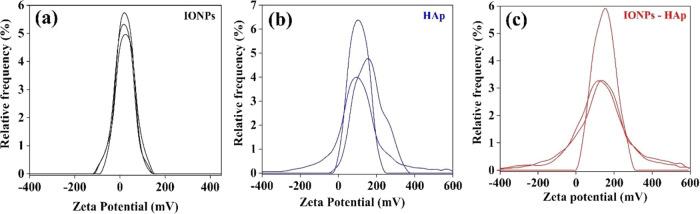

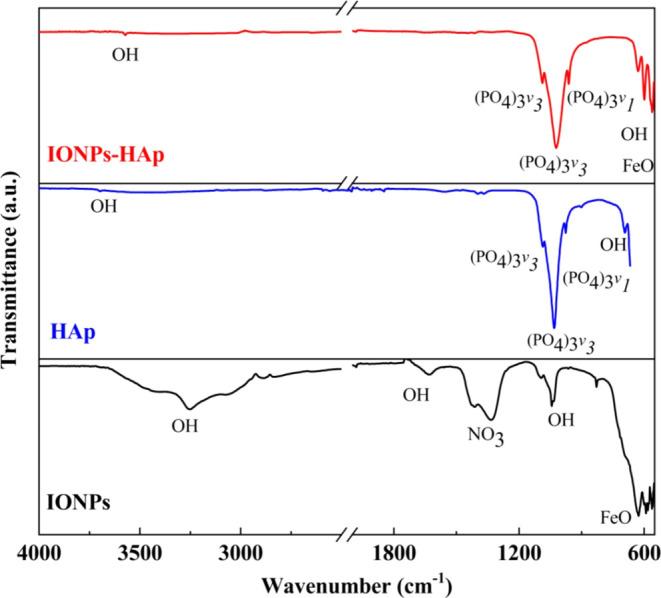

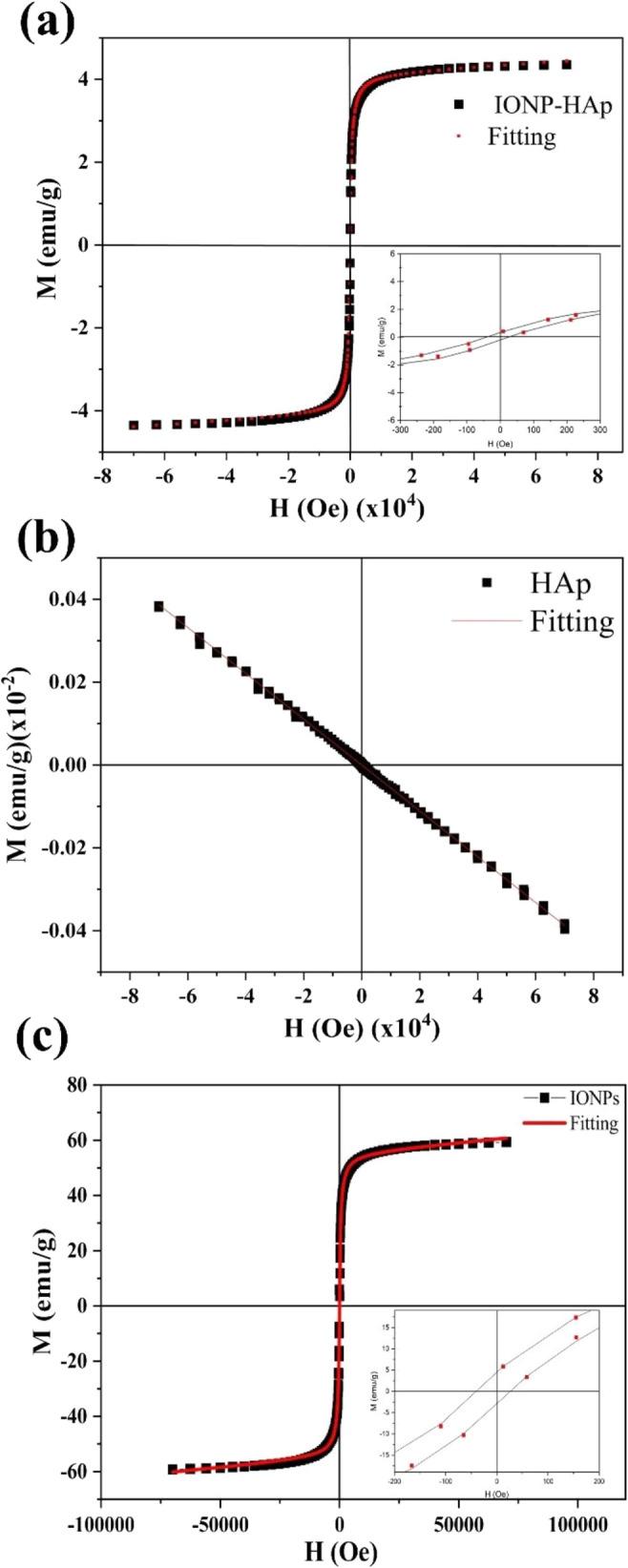

The aim of this work was the development and characterization of iron oxide nanoparticles with magnetite phases (IONPs)-hydroxyapatite (HAp) composites. In this article, the chemical coprecipitation method was used to synthesize three different nanomaterials: IONPs, HAp, and IONPs-HAp composite. Rietveld analysis of the X-ray diffraction (XRD) revealed the crystal lattice parameters and presence of HAp and IONPS after synthesis, which was carried out at a temperature of 120 °C inductively coupled plasma (ICP) was used to identify the trace elements present, Fourier transform infrared (FTIR) spectroscopy to verify the functional groups present in each material and efficiency of washes for the composite material, transmission electron microscopy (TEM) to observe the morphology and nanoparticle size for IONPs 11 nm and IONPs-HAp 15 nm. ζ potential measurements to investigate the surface charges for all samples had a positive value, the apatite samples showed a very stable behavior, and vibrating sample magnetometry (VSM) to evaluate the magnetic properties showed that IONPs and IONPs-HAp composite exhibit superparamagnetic behavior, while HAp nanoparticles show diamagnetic behavior. It was also shown that the saturation magnetization and magnetic moments of the IONPs do not change upon formation of the IONPs-HAp composite.
这项工作的目的是开发和表征具有磁铁矿相的氧化铁纳米颗粒(IONPs)-羟基磷灰石(HAp)复合材料。在本文中,采用化学共沉淀法合成了三种不同的纳米材料:IONPs、HAp和IONPs-HAp复合材料。对X射线衍射(XRD)进行的Rietveld分析揭示了合成后HAp和IONPs的晶格参数和存在情况,合成是在120°C的温度下进行的;使用电感耦合等离子体(ICP)来识别存在的微量元素,傅里叶变换红外(FTIR)光谱来验证每种材料中存在的官能团以及复合材料洗涤的效率,透射电子显微镜(TEM)来观察IONPs(11nm)和IONPs-HAp(15nm)的形态和纳米颗粒尺寸。ζ电位测量用于研究所有样品的表面电荷,其值为正,磷灰石样品表现出非常稳定的行为,振动样品磁强计(VSM)用于评估磁性,结果表明IONPs和IONPs-HAp复合材料表现出超顺磁性行为,而HAp纳米颗粒表现出抗磁性行为。还表明,IONPs-HAp复合材料形成后,IONPs的饱和磁化强度和磁矩没有变化。
