利用废磷石膏合成羟基磷酸钙及其表征
Synthesis and Characterization of Calcium Hydroxyapatite from Waste Phosphogypsum.
作者信息
Jursene Elzbieta, Michailova Laura, Jureviciute Simona, Stankeviciute Zivile, Grigoraviciute Inga, Kareiva Aivaras
机构信息
Institute of Chemistry, Vilnius University, Naugarduko 24, LT-03225 Vilnius, Lithuania.
出版信息
Materials (Basel). 2025 Jun 17;18(12):2869. doi: 10.3390/ma18122869.

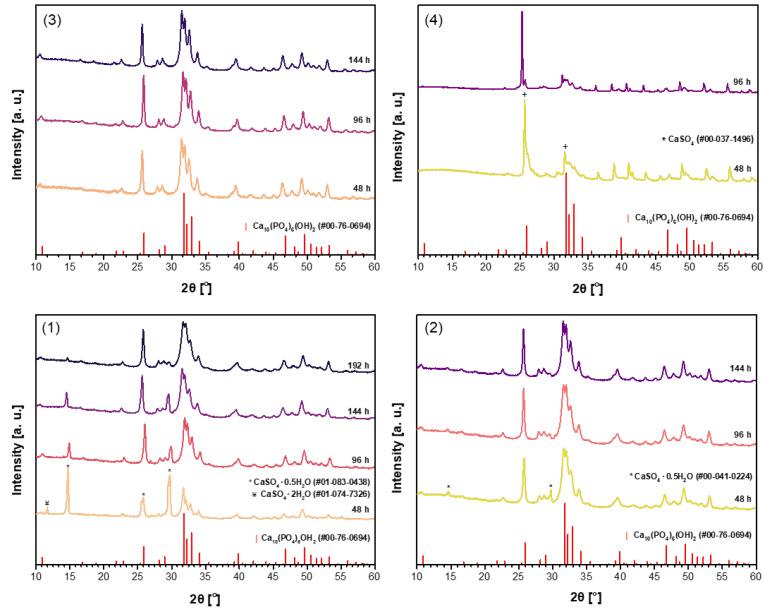

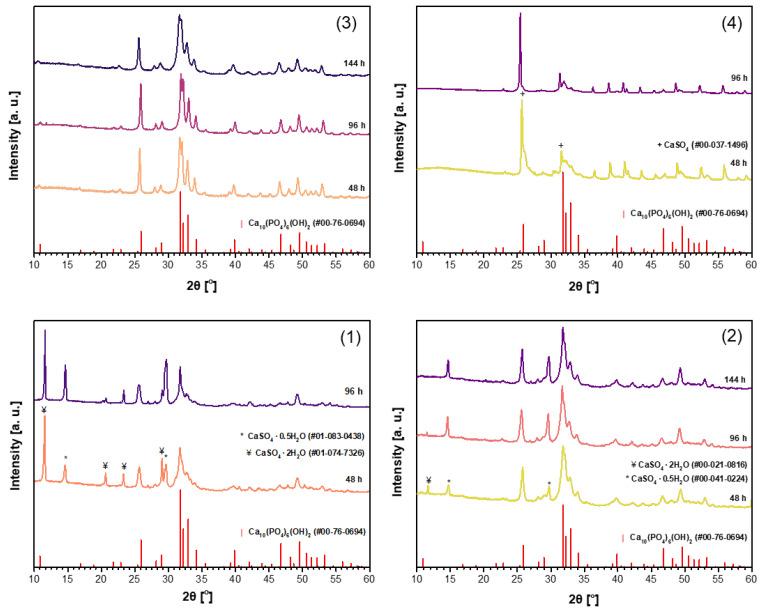

In this study, phosphogypsum waste collected from a factory dump in Kedainiai, Lithuania, was used for the first time as a starting material in the dissolution-precipitation synthesis of high-quality bioceramic calcium hydroxyapatite (Ca(PO)(OH); CHA). The CHA powders were synthesized using the dissolution-precipitation method, employing phosphogypsum in four different conditions: untreated, dried at 100 °C, dried at 150 °C, and annealed at 1000 °C. Various phosphorus sources were used in the CHA synthesis process: NaHPO; a mixture of NaHPO and NaHPO; or a combination of NaHPO, NaHPO, and NaHCO. These mixtures were allowed to react at 80 °C for 48 h, 96 h, 144 h, and 192 h. X-ray diffraction (XRD) analysis revealed slight variations in the synthesized products depending on the specific starting materials used. Fourier transform infrared spectroscopy (FTIR) was conducted to confirm the structural characteristics of the synthesized CHA samples. The surface microstructure of the synthesized CHA samples differed notably from that of the raw phosphogypsum. All synthesized CHA samples exhibited Type IV nitrogen adsorption-desorption isotherms with H3-type hysteresis loops, indicating the presence of mesoporous structures, typically associated with slit-like pores or aggregates of plate-like particles. To the best of our knowledge, an almost monophasic CHA has been fabricated from phosphogypsum waste for the first time using a newly developed dissolution-precipitation synthesis method. A key challenge in the high-end market is the development of alternative synthesis technologies that are not only more environmentally friendly but also highly efficient. These findings demonstrate that phosphogypsum is a viable and sustainable raw material for CHA synthesis, with promising applications in the medical field, including the production of artificial bone implants.
在本研究中,首次使用从立陶宛凯代奈艾的工厂垃圾场收集的磷石膏废料,作为在溶解 - 沉淀合成高质量生物陶瓷羟基磷灰石(Ca₁₀(PO₄)₆(OH)₂;CHA)过程中的起始原料。采用溶解 - 沉淀法,在四种不同条件下使用磷石膏合成CHA粉末:未处理、在100℃干燥、在150℃干燥以及在1000℃退火。在CHA合成过程中使用了各种磷源:Na₂HPO₄;Na₂HPO₄和NaH₂PO₄的混合物;或者Na₂HPO₄、NaH₂PO₄和NaHCO₃的组合。使这些混合物在80℃下反应48小时、96小时、144小时和192小时。X射线衍射(XRD)分析表明,根据所使用的特定起始原料,合成产物存在细微差异。进行傅里叶变换红外光谱(FTIR)分析以确认合成的CHA样品的结构特征。合成的CHA样品的表面微观结构与原始磷石膏的表面微观结构明显不同。所有合成的CHA样品均表现出具有H3型滞后环的IV型氮吸附 - 解吸等温线,表明存在中孔结构,通常与狭缝状孔或板状颗粒聚集体相关。据我们所知,首次使用新开发的溶解 - 沉淀合成方法从磷石膏废料中制备出了几乎单相的CHA。高端市场的一个关键挑战是开发不仅更环保而且高效的替代合成技术。这些发现表明,磷石膏是CHA合成的一种可行且可持续的原料,在医疗领域具有广阔的应用前景,包括人工骨植入物的生产。
