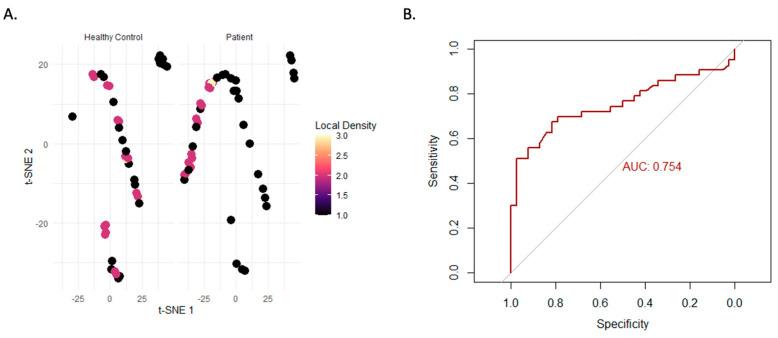

: Regulatory T cells (Tregs) are the main suppressor cells that maintain immune tolerance and prevent autoimmunity. Changes in Treg number or function are implicated in a wide range of autoimmune and inflammatory (AI/I) diseases, with or without underlying inborn errors of immunity (IEI). Understanding the phenotypic profiles of Treg subsets and their associations with immune dysregulation is crucial to identifying potential robust and holistic biomarkers for disease activity. : We examined peripheral blood mononuclear cells from 40 patients diagnosed with various autoimmune/inflammatory diseases, including those with genetically confirmed inborn errors of immunity (IEIs), and compared these samples to those from 38 healthy controls of the same age. Utilizing multiparametric flow cytometry, we measured multiple Treg sub-populations and investigated their correlations with lymphocyte subset profiles and the diversity of autoantibodies. We applied advanced statistical and machine learning techniques, such as t-SNE, k-means clustering, and ROC analysis, to analyze immunophenotypic patterns in the patients. : Among all Treg sub-populations, only CD4CD127CD25FOXP3 Tregs showed a significant decrease in patients compared to healthy controls ( < 0.05), while other Treg phenotypes did not differ. FOXP3 expression showed reduced intensity in patients and demonstrated diagnostic potential (AUC = 0.754). Notably, this Treg subset negatively correlated with CD19 B cell percentages and positively correlated with the diversity of circulating autoantibodies. Unsupervised clustering revealed three distinct immunophenotypic profiles, highlighting heterogeneity among patients and underlining FOXP3-centered immune dysregulation. : Our results presented that patients have an impairment in the CD4CD127CD25FOXP3 regulatory T cell subset, which is identified by significantly decreased frequency and decreased expression of FOXP3. Immunological heterogeneity among patients was further uncovered by unsupervised clustering, highlighting the critical role that FOXP3-centered regulatory failure plays in the pathophysiology of illness. The combined evaluation of these three immunological factors, centered around FOXP3, holds promise as an integrative tool for monitoring disease progression across various autoimmune and immunodeficient contexts.
