Li Bing, Qiu Yong, Glidle Andrew, McIlvenna David, Luo Qian, Cooper Jon, Shi Han-Chang, Yin Huabing
Environmental Simulation and Pollution Control State-Key Joint Laboratory, School of Environment, Tsinghua University , Beijing 100084, China.
Anal Chem. 2014 Mar 18;86(6):3131-7. doi: 10.1021/ac5001306. Epub 2014 Mar 3.
Bacterial growth inhibition tests have become a standard measure of the adverse effects of inhibitors for a wide range of applications, such as toxicity testing in the medical and environmental sciences. However, conventional well-plate formats for these tests are laborious and provide limited information (often being restricted to an end-point assay). In this study, we have developed a microfluidic system that enables fast quantification of the effect of an inhibitor on bacteria growth and survival, within a single experiment. This format offers a unique combination of advantages, including long-term continuous flow culture, generation of concentration gradients, and single cell morphology tracking. Using Escherichia coli and the inhibitor amoxicillin as one model system, we show excellent agreement between an on-chip single cell-based assay and conventional methods to obtain quantitative measures of antibiotic inhibition (for example, minimum inhibition concentration). Furthermore, we show that our methods can provide additional information, over and above that of the standard well-plate assay, including kinetic information on growth inhibition and measurements of bacterial morphological dynamics over a wide range of inhibitor concentrations. Finally, using a second model system, we show that this chip-based systems does not require the bacteria to be labeled and is well suited for the study of naturally occurring species. We illustrate this using Nitrosomonas europaea, an environmentally important bacteria, and show that the chip system can lead to a significant reduction in the period required for growth and inhibition measurements (<4 days, compared to weeks in a culture flask).

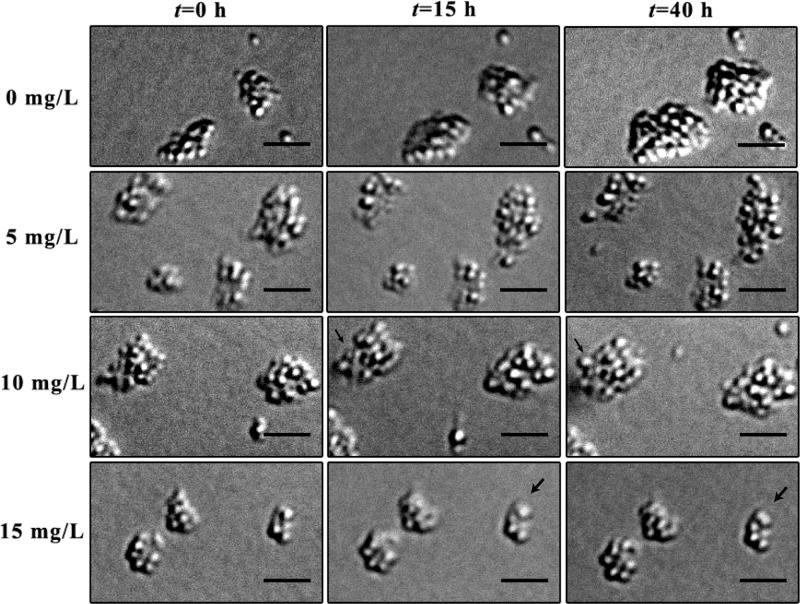

细菌生长抑制试验已成为衡量抑制剂在广泛应用中的不良影响的标准方法,例如在医学和环境科学中的毒性测试。然而,这些测试的传统微孔板形式操作繁琐且提供的信息有限(通常仅限于终点测定)。在本研究中,我们开发了一种微流控系统,能够在单个实验中快速定量抑制剂对细菌生长和存活的影响。这种形式具有独特的优势组合,包括长期连续流动培养、浓度梯度生成和单细胞形态跟踪。以大肠杆菌和抑制剂阿莫西林作为一个模型系统,我们展示了基于芯片的单细胞测定与传统方法之间在获得抗生素抑制定量测量(例如最低抑菌浓度)方面的高度一致性。此外,我们表明我们的方法能够提供超出标准微孔板测定的额外信息,包括生长抑制的动力学信息以及在广泛的抑制剂浓度范围内细菌形态动力学的测量。最后,使用第二个模型系统,我们表明这种基于芯片的系统不需要对细菌进行标记,非常适合研究天然存在的物种。我们以欧洲亚硝化单胞菌(一种对环境重要的细菌)为例进行说明,并表明芯片系统可以显著缩短生长和抑制测量所需的时间(<4天,相比在培养瓶中需要数周)。
