用于可印刷和柔性电子器件的高性能磁传感技术。
High-performance magnetic sensorics for printable and flexible electronics.
作者信息
Karnaushenko Daniil, Makarov Denys, Stöber Max, Karnaushenko Dmitriy D, Baunack Stefan, Schmidt Oliver G
机构信息
Institute for Integrative Nanosciences, Institute for Solid State and Materials Research Dresden (IFW Dresden), Dresden, 01069, Germany.
出版信息
Adv Mater. 2015 Feb 4;27(5):880-5. doi: 10.1002/adma.201403907. Epub 2014 Nov 4.

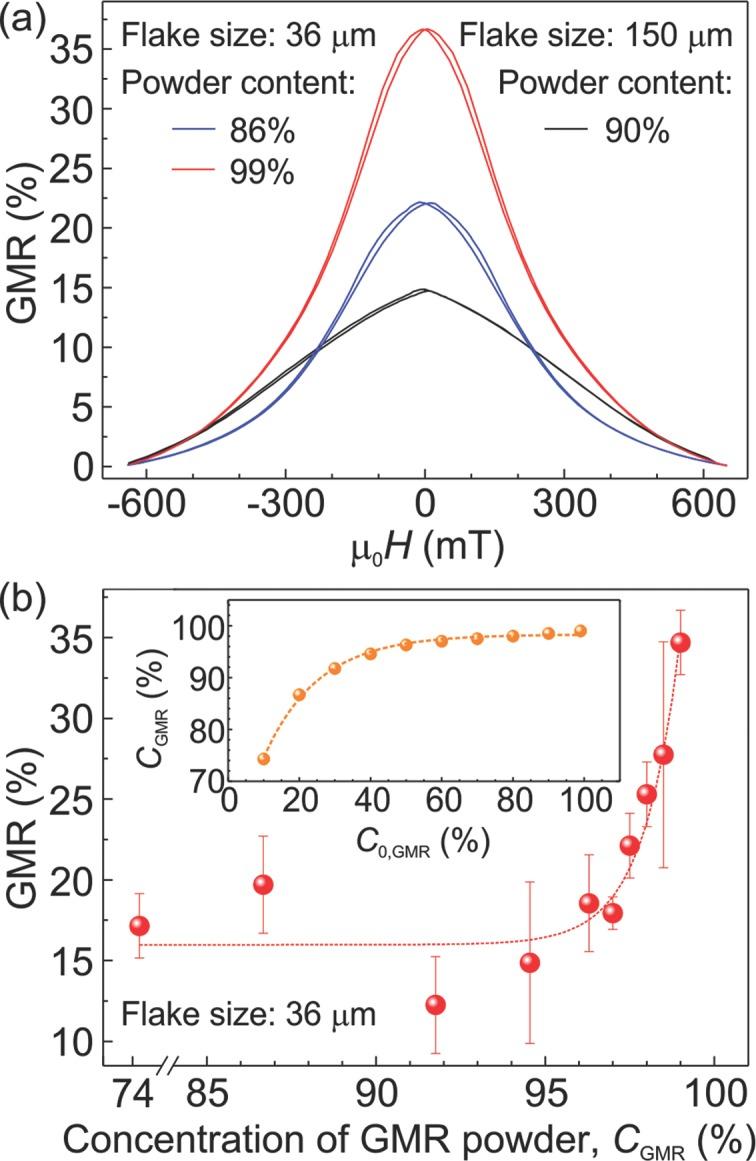

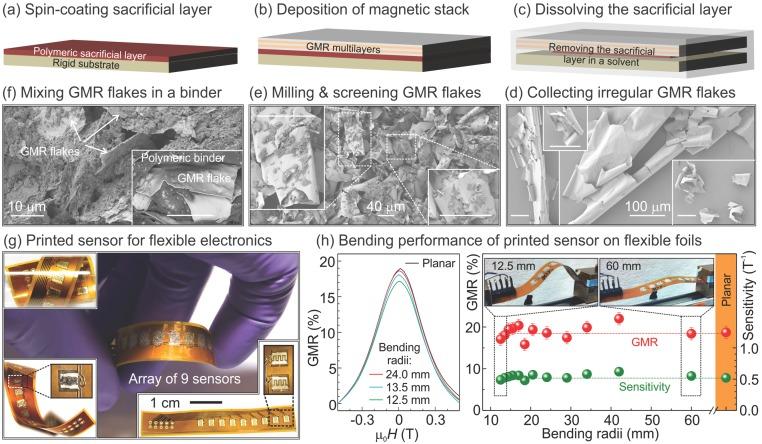

High-performance giant magnetoresistive (GMR) sensorics are realized, which are printed at predefined locations on flexible circuitry. Remarkably, the printed magnetosensors remain fully operational over the complete consumer temperature range and reveal a giant magnetoresistance up to 37% and a sensitivity of 0.93 T(-1) at 130 mT. With these specifications, printed magnetoelectronics can be controlled using flexible active electronics for the realization of smart packaging and energy-efficient switches.
实现了高性能的巨磁阻（GMR）传感技术，这些传感器被印刷在柔性电路的预定位置上。值得注意的是，印刷磁传感器在整个消费级温度范围内都能完全正常工作，并且在130 mT时显示出高达37%的巨磁阻和0.93 T⁻¹的灵敏度。基于这些特性，印刷磁电子器件可以通过柔性有源电子器件进行控制，以实现智能包装和节能开关。
