Graduate School of Pharmaceutical Sciences, Duquesne University, Pittsburgh, PA 15282, USA.
Mylan School of Pharmacy, Duquesne University, Pittsburgh, PA 15282, USA.
Biosensors (Basel). 2013 Sep 23;3(3):341-59. doi: 10.3390/bios3030341.

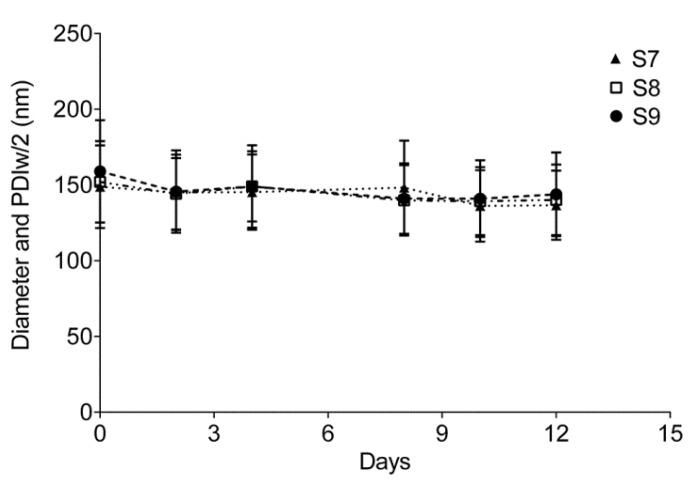

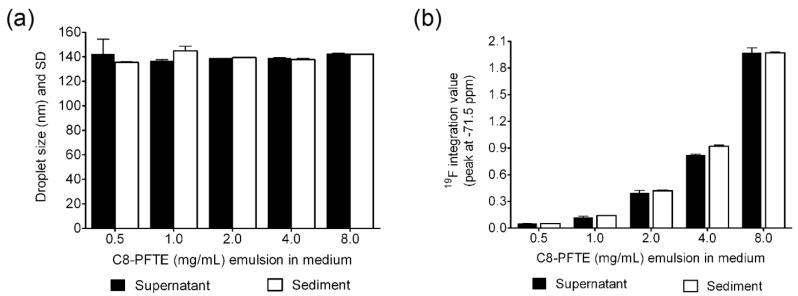

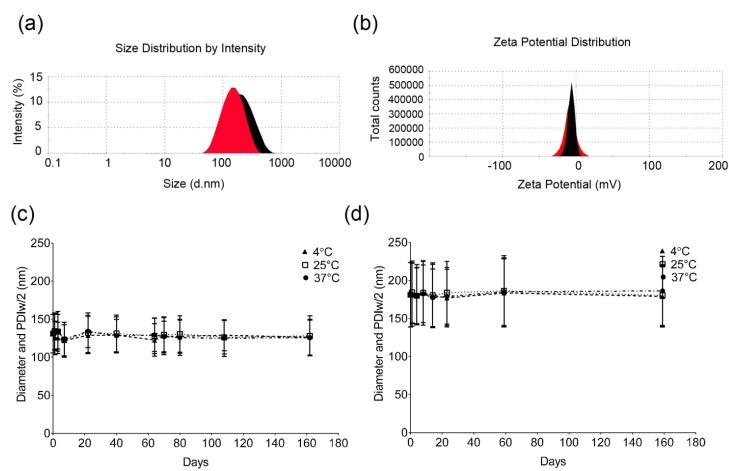

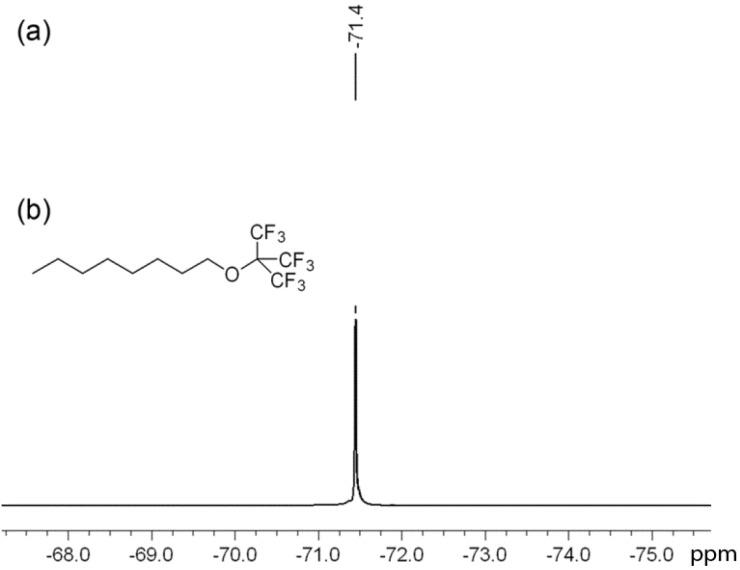

This report describes novel perfluorocarbon (PFC) nanoemulsions designed to improve ex vivo cell labeling for 19F magnetic resonance imaging (MRI). 19F MRI is a powerful non-invasive technique for monitoring cells of the immune system in vivo, where cells are labeled ex vivo with PFC nanoemulsions in cell culture. The quality of 19F MRI is directly affected by the quality of ex vivo PFC cell labeling. When co-cultured with cells for longer periods of time, nanoemulsions tend to settle due to high specific weight of PFC oils (1.5-2.0 g/mL). This in turn can decrease efficacy of excess nanoemulsion removal and reliability of the cell labeling in vitro. To solve this problem, novel PFC nanoemulsions are reported which demonstrate lack of sedimentation and high stability under cell labeling conditions. They are monodisperse, have small droplet size (~130 nm) and low polydispersity (<0.15), show a single peak in the 19F nuclear magnetic resonance spectrum at -71.4 ppm and possess high fluorine content. The droplet size and polydispersity remained unchanged after 160 days of follow up at three temperatures (4, 25 and 37 °C). Further, stressors such as elevated temperature in the presence of cells, and centrifugation, did not affect the nanoemulsion droplet size and polydispersity. Detailed synthetic methodology and in vitro testing for these new PFC nanoemulsions is presented.
本报告介绍了新型全氟碳(PFC)纳米乳液,旨在提高 19F 磁共振成像(MRI)的体外细胞标记效果。19F MRI 是一种强大的非侵入性技术,可用于体内监测免疫系统细胞,在细胞培养过程中,细胞用 PFC 纳米乳液进行体外标记。19F MRI 的质量直接受到体外 PFC 细胞标记质量的影响。当与细胞共培养较长时间时,纳米乳液由于 PFC 油的高比重(1.5-2.0 g/mL)而容易沉降。这反过来又会降低过量纳米乳液去除的效果和体外细胞标记的可靠性。为了解决这个问题,报告了新型 PFC 纳米乳液,它们在细胞标记条件下表现出缺乏沉降和高稳定性。它们是单分散的,具有小的液滴尺寸(~130nm)和低的多分散性(<0.15),在-71.4ppm 的 19F 核磁共振谱中显示出单一峰,并且具有高氟含量。在 4、25 和 37°C 三种温度下,经过 160 天的后续观察,粒径和多分散性保持不变。此外,细胞存在时的高温等应激因素以及离心均未影响纳米乳液的粒径和多分散性。介绍了这些新型 PFC 纳米乳液的详细合成方法和体外测试。
