Department of Cell Biotechnology, Institute of Cytology of the Russian Academy of Sciences, St Petersburg, Russia.
Department of Radiation Immuno Oncology, Technische Universität München, Klinikum rechts der Isar, Munich, Germany.
Int J Nanomedicine. 2018 Mar 12;13:1471-1482. doi: 10.2147/IJN.S152461. eCollection 2018.

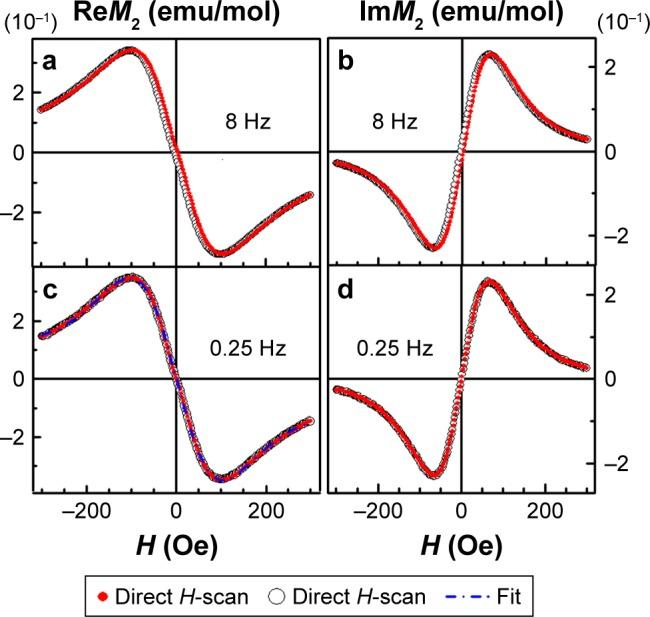

BACKGROUND: Glioblastoma is the most devastating primary brain tumor of the central nervous system in adults. Magnetic nanocarriers may help not only for a targeted delivery of chemotherapeutic agents into the tumor site but also provide contrast enhancing properties for diagnostics using magnetic resonance imaging (MRI). METHODS: Synthesized hybrid chitosan-dextran superparamagnetic nanoparticles (CS-DX-SPIONs) were characterized using transmission electron microscopy (TEM) and relaxometry studies. Nonlinear magnetic response measurements were employed for confirming the superparamagnetic state of particles. Following in vitro analysis of nanoparticles cellular uptake tumor targeting was assessed in the model of the orthotopic glioma in rodents. RESULTS: CS-DX-SPIONs nanoparticles showed a uniform diameter of 55 nm under TEM and superparamagentic characteristics as determined by (spin-lattice relaxation time) and (spin-spin relaxation time) proton relaxation times. Application of the chitosan increased the charge from +8.9 to +19.3 mV of the dextran-based SPIONs. The nonlinear magnetic response at second harmonic of CS-DX-SPIONs following the slow change of stationary magnetic fields with very low hysteresis evidenced superparamagnetic state of particles at ambient temperatures. Confocal microscopy and flow cytometry studies showed an enhanced internalization of the chitosan-based nanoparticles in U87, C6 glioma and HeLa cells as compared to dextran-coated particles. Cytotoxicity assay demonstrated acceptable toxicity profile of the synthesized nanoparticles up to a concentration of 10 μg/ml. Intravenously administered CS-DX-SPIONs in orthotopic C6 gliomas in rats accumulated in the tumor site as shown by high-resolution MRI (11.0 T). Retention of nanoparticles resulted in a significant contrast enhancement of the tumor image that was accompanied with a dramatic drop in values (<0.001). Subsequent histological studies proved the accumulation of the nanoparticles inside glioblastoma cells. CONCLUSION: Hybrid chitosan-dextran magnetic particles demonstrated high MR contrast enhancing properties for the delineation of the brain tumor. Due to a significant retention of the particles in the tumor an application of the CS-DX-SPIONs could not only improve the tumor imaging but also could allow a targeted delivery of chemotherapeutic agents.
背景:胶质母细胞瘤是成人中枢神经系统中最具破坏性的原发性脑肿瘤。磁性纳米载体不仅有助于将化疗药物靶向递送至肿瘤部位,而且还可为磁共振成像 (MRI) 提供对比增强特性。
方法:通过透射电子显微镜 (TEM) 和弛豫率研究对合成的壳聚糖-葡聚糖超顺磁纳米粒子 (CS-DX-SPIONs) 进行了表征。采用非线性磁响应测量来确认粒子的超顺磁状态。在体外分析纳米颗粒细胞摄取后,在啮齿动物的原位胶质瘤模型中评估了肿瘤靶向。

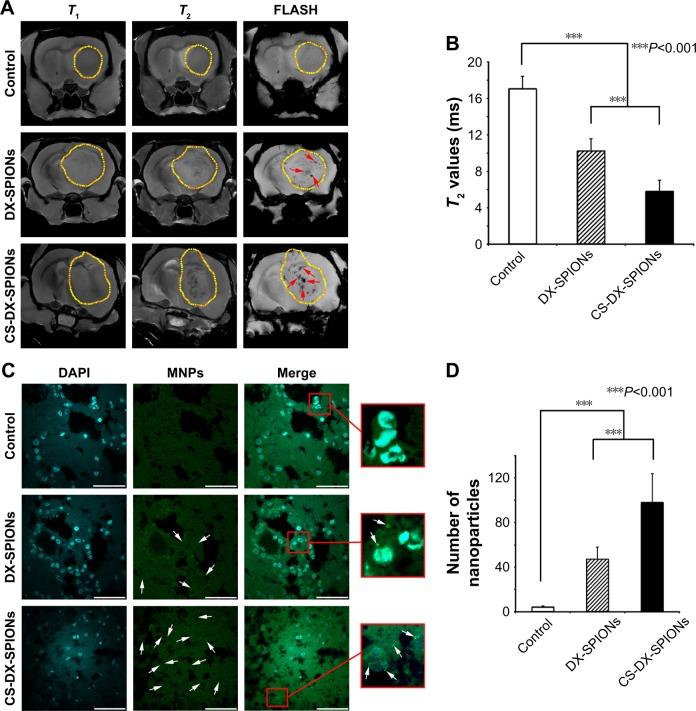

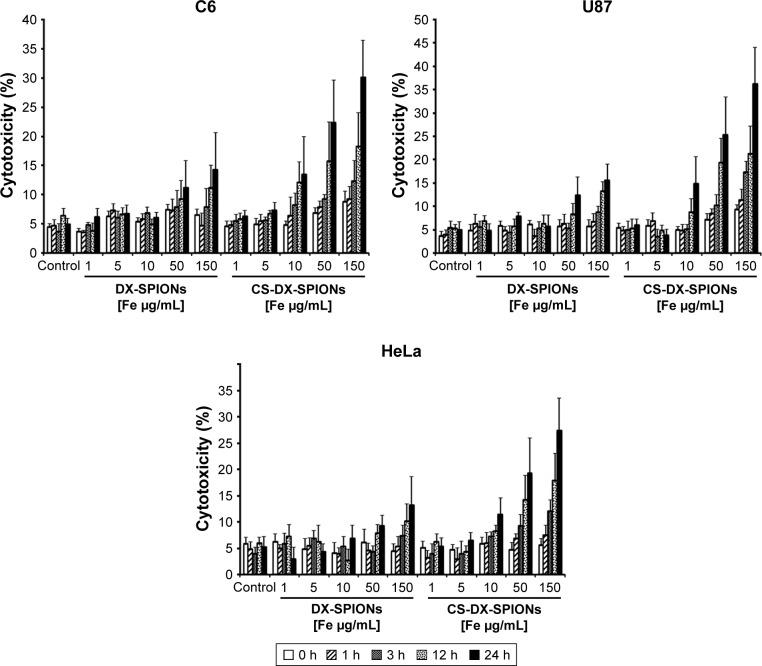

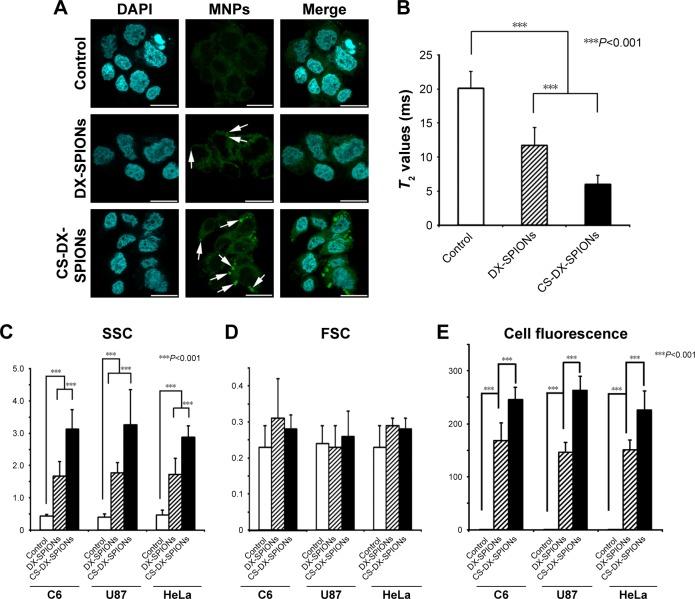

结果:TEM 下 CS-DX-SPIONs 纳米粒子的直径均匀,为 55nm,并且通过(自旋晶格弛豫时间)和(自旋-自旋弛豫时间)质子弛豫时间确定了超顺磁性特征。壳聚糖的应用将基于葡聚糖的 SPIONs 的电荷从+8.9 增加到+19.3mV。在环境温度下,CS-DX-SPIONs 在第二个谐波下的非线性磁响应表明,在非常低的磁滞作用下,固定磁场的缓慢变化表明粒子处于超顺磁状态。共聚焦显微镜和流式细胞术研究表明,与葡聚糖包覆的粒子相比,壳聚糖基纳米粒子在 U87、C6 神经胶质瘤和 HeLa 细胞中的内化增强。细胞毒性测定表明,合成的纳米粒子在高达 10μg/ml 的浓度下具有可接受的毒性特征。静脉内给予大鼠原位 C6 神经胶质瘤的 CS-DX-SPIONs 在高分辨率 MRI(11.0T)下积聚在肿瘤部位。纳米粒子的保留导致肿瘤图像的对比度显著增强,同时(T2)值急剧下降(<0.001)。随后的组织学研究证明了纳米粒子在神经胶质瘤细胞内的积累。
结论:壳聚糖-葡聚糖混合磁性颗粒显示出用于描绘脑肿瘤的高磁共振对比增强特性。由于粒子在肿瘤中的显著保留,CS-DX-SPIONs 的应用不仅可以改善肿瘤成像,还可以允许靶向递送化疗药物。
