Cimbalnik Jan, Brinkmann Benjamin, Kremen Vaclav, Jurak Pavel, Berry Brent, Gompel Jamie Van, Stead Matt, Worrell Greg
Mayo Systems Electrophysiology Laboratory Department of Neurology Mayo Clinic 200 First St SW Rochester Minnesota 55905.
International Clinical Research Center St. Anne's University Hospital Brno Czech Republic.
Ann Clin Transl Neurol. 2018 Aug 9;5(9):1062-1076. doi: 10.1002/acn3.618. eCollection 2018 Sep.
This study investigates high-frequency oscillations (HFOs; 65-600 Hz) as a biomarker of epileptogenic brain and explores three barriers to their clinical translation: (1) Distinguishing pathological HFOs (pathHFO) from physiological HFOs (physHFO). (2) Classifying tissue under individual electrodes as epileptogenic (3) Reproducing results across laboratories.

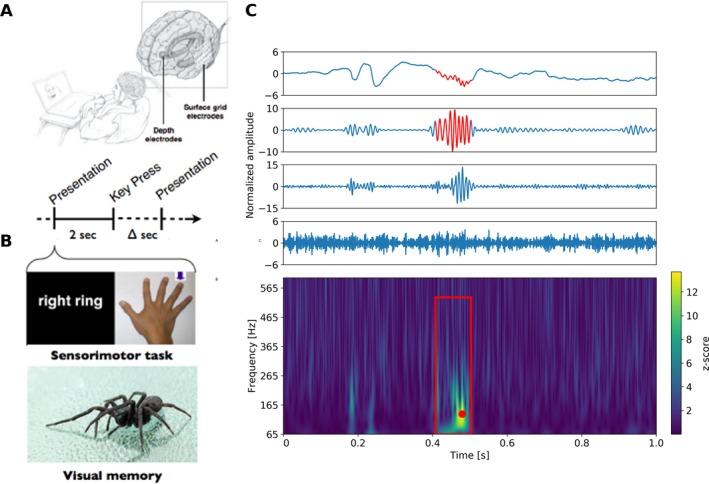

We recorded HFOs using intracranial EEG (iEEG) in 90 patients with focal epilepsy and 11 patients without epilepsy. In nine patients with epilepsy putative physHFOs were induced by cognitive or motor tasks. HFOs were identified using validated detectors. A support vector machine (SVM) using HFO features was developed to classify tissue under individual electrodes as normal or epileptogenic.

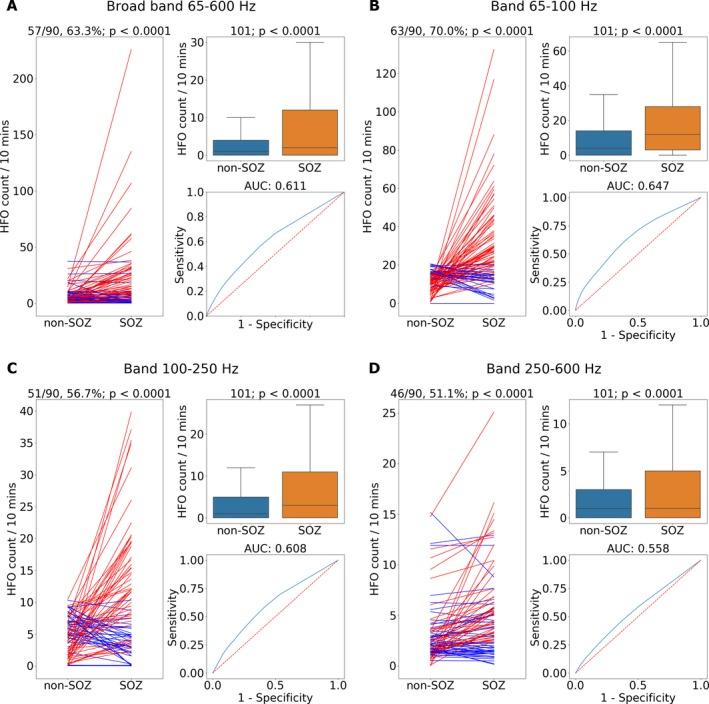

There was significant overlap in the amplitude, frequency, and duration distributions for spontaneous physHFO, task induced physHFO, and pathHFO, but the amplitudes of the pathHFO were higher ( < 0.0001). High gamma pathHFO had the strongest association with seizure onset zone (SOZ), and were elevated on SOZ electrodes in 70% of epilepsy patients ( < 0.0001). Failure to resect tissue generating high gamma pathHFO was associated with poor outcomes ( < 0.0001). A SVM classified individual electrodes as epileptogenic with 63.9% sensitivity and 73.7% specificity using SOZ as the target.
A broader range of interictal pathHFO (65-600 Hz) than previously recognized are biomarkers of epileptogenic brain, and are associated with SOZ and surgical outcome. Classification of HFOs into physiological or pathological remains challenging. Classification of tissue under individual electrodes was demonstrated to be feasible. The open source data and algorithms provide a resource for future studies.
本研究调查高频振荡(HFOs;65 - 600Hz)作为致痫性脑生物标志物的情况,并探讨其临床转化的三个障碍:(1)区分病理性HFOs(pathHFO)与生理性HFOs(physHFO)。(2)将各个电极下的组织分类为致痫性组织。(3)在不同实验室重现结果。
我们使用颅内脑电图(iEEG)记录了90例局灶性癫痫患者和11例非癫痫患者的HFOs。在9例癫痫患者中,通过认知或运动任务诱发了假定的physHFOs。使用经过验证的探测器识别HFOs。开发了一种利用HFO特征的支持向量机(SVM),将各个电极下的组织分类为正常或致痫性组织。
自发性physHFO、任务诱发的physHFO和pathHFO在幅度、频率和持续时间分布上存在显著重叠,但pathHFO的幅度更高(P < 0.0001)。高伽马pathHFO与癫痫发作起始区(SOZ)的关联最强,70%的癫痫患者SOZ电极上的高伽马pathHFO升高(P < 0.0001)。未能切除产生高伽马pathHFO的组织与不良预后相关(P < 0.0001)。以SOZ为目标,SVM将各个电极分类为致痫性组织的灵敏度为63.9%,特异性为73.7%。
比之前认识到的更广泛的发作间期pathHFO(65 - 600Hz)是致痫性脑的生物标志物,且与SOZ和手术结果相关。将HFOs分为生理性或病理性仍然具有挑战性。已证明将各个电极下的组织进行分类是可行的。开源数据和算法为未来研究提供了资源。
