Strączek Tomasz, Fiejdasz Sylwia, Rybicki Damian, Goc Kamil, Przewoźnik Janusz, Mazur Weronika, Nowakowska Maria, Zapotoczny Szczepan, Rumian Stanisław, Kapusta Czesław
AGH University of Science and Technology, Faculty of Physics and Applied Computer Science, Department of Solid State Physics, Mickiewicza 30, 30-059 Krakow, Poland.
Jagiellonian University, Faculty of Chemistry, Gronostajowa 2, 30-387 Kraków, Poland.
Materials (Basel). 2019 Jun 3;12(11):1793. doi: 10.3390/ma12111793.

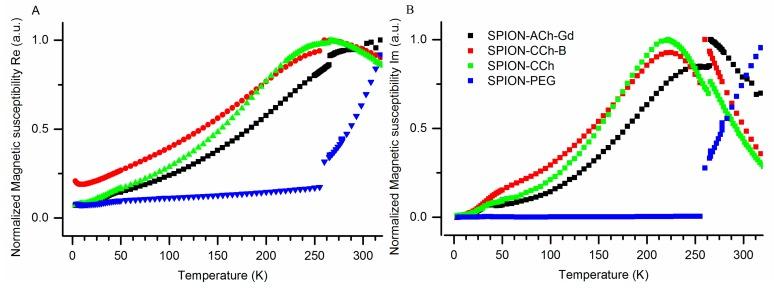

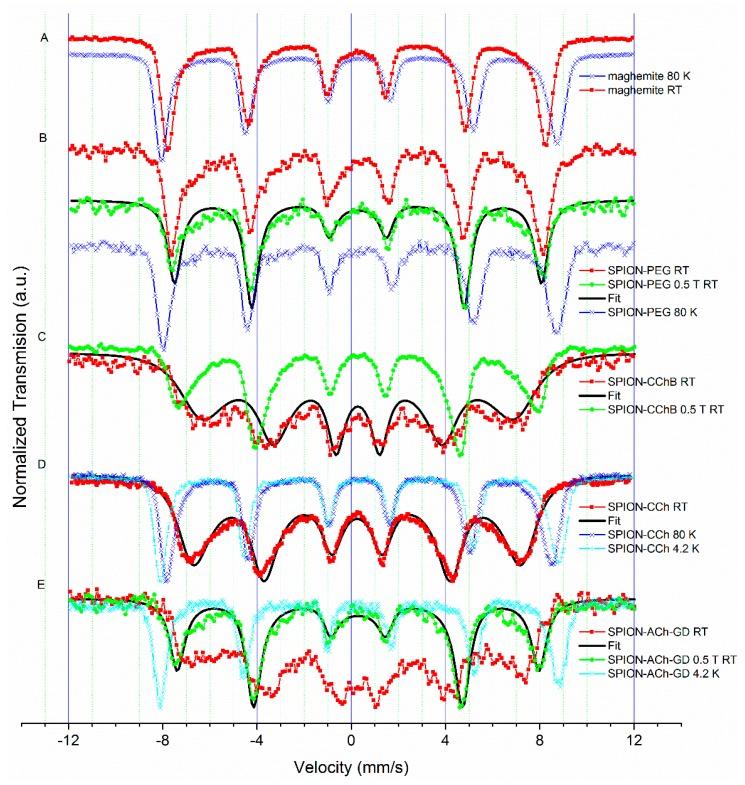

In this article, the results of a study of the magnetic dynamics of superparamagnetic iron oxide nanoparticles (SPIONs) with chitosan and polyethylene glycol (PEG) coatings are reported. The materials were prepared by the co-precipitation method and characterized by X-ray diffraction, dynamic light scattering and scanning transmission electron microscopy. It was shown that the cores contain maghemite, and their hydrodynamic diameters vary from 49 nm for PEG-coated to 200 nm for chitosan-coated particles. The magnetic dynamics of the nanoparticles in terms of the function of temperature was studied with magnetic susceptometry and Mössbauer spectroscopy. Their superparamagnetic fluctuations frequencies, determined from the fits of Mössbauer spectra, range from tens to hundreds of megahertz at room temperature and mostly decrease in the applied magnetic field. For water suspensions of nanoparticles, maxima are observed in the absorption part of magnetic susceptibility and they shift to higher temperatures with increasing excitation frequency. A step-like decrease of the susceptibility occurs at freezing, and from that, the Brown's and Néel's contributions are extracted and compared for nanoparticles differing in core sizes and types of coating. The results are analyzed and discussed with respect to the tailoring of the dynamic properties of these nanoparticle materials for requirements related to the characteristic frequency ranges of MRI and electromagnetic field hyperthermia.
本文报道了对具有壳聚糖和聚乙二醇(PEG)涂层的超顺磁性氧化铁纳米颗粒(SPIONs)的磁动力学研究结果。这些材料通过共沉淀法制备,并通过X射线衍射、动态光散射和扫描透射电子显微镜进行表征。结果表明,其核心包含磁赤铁矿,其流体动力学直径从PEG涂层的49nm到壳聚糖涂层颗粒的200nm不等。利用磁导率测量和穆斯堡尔光谱研究了纳米颗粒在温度函数方面的磁动力学。通过穆斯堡尔光谱拟合确定的它们的超顺磁涨落频率在室温下范围从几十到几百兆赫兹,并且在施加磁场时大多降低。对于纳米颗粒的水悬浮液,在磁化率的吸收部分观察到最大值,并且它们随着激发频率的增加而向更高温度移动。在冻结时磁化率出现阶梯状下降,据此提取并比较了不同核心尺寸和涂层类型的纳米颗粒的布朗贡献和尼尔贡献。针对与MRI和电磁场热疗的特征频率范围相关的要求,对这些纳米颗粒材料的动态特性进行定制,对结果进行了分析和讨论。
