PM on the London Underground.

INTRODUCTION

Despite the London Underground (LU) handling on average 2.8 million passenger journeys per day, the characteristics and potential health effects of the elevated concentrations of metal-rich PM found in this subway system are not well understood.

METHODS

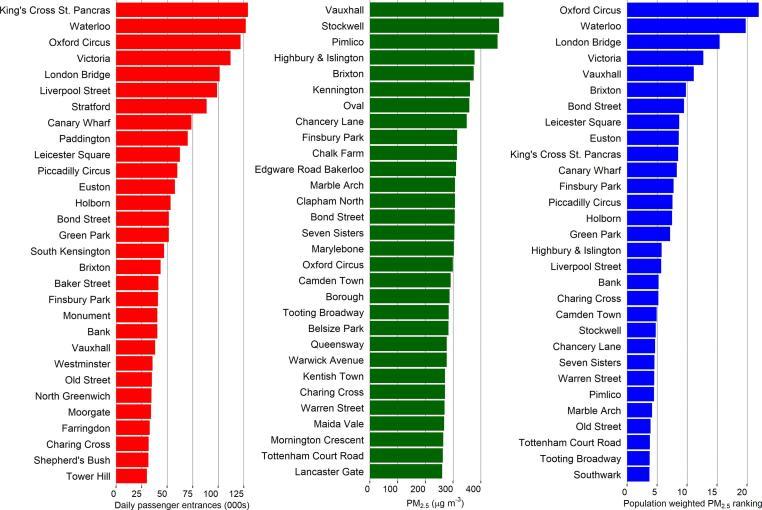

Spatial monitoring campaigns were carried out to characterise the health-relevant chemical and physical properties of PM across the LU network, including diurnal and day-to-day variability and spatial distribution (above ground, depth below ground and subway line). Population-weighted station PM rankings were produced to understand the relative importance of concentrations at different stations and on different lines.

RESULTS

The PM mass in the LU (mean 88 μg m, median 28 μg m) was greater than at ambient background locations (mean 19 μg m, median 14 μg m) and roadside environments in central London (mean 22 μg m, median 14 μg m). Concentrations varied between lines and locations, with the deepest and shallowest submerged lines being the District (median 4 μg m) and Victoria (median 361 μg m but up to 885 μg m). Broadly in agreement with other subway systems around the world, sampled LU PM comprised 47% iron oxide, 7% elemental carbon, 11% organic carbon, and 14% metallic and mineral oxides. Although a relationship between line depth and air quality inside the tube trains was evident, there were clear influences relating to the distance from cleaner outside air and the exchange with cabin air when the doors open. The passenger population-weighted exposure analysis demonstrated a method to identify stations that should be prioritised for remediation to improve air quality.

CONCLUSION

PM concentrations in the LU are many times higher than in other London transport Environments. Failure to include this environment in epidemiological studies of the relationship between PM and health in London is therefore likely to lead to a large exposure misclassification error. Given the significant contribution of underground PM to daily exposure, and the differences in composition compared to urban PM, there is a clear need for well-designed studies to better understand the health effects of underground exposure.
