Department of Radiology, Xijing Hospital, Fourth Military Medical University, No. 169 Changle West Road, Xi'an, 710032, Shaanxi, People's Republic of China.
School of Biomedical Engineering, Fourth Military Medical University, No. 169 Changle West Road, Xi'an, 710032, Shaanxi, People's Republic of China.
Biomed Eng Online. 2020 Jan 21;19(1):5. doi: 10.1186/s12938-019-0744-0.

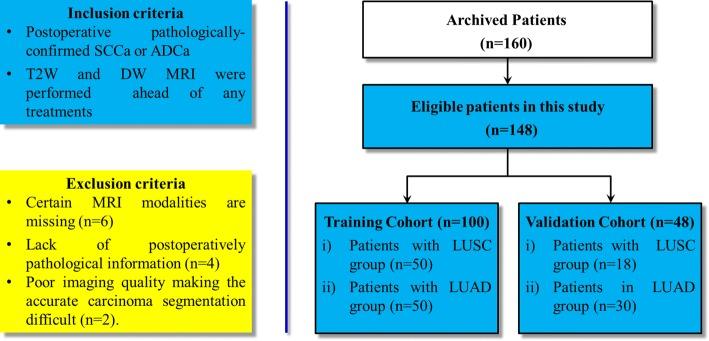

Non-invasive discrimination between lung squamous cell carcinoma (LUSC) and lung adenocarcinoma (LUAD) subtypes of non-small-cell lung cancer (NSCLC) could be very beneficial to the patients unfit for the invasive diagnostic procedures. The aim of this study was to investigate the feasibility of utilizing the multimodal magnetic resonance imaging (MRI) radiomics and clinical features in classifying NSCLC. This retrospective study involved 148 eligible patients with postoperative pathologically confirmed NSCLC. The study was conducted in three steps: (1) feature extraction was performed using the online freely available package with the multimodal MRI data; (2) feature selection was performed using the Student's t test and support vector machine (SVM)-based recursive feature elimination method with the training cohort (n = 100), and the performance of these selected features was evaluated using both the training and the validation cohorts (n = 48) with a non-linear SVM classifier; (3) a Radscore model was then generated using logistic regression algorithm; (4) Integrating the Radscore with the semantic clinical features, a radiomics-clinical nomogram was developed, and its overall performance was evaluated with both cohorts.

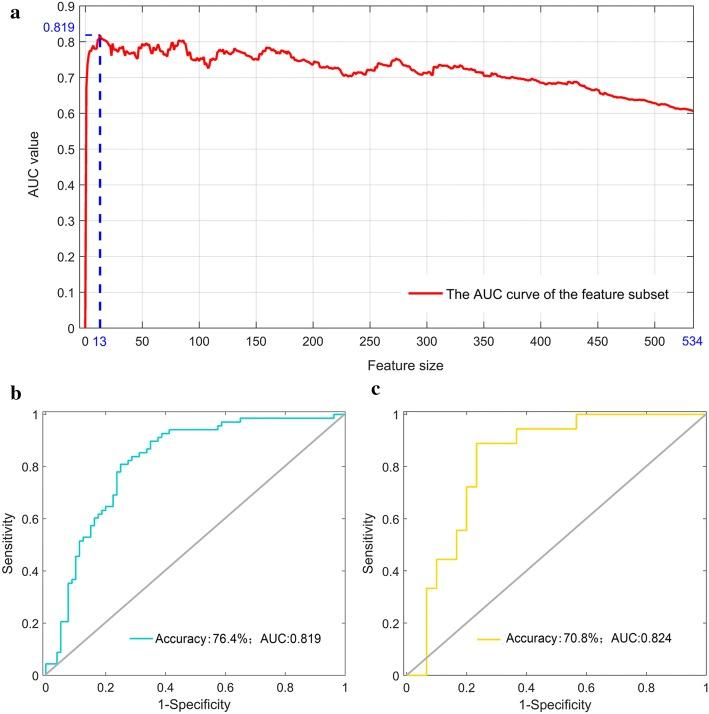

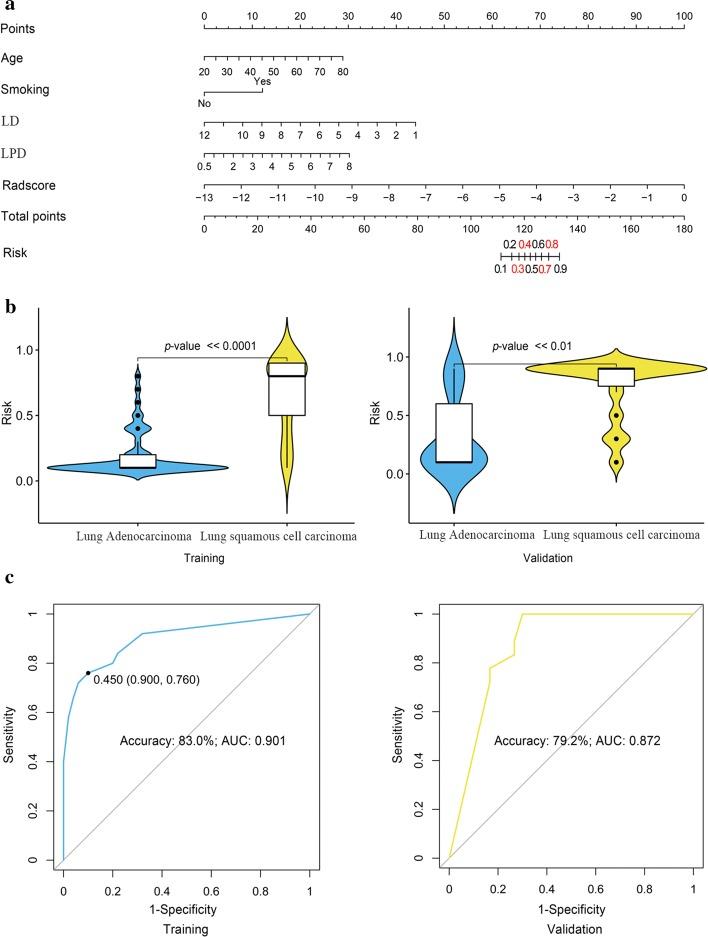

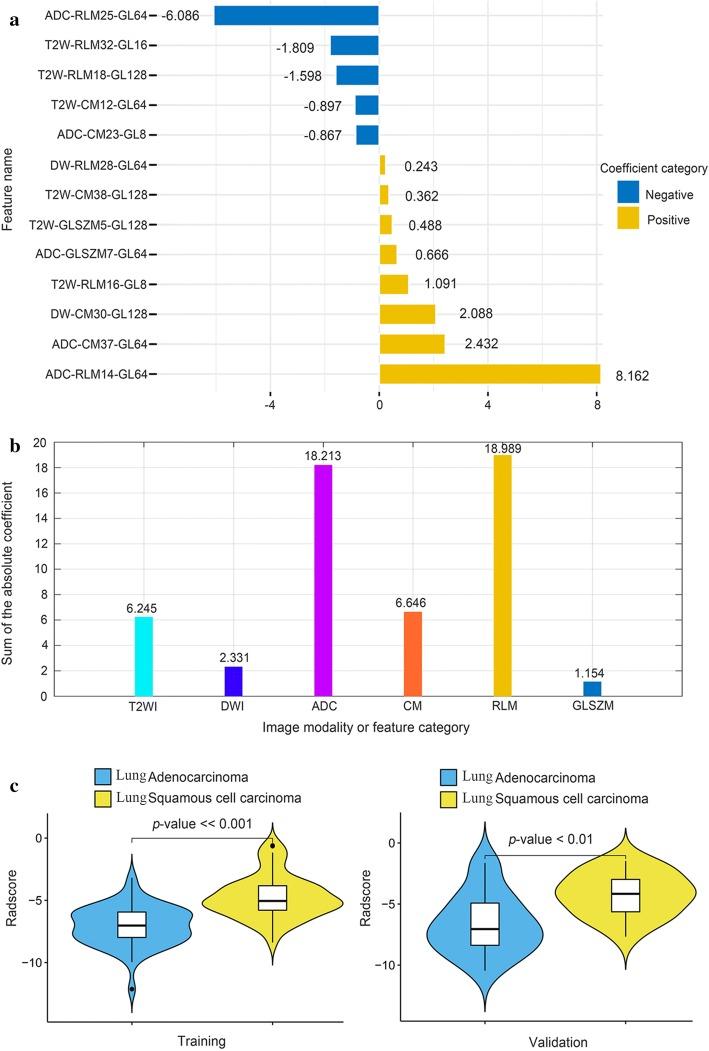

Thirteen optimal features achieved favorable discrimination performance with both cohorts, with area under the curve (AUC) of 0.819 and 0.824, respectively. The radiomics-clinical nomogram integrating the Radscore with the independent clinical predictors exhibited more favorable discriminative power, with AUC improved to 0.901 and 0.872 in both cohorts, respectively. The Hosmer-Lemeshow test and decision curve analysis results furtherly showed good predictive precision and clinical usefulness of the nomogram.
Non-invasive histological subtype stratification of NSCLC can be done favorably using multimodal MRI radiomics features. Integrating the radiomics features with the clinical features could further improve the performance of the histological subtype stratification in patients with NSCLC.
对于不适合侵袭性诊断程序的非小细胞肺癌(NSCLC)患者,无创区分肺鳞状细胞癌(LUSC)和肺腺癌(LUAD)亚型可能非常有益。本研究旨在探讨利用多模态磁共振成像(MRI)放射组学和临床特征对 NSCLC 进行分类的可行性。这项回顾性研究纳入了 148 名术后经病理证实为 NSCLC 的合格患者。该研究分三个步骤进行:(1)使用在线免费提供的包,对多模态 MRI 数据进行特征提取;(2)使用学生 t 检验和基于支持向量机(SVM)的递归特征消除方法,在训练队列(n=100)中进行特征选择,并使用非线性 SVM 分类器评估这些选定特征在训练和验证队列(n=48)中的性能;(3)然后使用逻辑回归算法生成 Radscore 模型;(4)使用集成 Radscore 的语义临床特征,开发放射组学-临床列线图,并使用两个队列评估其整体性能。
在两个队列中,13 个最佳特征均具有良好的区分性能,曲线下面积(AUC)分别为 0.819 和 0.824。将 Radscore 与独立临床预测因子集成的放射组学-临床列线图显示出更好的鉴别能力,AUC 分别提高到 0.901 和 0.872。Hosmer-Lemeshow 检验和决策曲线分析结果进一步表明,该列线图具有良好的预测精度和临床实用性。
使用多模态 MRI 放射组学特征可以很好地对 NSCLC 进行非侵入性的组织学分型分层。将放射组学特征与临床特征相结合可以进一步提高 NSCLC 患者组织学分型分层的性能。
