使用基于扫频光学相干断层扫描的二值化技术分析圆锥角膜患者的脉络膜血管指数

Analysis of Choroidal Vascularity Index in Keratoconus Patients Using Swept-Source Optical Coherence Tomography-Based Binarization Techniques.

作者信息

Gutierrez-Bonet Rosa, Ruiz-Medrano Jorge, Biarnés Marc, Rasheed Mohammed Abdul, Vupparaboina Kiran Kumar, Chhablani Jay, Ruiz-Moreno José M

机构信息

Jules Gonin Eye Hospital Fondation Asile des Aveugles, Lausanne, Switzerland.

Puerta de Hierro-Majadahonda University Hospital, Madrid, Spain.

出版信息

J Ophthalmol. 2020 Jan 8;2020:1682463. doi: 10.1155/2020/1682463. eCollection 2020.

DOI:10.1155/2020/1682463
PMID:32025344
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC6984744/
Abstract

PURPOSE

To analyse the vascular density of the choroid in a keratoconus (KC) population using swept-source optical coherence tomography (SS-OCT).

METHODS

Prospective, noninterventional study that analysed 97 eyes from 52 KC patients and 145 eyes from 89 healthy controls. The sample was divided in four different age groups. Inclusion criteria were topographic diagnosis of KC using Pentacam, axial length shorter than 26 mm, good quality of the images, and no other systemic or ocular diseases. A 12 mm horizontal single-line SS-OCT b-scan was performed to create a choroidal thickness (CT) profile. Validated automated segmentation and binarization were used in order to analyse choroidal, stromal, and vascular areas.

RESULTS

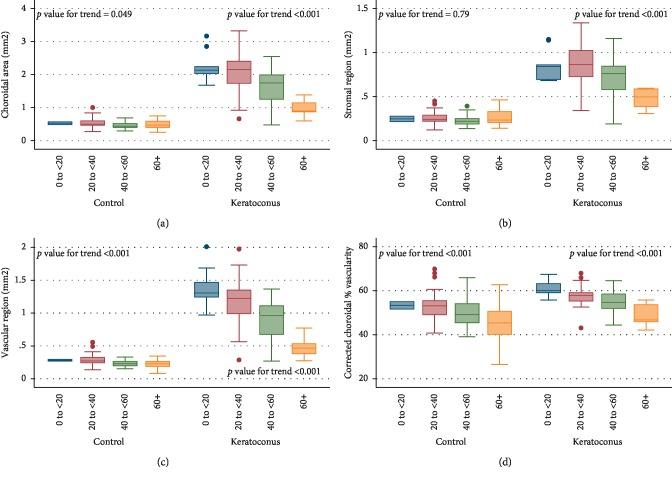

The percentage of choroidal vascularity (vascular area/total area) was 56.6% in KC patients vs. 49.4% in controls. Aged-adjusted choroidal, stromal, and vascular areas and corrected choroidal percentage of vascularity are statistically increased in KC patients when compared with healthy controls ( < 0.001). All these parameters show a decreasing trend with age. Both stromal and vascular areas were thicker in KC patients ( < 0.001).

CONCLUSIONS

Choroidal, stromal, and vascular areas and corrected choroidal percentage of vascularity are statistically increased in KC patients when compared with healthy controls. All these parameters tend to decrease with age.

摘要

目的

使用扫频光学相干断层扫描(SS - OCT)分析圆锥角膜(KC)患者脉络膜的血管密度。

方法

前瞻性、非干预性研究,分析了52例KC患者的97只眼和89名健康对照者的145只眼。样本分为四个不同年龄组。纳入标准为使用Pentacam进行KC的地形图诊断、眼轴长度短于26mm、图像质量良好且无其他全身或眼部疾病。进行一次12mm水平单线SS - OCT B扫描以创建脉络膜厚度(CT)剖面图。使用经过验证的自动分割和二值化来分析脉络膜、基质和血管区域。

结果

KC患者脉络膜血管化百分比(血管面积/总面积)为56.6%,而对照组为49.4%。与健康对照相比,KC患者经年龄调整的脉络膜、基质和血管面积以及校正后的脉络膜血管化百分比在统计学上增加(<0.001)。所有这些参数均显示出随年龄下降的趋势。KC患者的基质和血管面积均更厚(<0.001)。

结论

与健康对照相比,KC患者的脉络膜、基质和血管面积以及校正后的脉络膜血管化百分比在统计学上增加。所有这些参数都倾向于随年龄下降。
