Clinic of Operative Dentistry, Periodontology and Preventive Dentistry, Saarland University Hospital, D-66421 Homburg, Saarland, Germany.
Scanning. 2020 May 5;2020:6065739. doi: 10.1155/2020/6065739. eCollection 2020.

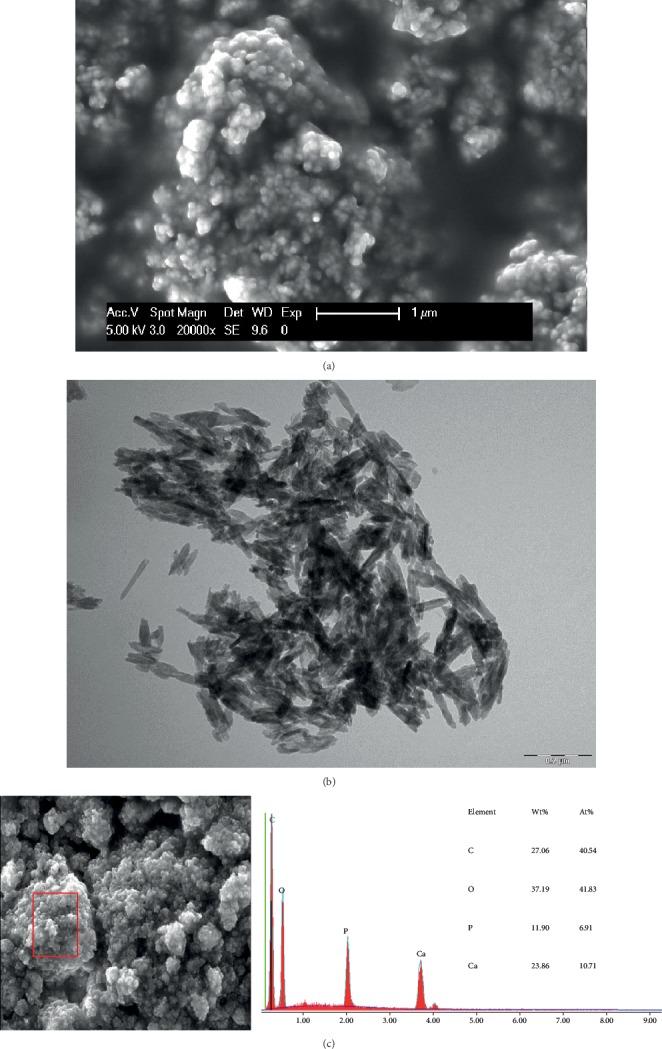

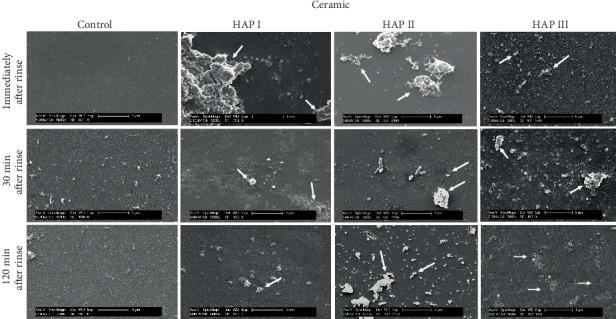

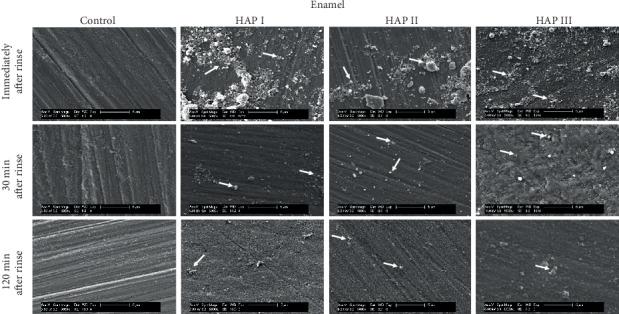

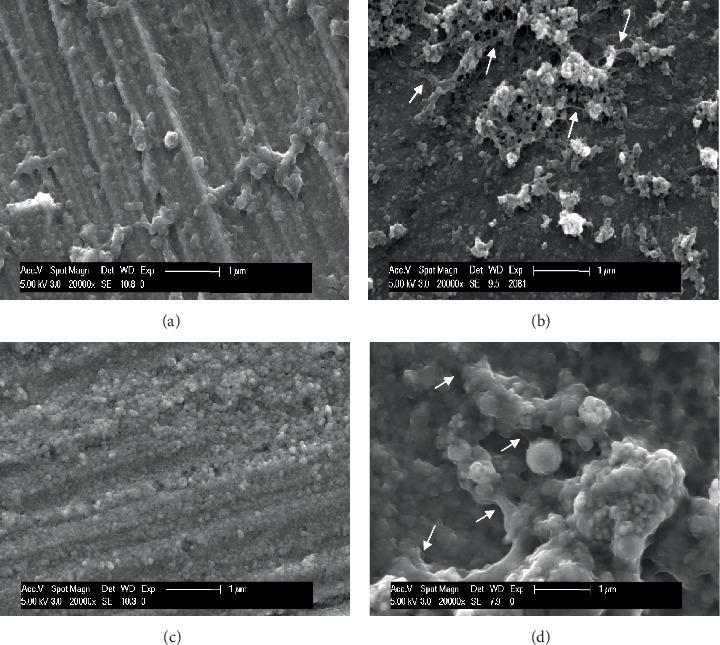

Hydroxyapatite nanoparticles (nano-HAP) are receiving considerable attention for dental applications, and their adhesion to enamel is well established. However, there are no reports concerning the effects of HAP on other dental materials, and most of the studies in this field are based on designs, neglecting the salivary pellicle-apatite interactions. Thus, this pilot study aims to evaluate the effects of three hydroxyapatite-based solutions and their interactions with different dental material surfaces under oral conditions. Hence, two volunteers carried intraoral splints with mounted samples from enamel and from three dental materials: titanium, ceramics, and polymethyl-methacrylate (PMMA). Three HAP watery solutions (5%) were prepared with different shapes and sizes of nano-HAP (HAP I, HAP II, HAP III). After 3 min of pellicle formation, 10 ml rinse was performed during 30 sec. Rinsing with water served as control. Samples were accessed immediately after rinsing, 30 min and 2 h after rinsing. Scanning electron microscopy (SEM) and transmission electron microscopy (TEM) were used to characterize the particles, and SEM evaluated the pellicle-HAP interactions. SEM and TEM results showed a high variation in the size range of the particles applied. A heterogeneous HAP layer was present after 2 h on enamel, titanium, ceramics, and PMMA surfaces under oral conditions. Bridge-like structures were visible between the nano-HAP and the pellicle formed on enamel, titanium, and PMMA surfaces. In conclusion, nano-HAP can adhere not only to enamel but also to artificial dental surfaces under oral conditions. The experiment showed that the acquired pellicle act as a bridge between the nano-HAP and the materials' surface.
羟基磷灰石纳米颗粒(nano-HAP)在牙科应用中受到广泛关注,其对牙釉质的黏附性已得到证实。然而,目前尚无关于 HAP 对其他牙科材料影响的报道,而且该领域的大多数研究都是基于 设计,忽略了唾液膜-磷灰石的相互作用。因此,本初步研究旨在评估三种基于羟基磷灰石的溶液及其在口腔条件下与不同牙科材料表面相互作用的影响。因此,两名志愿者佩戴带有牙釉质和三种牙科材料(钛、陶瓷和聚甲基丙烯酸甲酯(PMMA))样本的口腔内夹板。制备了三种不同形状和大小纳米 HAP(HAP I、HAP II、HAP III)的 5%羟基磷灰石水溶胶。形成 3 分钟的唾液膜后,用 10ml 冲洗液冲洗 30 秒。用水冲洗作为对照。冲洗后立即、30 分钟和 2 小时后对样本进行评估。扫描电子显微镜(SEM)和透射电子显微镜(TEM)用于表征颗粒,SEM 评估了唾液膜-HAP 的相互作用。SEM 和 TEM 结果显示,应用的颗粒尺寸范围变化很大。在口腔条件下,牙釉质、钛、陶瓷和 PMMA 表面在 2 小时后均存在不均匀的 HAP 层。在牙釉质、钛和 PMMA 表面,可见到纳米 HAP 和形成的唾液膜之间的桥状结构。结论是,纳米 HAP 不仅可以黏附在牙釉质上,而且可以在口腔条件下黏附在人工牙科表面上。实验表明,获得的唾液膜在纳米 HAP 和材料表面之间起到桥梁作用。
