Department of Anesthesiology, Lausanne University Hospital and University of Lausanne, Lausanne, Switzerland.
CSEM, Swiss Center for Electronics and Microtechnology, Neuchâtel, Switzerland.
Sci Rep. 2020 Oct 20;10(1):17827. doi: 10.1038/s41598-020-74955-4.

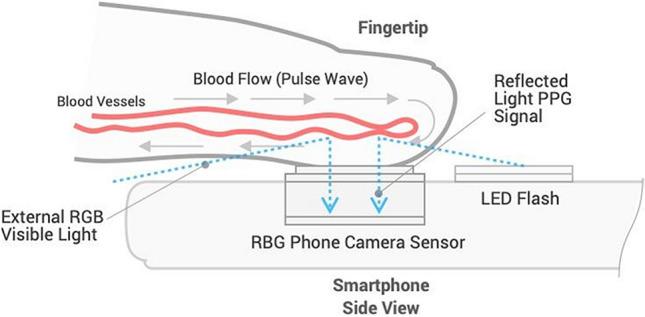

Mobile health diagnostics have been shown to be effective and scalable for chronic disease detection and management. By maximizing the smartphones' optics and computational power, they could allow assessment of physiological information from the morphology of pulse waves and thus estimate cuffless blood pressure (BP). We trained the parameters of an existing pulse wave analysis algorithm (oBPM), previously validated in anaesthesia on pulse oximeter signals, by collecting optical signals from 51 patients fingertips via a smartphone while simultaneously acquiring BP measurements through an arterial catheter. We then compared smartphone-based measurements obtained on 50 participants in an ambulatory setting via the OptiBP app against simultaneously acquired auscultatory systolic blood pressure (SBP), diastolic blood pressure (DBP) and mean blood pressure (MBP) measurements. Patients were normotensive (70.0% for SBP versus 61.4% for DBP), hypertensive (17.1% vs. 13.6%) or hypotensive (12.9% vs. 25.0%). The difference in BP (mean ± standard deviation) between both methods were within the ISO 81,060-2:2018 standard for SBP (- 0.7 ± 7.7 mmHg), DBP (- 0.4 ± 4.5 mmHg) and MBP (- 0.6 ± 5.2 mmHg). These results demonstrate that BP can be measured with accuracy at the finger using the OptiBP smartphone app. This may become an important tool to detect hypertension in various settings, for example in low-income countries, where the availability of smartphones is high but access to health care is low.
移动医疗诊断已被证明在慢性病检测和管理方面是有效且可扩展的。通过最大限度地利用智能手机的光学和计算能力,它们可以评估来自脉搏波形态的生理信息,从而估计无袖带血压(BP)。我们通过智能手机从 51 名患者指尖采集光学信号,同时通过动脉导管采集 BP 测量值,对先前在麻醉中经脉搏血氧仪信号验证的现有脉搏波分析算法(oBPM)的参数进行了训练。然后,我们将通过 OptiBP 应用程序在 50 名参与者的日常环境中获得的基于智能手机的测量值与同时获得的听诊收缩压(SBP)、舒张压(DBP)和平均血压(MBP)测量值进行了比较。患者血压正常(SBP 的 70.0%与 DBP 的 61.4%)、高血压(17.1%与 13.6%)或低血压(12.9%与 25.0%)。两种方法之间的 BP(平均值±标准差)差异均符合 ISO 81,060-2:2018 标准,SBP(-0.7±7.7mmHg)、DBP(-0.4±4.5mmHg)和 MBP(-0.6±5.2mmHg)。这些结果表明,使用 OptiBP 智能手机应用程序可以在手指上准确测量 BP。这可能成为在各种环境中检测高血压的重要工具,例如在智能手机可用性高但医疗保健获取率低的低收入国家。
