Salah Dina, Moghanm Farahat S, Arshad Muhammad, Alanazi Abdulaziz A, Latif Salman, El-Gammal Maie I, Shimaa Elmahdy M, Elsayed Salah
Biophysics Group, Physics Department, Ain Shams University, Cairo 11566, Egypt.
Soil and Water Department, Faculty of Agriculture, Kafrelsheikh University, Kafr El-Sheikh 33516, Egypt.
Diagnostics (Basel). 2021 Jun 30;11(7):1196. doi: 10.3390/diagnostics11071196.

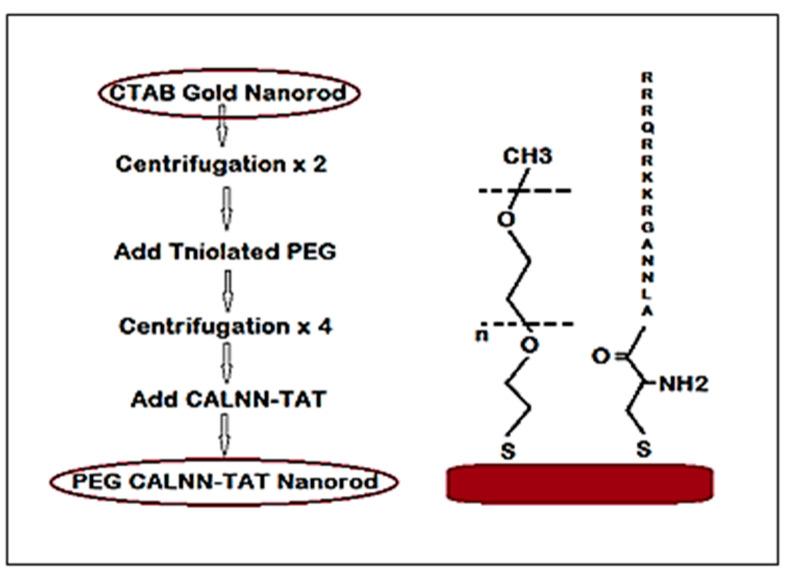

The use of gold nanorods (GNRs) as a contrast agent in bioimaging and cell tracking has numerous advantages, primarily due to the unique optical properties of gold nanorods which allow for the use of infrared regions when imaging. Owing to their unique geometry, Au NRs exhibit surface plasmon modes in the near-infrared wavelength range, which is ideal for carrying out optical measurements in biological fluids and tissue. Gold nanorod functionalization is essential, since the Cetyltrimethyl ammonium bromide CTAB gold nanorods are toxic, and for further in vitro and in vivo experiments the nanorods should be functionalized to become optically stable and biocompatible. In the present study, gold nanorods with an longitudinal surface plasmon resonance (LSPR) position around 800 nm were synthesized in order to be used for photoacoustic imaging applications for stem cell tracking. The gold nanorods were functionalized using both thiolated poly (ethylene glycol) (PEG) to stabilize the gold nanorods surface and a CALNN-TAT peptide sequence. Both ligands were attached to the gold nanorods through an Au-sulfur bond. CALNN-TAT is known as a cell penetrating peptide which ensures endocytosis of the gold nanorods inside the mesenchymal stem cells of mice (MSCD1). Surface modifications of gold nanorods were achieved using optical spectroscopy (UV-VIS), electron microscopy (TEM), zeta-potential, and FTIR. Gold nanorods were incubated in MSCD1 in order to achieve a cellular uptake that was characterized by a transmission electron microscope (TEM). For photoacoustic imaging, Multi-Spectral Optoacoustic Tomography (MSOT) was used. The results demonstrated good cellular uptake for PEG-CALNN-TAT GNRs and the successful use of modified gold nanorods as both a contrast agent in photoacoustic imaging and as a novel tracking bioimaging technique.
将金纳米棒(GNRs)用作生物成像和细胞追踪的造影剂具有诸多优势,这主要归因于金纳米棒独特的光学性质,使其在成像时能够利用红外区域。由于其独特的几何形状,金纳米棒在近红外波长范围内呈现表面等离子体模式,这对于在生物流体和组织中进行光学测量而言是理想的。金纳米棒功能化至关重要,因为十六烷基三甲基溴化铵(CTAB)金纳米棒具有毒性,为了进一步开展体外和体内实验,纳米棒应进行功能化处理,以使其具有光学稳定性和生物相容性。在本研究中,合成了纵向表面等离子体共振(LSPR)位置在800nm左右的金纳米棒,用于干细胞追踪的光声成像应用。使用硫醇化聚乙二醇(PEG)稳定金纳米棒表面,并利用CALNN - TAT肽序列对金纳米棒进行功能化。两种配体均通过金 - 硫键连接到金纳米棒上。CALNN - TAT是一种细胞穿透肽,可确保金纳米棒被小鼠间充质干细胞(MSCD1)内吞。通过光谱学(紫外 - 可见光谱)、电子显微镜(透射电子显微镜)、ζ电位和傅里叶变换红外光谱对金纳米棒进行表面修饰。将金纳米棒与MSCD1一起孵育,以实现细胞摄取,并用透射电子显微镜(TEM)对其进行表征。对于光声成像,使用了多光谱光声断层扫描(MSOT)。结果表明,PEG - CALNN - TAT GNRs具有良好的细胞摄取能力,并且修饰后的金纳米棒成功用作光声成像的造影剂以及一种新型的追踪生物成像技术。
