Translational Neuroradiology Section, National Institute of Neurological disorders and Stroke (NINDS), National Institutes of Health (NIH), Bethesda, MD.
Department of Neurology, Tel Aviv Sourasky Medical Center, Tel Aviv-Yafo, Israel.
Ann Neurol. 2021 Oct;90(4):612-626. doi: 10.1002/ana.26194. Epub 2021 Sep 2.
OBJECTIVE: To noninvasively assess myelin status in chronic white matter lesions of multiple sclerosis (MS), we developed and evaluated a simple classification scheme based on T1 relaxation time maps derived from 7-tesla postmortem and in vivo MRI. METHODS: Using the MP2RAGE MRI sequence, we classified 36 lesions from 4 postmortem MS brains as "long-T1," "short-T1," and "mixed-T1" by visual comparison to neocortex. Within these groups, we compared T1 times to histologically derived measures of myelin and axons. We performed similar analysis of 235 chronic lesions with known date of onset in 25 MS cases in vivo and in a validation cohort of 222 lesions from 66 MS cases, investigating associations with clinical and radiological outcomes. RESULTS: Postmortem, lesions classified qualitatively as long-T1, short-T1, and mixed-T1 corresponded to fully demyelinated, fully remyelinated, and mixed demyelinated/remyelinated lesions, respectively (p ≤ 0.001). Demyelination (rather than axon loss) dominantly contributed to initial T1 prolongation. We observed lesions with similar characteristics in vivo, allowing manual classification with substantial interrater and excellent intrarater reliability. Short-T1 lesions were most common in the deep white matter, whereas long-T1 and mixed-T1 lesions were prevalent in the juxtacortical and periventricular white matter (p = 0.02) and were much more likely to have paramagnetic rims suggesting chronic inflammation (p < 0.001). Older age at the time of lesion formation portended less remyelination (p = 0.007). INTERPRETATION: 7-tesla T1 mapping with MP2RAGE, a clinically available MRI method, allows qualitative and quantitative classification of chronic MS lesions according to myelin content, rendering straightforward the tracking of lesional myelination changes over time. ANN NEUROL 2021;90:612-626.
目的:为了无创性评估多发性硬化症(MS)慢性白质病变中的髓鞘状态,我们开发并评估了一种基于 7T 尸检和活体 MRI 衍生 T1 弛豫时间图的简单分类方案。

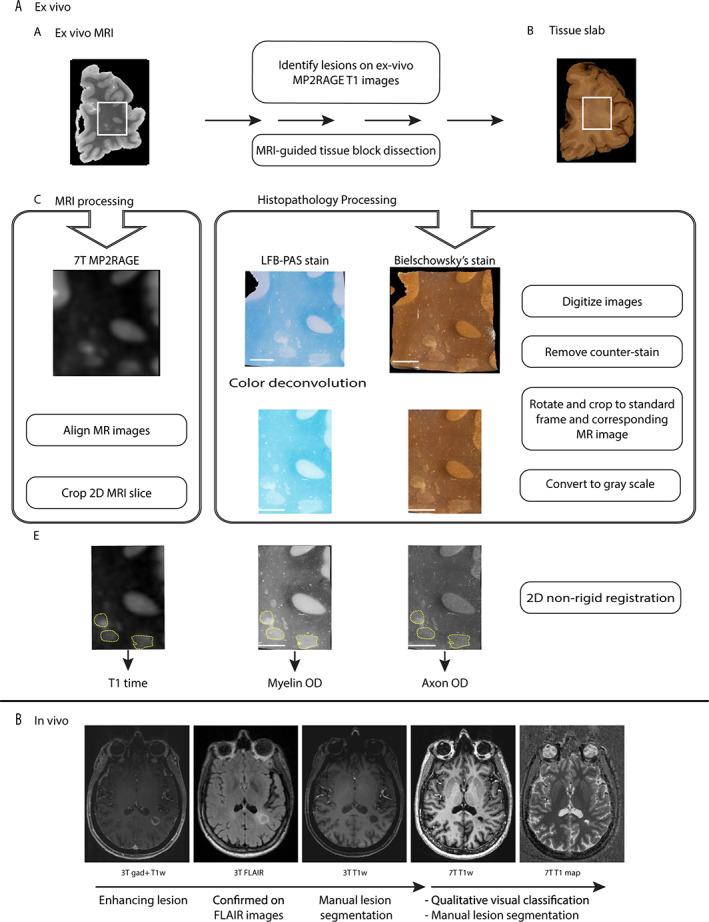

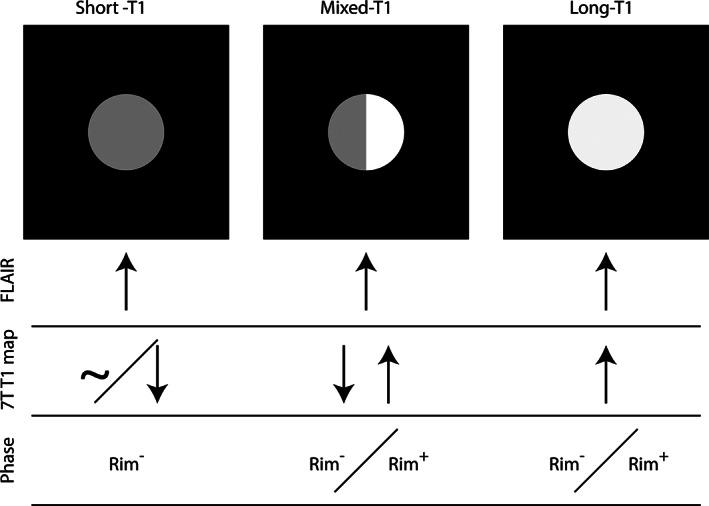

方法:使用 MP2RAGE MRI 序列,我们通过与新皮质进行视觉比较,将 4 例尸检 MS 大脑中的 36 个病变分为“长 T1”、“短 T1”和“混合 T1”。在这些组中,我们将 T1 时间与组织学衍生的髓鞘和轴突测量值进行了比较。我们对 25 例 MS 患者的 235 个具有已知发病日期的慢性病变进行了类似的分析,并在 66 例 MS 患者的 222 个病变的验证队列中进行了分析,调查了与临床和放射学结果的相关性。

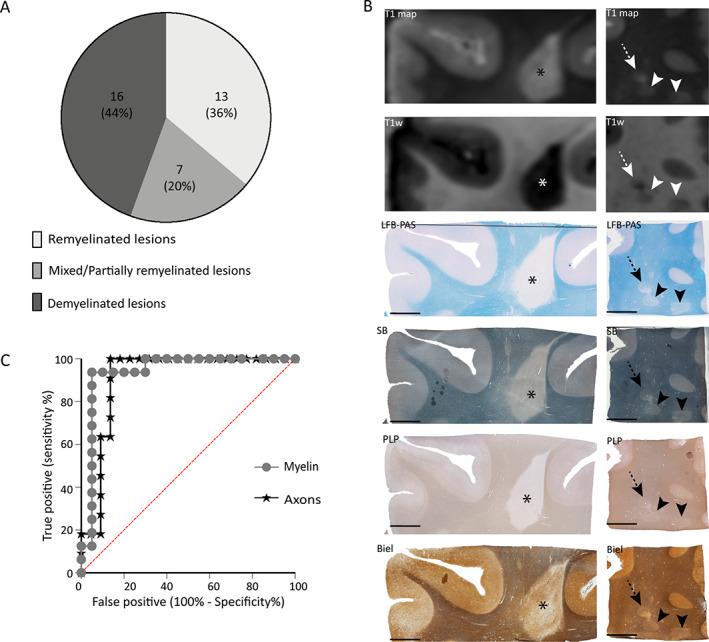

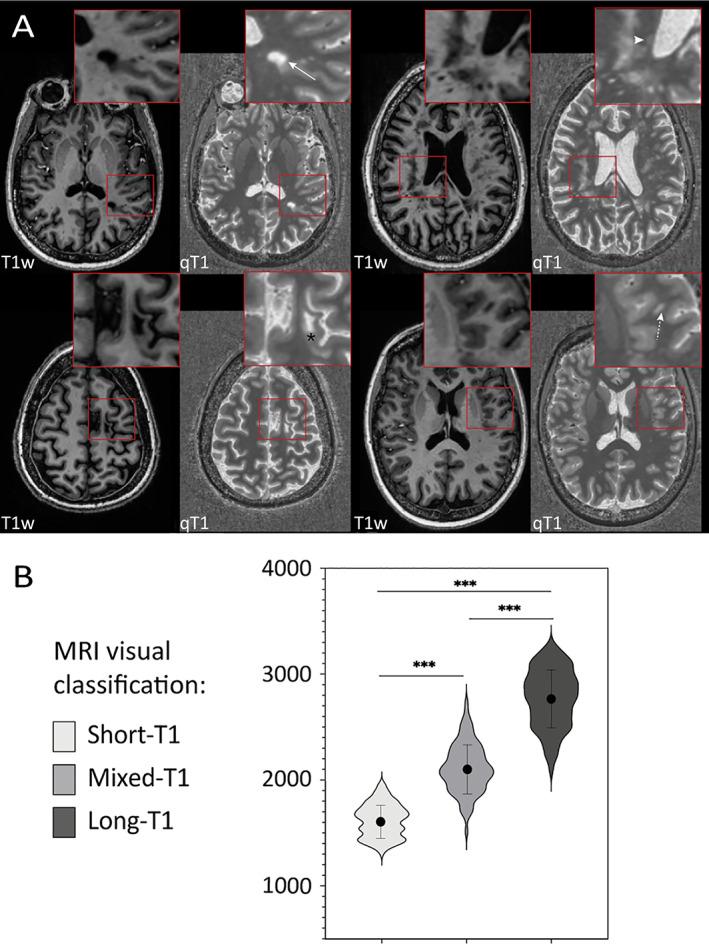

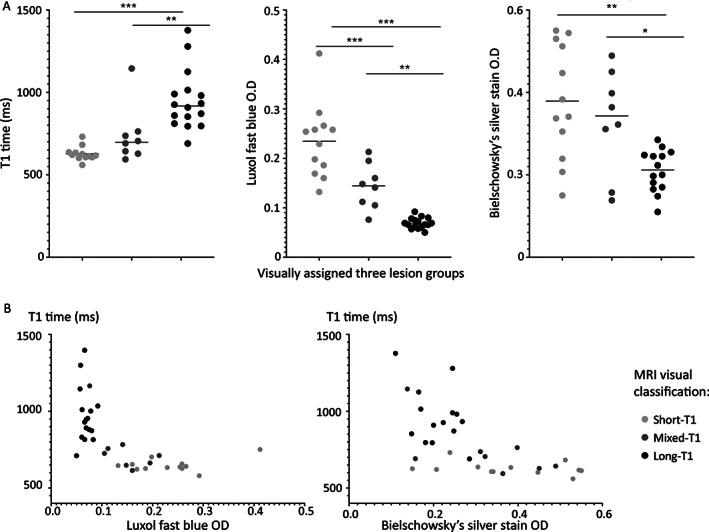

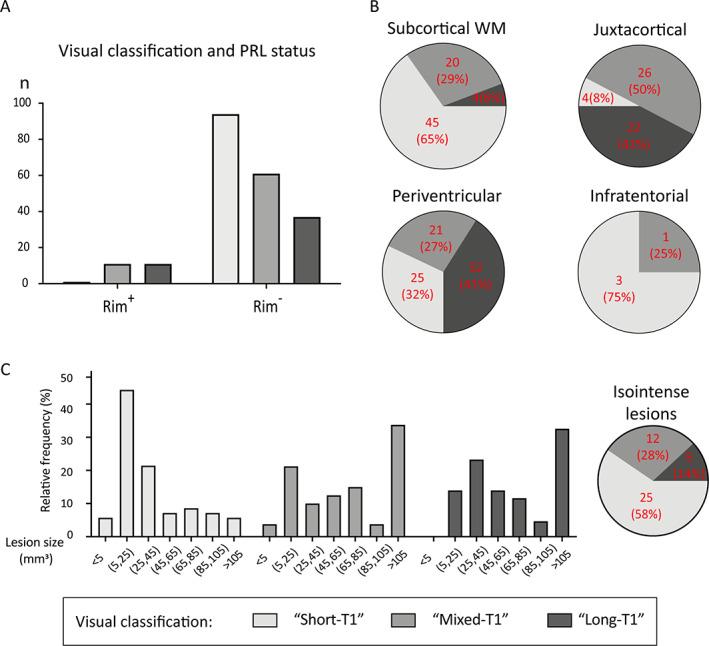

结果:在尸检中,定性分类为长 T1、短 T1 和混合 T1 的病变分别对应完全脱髓鞘、完全髓鞘化和混合脱髓鞘/髓鞘化病变(p≤0.001)。最初的 T1 延长主要是脱髓鞘(而非轴突丢失)所致。我们在活体中观察到具有相似特征的病变,允许进行手动分类,具有较高的组内和组间可靠性。短 T1 病变最常见于深部白质,而长 T1 和混合 T1 病变则常见于皮质下和脑室周围白质(p=0.02),并且更有可能具有顺磁性边缘,提示慢性炎症(p<0.001)。病变形成时年龄较大预示着较少的髓鞘再生(p=0.007)。

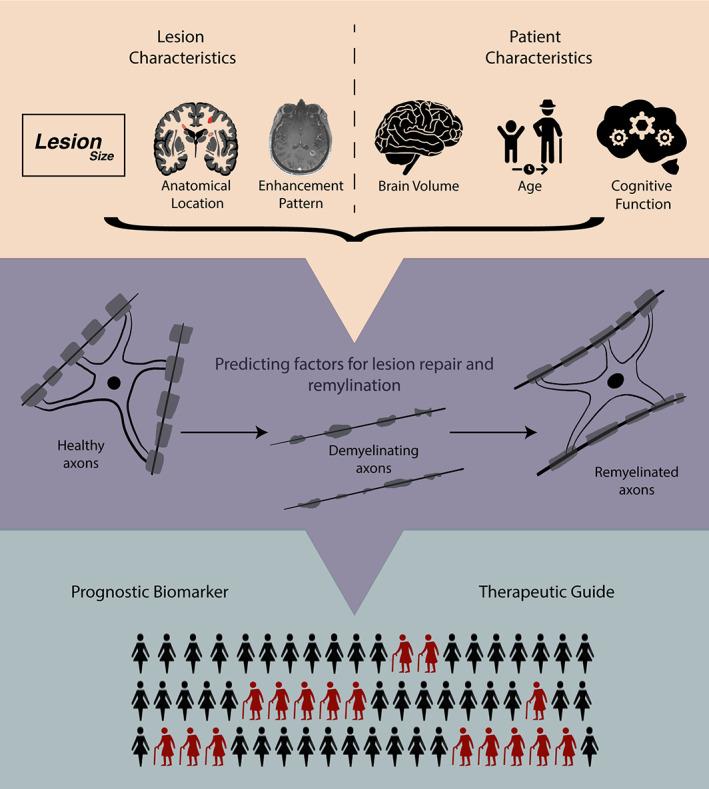

解释:7T 磁共振成像的 MP2RAGE T1 映射是一种临床可用的 MRI 方法,它可以根据髓鞘含量对 MS 慢性病变进行定性和定量分类,从而可以轻松跟踪病变的髓鞘变化随时间的推移。神经病学年鉴 2021;90:612-626。
