Effect of Clinically Relevant Smear Layers and pH of Universal Adhesives on Dentin Bond Strength and Durability.

PURPOSE

To evaluate the effects of different smear layers on the microtensile bond strength (µTBS) of a reference two-step self-etch adhesive and two universal adhesives.

MATERIALS AND METHODS

Mid-coronal dentin of 90 teeth was exposed and divided into three bur groups (coarse diamond, fine diamond, or tungsten carbide). Each bur-prepared group was further divided into three adhesive groups: Clearfil SE Bond (SE, Kuraray Noritake), Single Bond Universal (SB; 3M Oral Care), and G-Premio Bond (GP, GC). After adhesive application, 4-mm-thick resin composites were built up. Half of the teeth in each bur-adhesive group were used in immediate µTBS testing, and the others were tested after thermal aging (n = 5). Rectangular sticks were prepared using a low-speed diamond saw. For each tooth, 6 central sticks were used in the µTBS test. Statistical analysis was performed using three-way ANOVA and Bonferroni tests (α = 0.05).

RESULTS

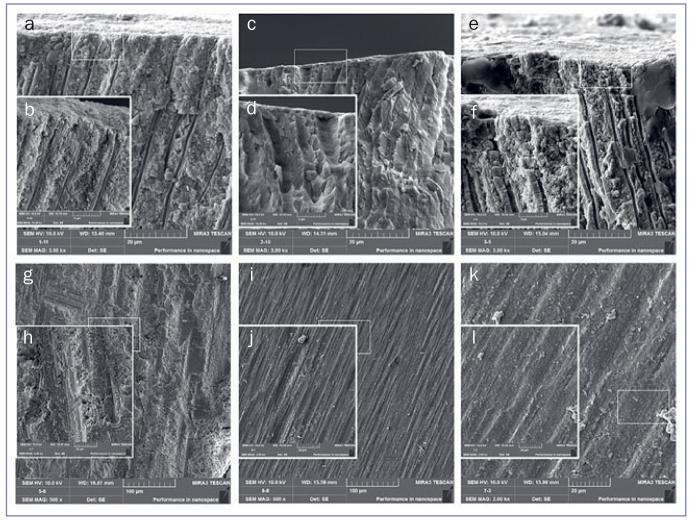

SE presented higher µTBS than universal adhesives and SB presented higher µTBS than GP regardless of dentin surface preparation and thermal aging (p ˂ 0.05). For SE and SB, the tungsten carbide bur demonstrated higher immediate and aged µTBS than did the extra-fine diamond bur (p ˂ 0.05). The immediate µTBS was similar for GP with all bur types (p ˃ 0.05); the tungsten carbide and extra-fine diamond burs presented higher µTBS than did the coarse-diamond bur after thermal aging (p ˂ 0.05).

CONCLUSION

Dentin surface preparation and adhesive type had significant effects on µTBS. The smear layer created with an extra-fine diamond or tungsten carbide bur is favorable when mild and ultra-mild self-etch adhesives are used.
