Yanagisawa Naoki, Ikeda Takayuki, Takatsu Masaki, Urata Kentaro, Nishio Kensuke, Tanaka Hideki, Kawato Takayuki, Iinuma Toshimitsu
Department of Complete Denture Prosthodontics, Nihon University School of Dentistry, 1-8-13 Kanda Surugadai, Chiyoda-ku, Tokyo 101-8310, Japan.
Department of Oral Health Sciences, Nihon University School of Dentistry, 1-8-13 Kanda Surugadai, Chiyoda-ku, Tokyo 101-8310, Japan.
Biomimetics (Basel). 2022 Oct 14;7(4):164. doi: 10.3390/biomimetics7040164.

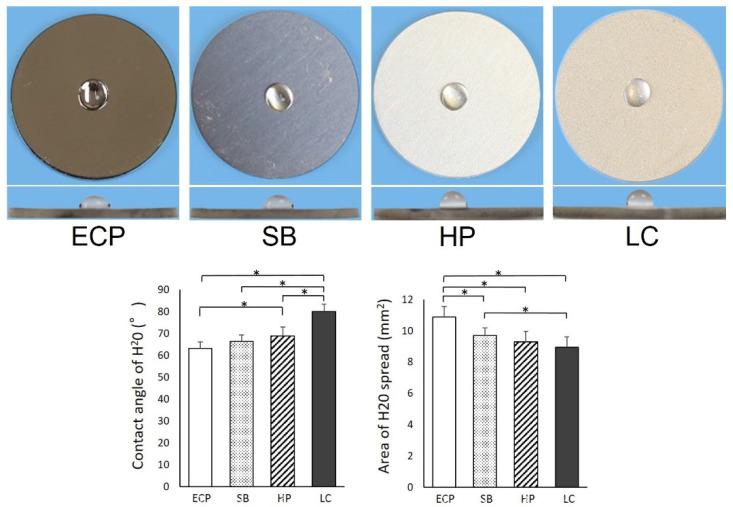

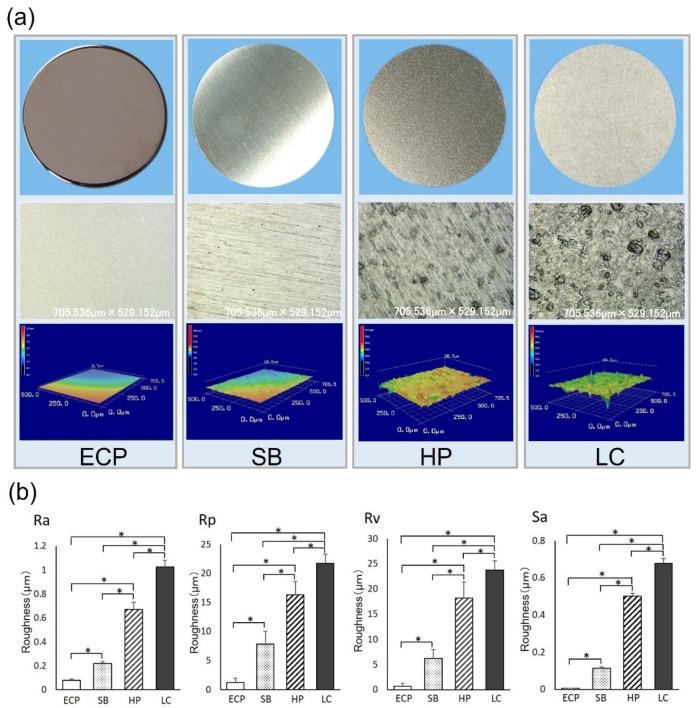

Peri-implantitis is a significant problem associated with dental implants. It has been hypothesized that creating a soft-tissue seal around the implant neck prevents peri-implantitis. This study aims to clarify the effects of the surface smoothness of titanium disks on soft tissues. Thus, titanium disks were prepared through electrolytic composite polishing (ECP), sisal buffing (SB), hairline polishing (HP), and laser cutting (LC). The surface roughness values of seven items was measured. For ECP, SB, HP, and LC samples, the Ra values were 0.075, 0.217, 0.671, and 1.024 μm and the Sa values were 0.005, 0.115, 0.500, and 0.676, respectively, indicating that the surface roughness was remarkably lower with ECP. Moreover, the Wsk values for ECP, SB, HP, and LC were 0.521, 1.018, -0.678, and -0.558, respectively. The smooth surfaces produced by ECP and SB were biased toward the concave surface, whereas those produced by HP and LC were biased toward the convex surface. The Rku values for ECP, SB, HP, and LC were 2.984, 11.774, 14.182, and 26.232, respectively. Only the ECP exhibited a moderate bias peak and produced an extremely smooth surface. The contact angles in the cases of ECP, SB, HP, and LC were 60.1°, 66.3°, 68.4°, and 79.3°, respectively, indicating the hydrophobicity of the titanium disks. Human oral fibroblasts were then incubated on each disk for 24 and 48 h to measure cell attachment, and no significant differences were observed. The differences in Ra and Sa did not affect cell attachment. Therefore, by applying ECP to the abutment or implant neck, the cell attachment required for soft-tissue formation while preventing bacterial adhesion can be achieved.

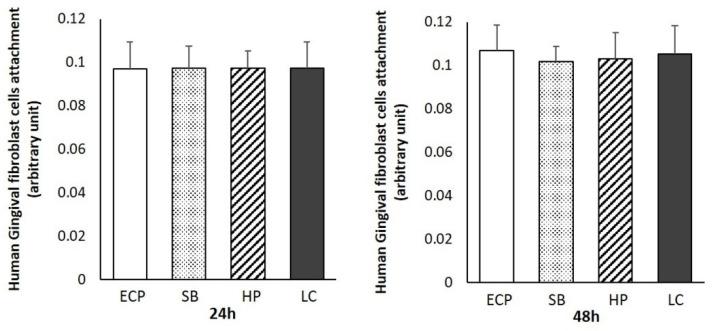

种植体周围炎是与牙种植体相关的一个重要问题。据推测,在种植体颈部形成软组织封闭可预防种植体周围炎。本研究旨在阐明钛盘表面光滑度对软组织的影响。因此,通过电解复合抛光(ECP)、剑麻抛光(SB)、发丝抛光(HP)和激光切割(LC)制备了钛盘。测量了七个项目的表面粗糙度值。对于ECP、SB、HP和LC样品,其Ra值分别为0.075、0.217、0.671和1.024μm,Sa值分别为0.005、0.115、0.500和0.676,表明ECP的表面粗糙度明显更低。此外,ECP、SB、HP和LC的Wsk值分别为0.521、1.018、-0.678和-0.558。ECP和SB产生的光滑表面偏向凹面,而HP和LC产生的光滑表面偏向凸面。ECP、SB、HP和LC的Rku值分别为2.984、11.774、14.182和26.232。只有ECP呈现出适度的偏峰并产生了极其光滑的表面。ECP、SB、HP和LC情况下的接触角分别为60.1°、66.3°、68.4°和79.3°,表明钛盘具有疏水性。然后将人口腔成纤维细胞在每个盘上孵育24小时和48小时以测量细胞附着情况,未观察到显著差异。Ra和Sa的差异不影响细胞附着。因此,通过将ECP应用于基台或种植体颈部,可以在防止细菌粘附的同时实现软组织形成所需的细胞附着。
