A biomimetic gradient porous cage with a micro-structure for enhancing mechanical properties and accelerating osseointegration in spinal fusion.

OBJECTIVES

Spinal fusion is a widely employed treatment of patients with degenerative disc disease, in which a cage is used to replace the disc for spinal fusion. But it often fails for insufficient mechanical strength and poor osseointegration. Here, we designed a polyether-ether-ketone (PEEK)/tantalum (Ta) composite cage with a biomimetic gradient porous micro-structure, simultaneously enhancing mechanical properties and accelerating osseointegration in spinal fusion.

MATERIALS AND METHODS

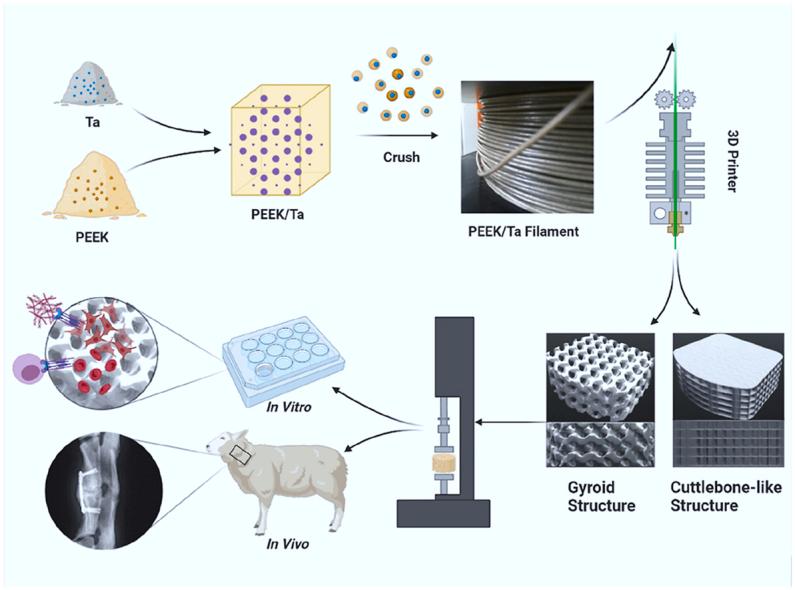

In the study, based on the mechanical performances of PEEK and osteogenic potential of Ta, and the three-dimensional (3D) structures of cuttlebone and vertebra, the cages were respectively 3D printed by pure PEEK, PEEK with 5 wt% Ta (PEEK/Ta-5), PEEK with 10 wt% Ta (PEEK/Ta-10) and PEEK with 15 wt% Ta (PEEK/Ta-15), then verified and in sheep cervical fusion model systematically.

RESULTS

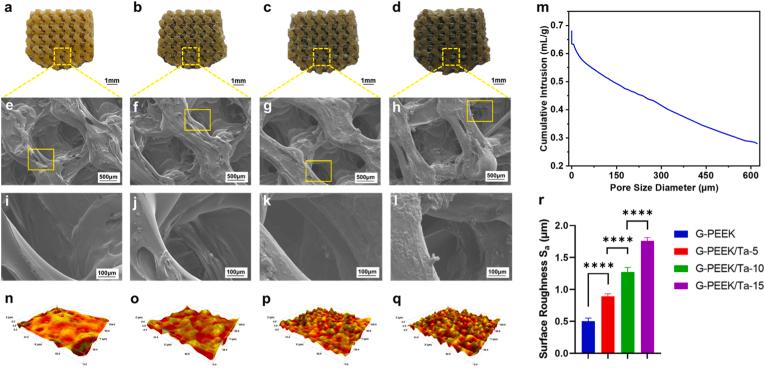

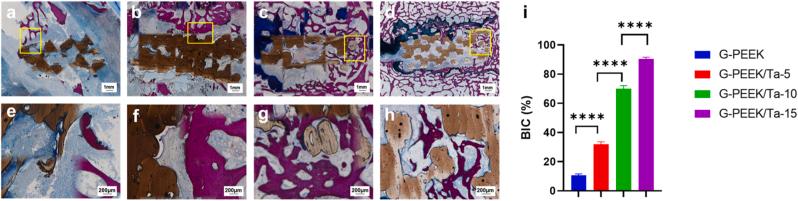

Vertebral Gyroid structure PEEK/Ta-15 cage exhibited superior mechanical properties than Cuttlebone-like structure PEEK/Ta-15 cage, closer to the cervical vertebra. Furthermore, PEEK/Ta-15 cage with higher Ta microparticles in PEEK provided a biomimetic gradient porous micro-structure with higher surface energy, guiding cell biological behavior, promoting new bone penetration, and accelerating osseointegration .

CONCLUSION

In conclusion, the study designed a biomimetic gradient porous cage with a micro-structure for enhancing mechanical properties, accelerating osseointegration and forming an anatomical lock in the fusion segment through composites, mechanical efficiency, surface extension, and pores.
