使用灵活可穿戴设备进行 3D 脊柱姿势跟踪来识别日常生活活动。

Recognizing Human Activity of Daily Living Using a Flexible Wearable for 3D Spine Pose Tracking.

机构信息

Peter L. Reichertz Institute for Medical Informatics of TU Braunschweig and Hannover Medical School, 38106 Braunschweig, Lower Saxony, Germany.

Ubiquitous Computing Lab, Department of Computer Science, Konstanz University of Applied Sciences, 78462 Konstanz, Baden-Württemberg, Germany.

出版信息

Sensors (Basel). 2023 Feb 12;23(4):2066. doi: 10.3390/s23042066.


DOI:10.3390/s23042066
PMID:36850664
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9961818/
Abstract

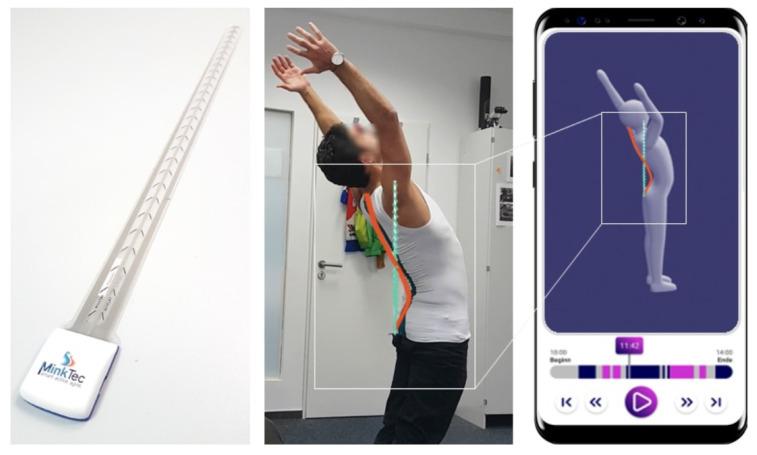

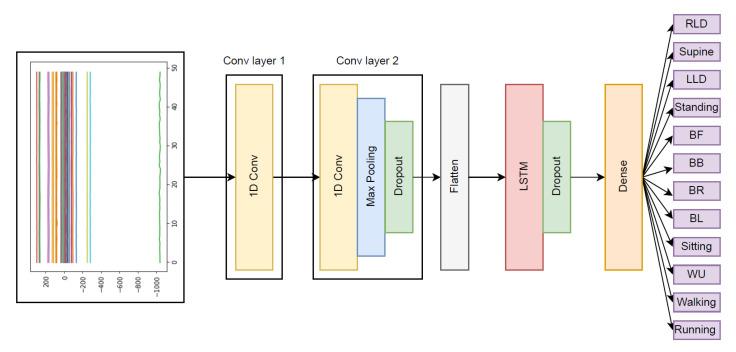

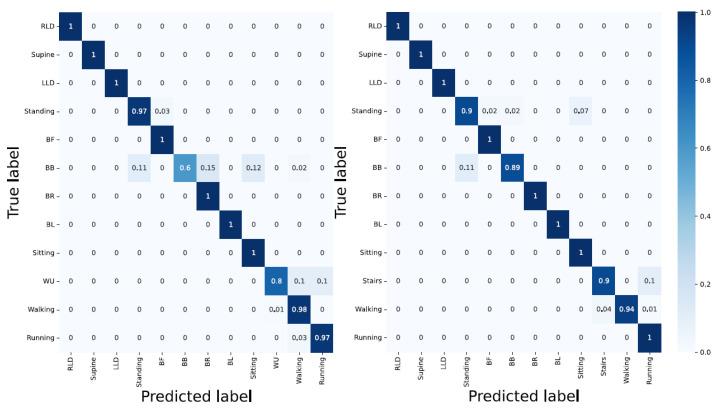

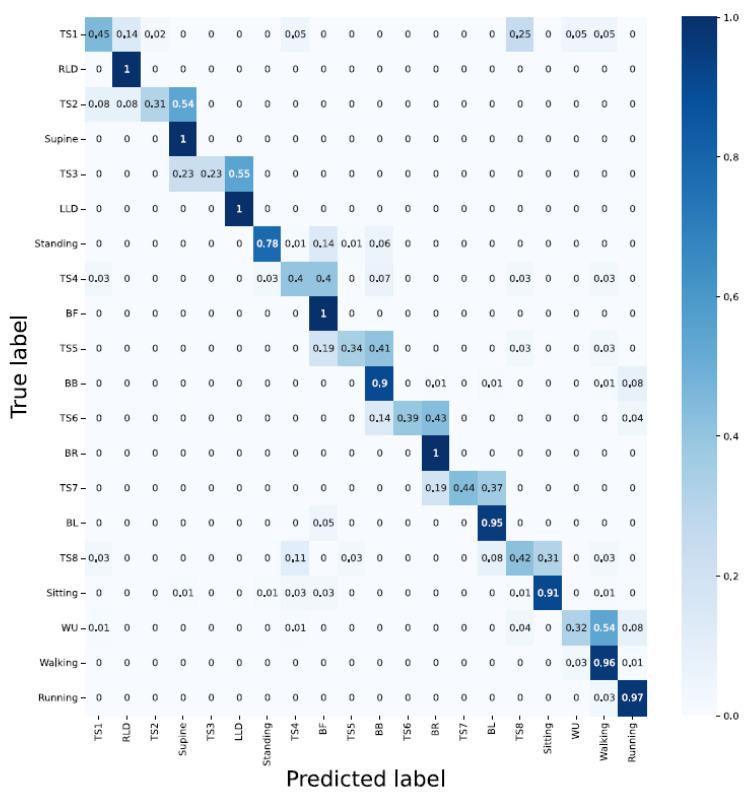

The World Health Organization recognizes physical activity as an influencing domain on quality of life. Monitoring, evaluating, and supervising it by wearable devices can contribute to the early detection and progress assessment of diseases such as Alzheimer's, rehabilitation, and exercises in telehealth, as well as abrupt events such as a fall. In this work, we use a non-invasive and non-intrusive flexible wearable device for 3D spine pose measurement to monitor and classify physical activity. We develop a comprehensive protocol that consists of 10 indoor, 4 outdoor, and 8 transition states activities in three categories of static, dynamic, and transition in order to evaluate the applicability of the flexible wearable device in human activity recognition. We implement and compare the performance of three neural networks: long short-term memory (LSTM), convolutional neural network (CNN), and a hybrid model (CNN-LSTM). For ground truth, we use an accelerometer and strips data. LSTM reached an overall classification accuracy of 98% for all activities. The CNN model with accelerometer data delivered better performance in lying down (100%), static (standing = 82%, sitting = 75%), and dynamic (walking = 100%, running = 100%) positions. Data fusion improved the outputs in standing (92%) and sitting (94%), while LSTM with the strips data yielded a better performance in bending-related activities (bending forward = 49%, bending backward = 88%, bending right = 92%, and bending left = 100%), the combination of data fusion and principle components analysis further strengthened the output (bending forward = 100%, bending backward = 89%, bending right = 100%, and bending left = 100%). Moreover, the LSTM model detected the first transition state that is similar to fall with the accuracy of 84%. The results show that the wearable device can be used in a daily routine for activity monitoring, recognition, and exercise supervision, but still needs further improvement for fall detection.

摘要

世界卫生组织将身体活动视为影响生活质量的一个因素。使用可穿戴设备对其进行监测、评估和监督,可以帮助我们及早发现阿尔茨海默病等疾病,并对其进行评估和康复治疗,同时还能监测远程医疗中的锻炼活动和跌倒等突发状况。在这项工作中,我们使用一种非侵入式、非干扰式的柔性可穿戴设备来测量 3D 脊柱姿势,以监测和分类身体活动。我们制定了一个全面的方案,该方案包括 10 种室内活动、4 种室外活动和 8 种过渡状态活动,分为静态、动态和过渡三个类别,以评估柔性可穿戴设备在人体活动识别中的适用性。我们实现并比较了三种神经网络的性能:长短期记忆网络(LSTM)、卷积神经网络(CNN)和混合模型(CNN-LSTM)。对于地面实况,我们使用加速度计和条带数据。LSTM 对所有活动的整体分类准确率达到了 98%。在躺下(100%)、静态(站立=82%,坐着=75%)和动态(行走=100%,跑步=100%)位置,使用加速度计数据的 CNN 模型表现更好。数据融合提高了站立(92%)和坐着(94%)的输出,而使用条带数据的 LSTM 则在弯曲相关活动(前屈=49%,后屈=88%,右屈=92%,左屈=100%)中表现更好,数据融合和主成分分析的组合进一步增强了输出(前屈=100%,后屈=89%,右屈=100%,左屈=100%)。此外,LSTM 模型以 84%的准确率检测到了类似于跌倒的第一个过渡状态。结果表明,该可穿戴设备可用于日常活动监测、识别和运动监督,但仍需要进一步改进以实现跌倒检测。
