Sub-10 μm-Thick Ge Thin Film Fabrication from Bulk-Ge Substrates via a Wet Etching Method.

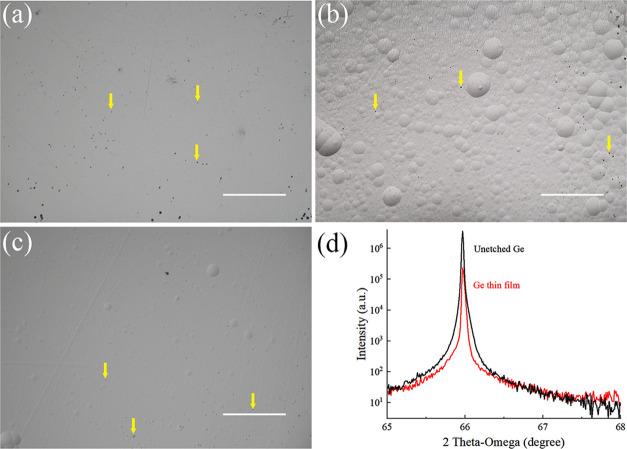

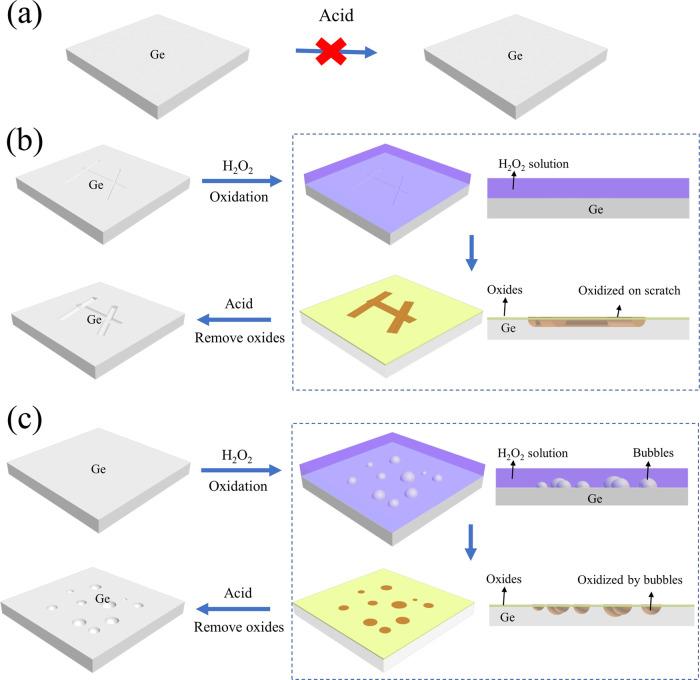

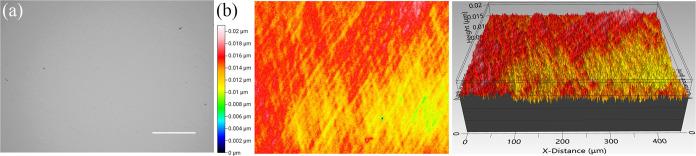

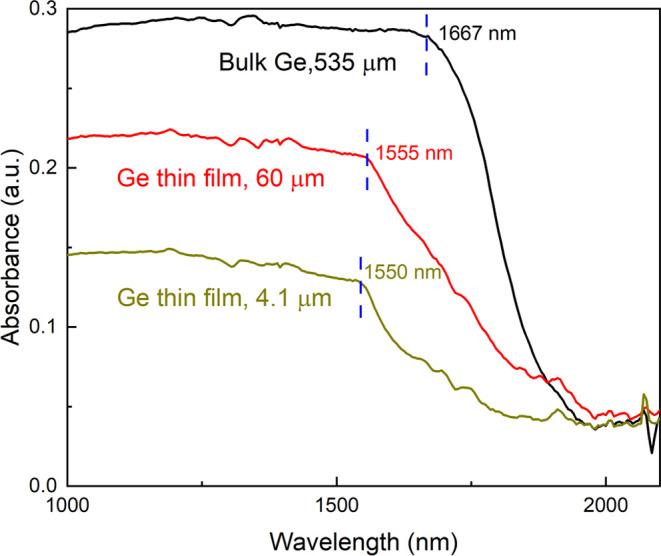

Low-defect density Ge thin films are crucial for studying the impact of defect density on the performance limits of Ge-based optical devices (optical detectors, LEDs, and lasers). Ge thinning is also important for Ge-based multijunction solar cells. In this work, Ge wet etching using three acidic HO solutions (HF, HCl, and HSO) was studied in terms of etching rate, surface morphology, and surface roughness. HCl-HO-HO (1:1:5) was demonstrated to wet-etch 535 μm-thick bulk-Ge substrates to 4.1 μm with a corresponding RMS surface roughness of 10 nm, which was the thinnest Ge film from bulk-Ge via a wet etching method to the best of our knowledge. The good quality of pre-etched bulk-Ge was preserved, and the low threading dislocation density of 6000-7000 cm was maintained after the etching process. This approach provides an inexpensive and convenient way for accurate Ge substrate thinning in applications such as multijunction solar cells and sub-10 μm-thick Ge thin film preparation, which enables future studies of low-defect density Ge-based devices such as photodetectors, LEDs, and lasers.
