Athinoula A. Martinos Center for Biomedical Imaging, Massachusetts General Hospital and Harvard Medical School, Charlestown, MA, 02129, USA.
Institute of Neuroscience and Medicine 4, Medical Imaging Physics, Forschungszentrum Jülich, 52425, Jülich, Germany.
Adv Sci (Weinh). 2024 Jul;11(26):e2309218. doi: 10.1002/advs.202309218. Epub 2024 Apr 30.

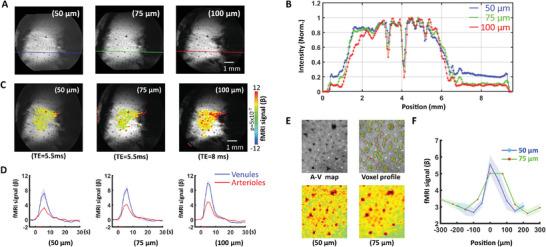

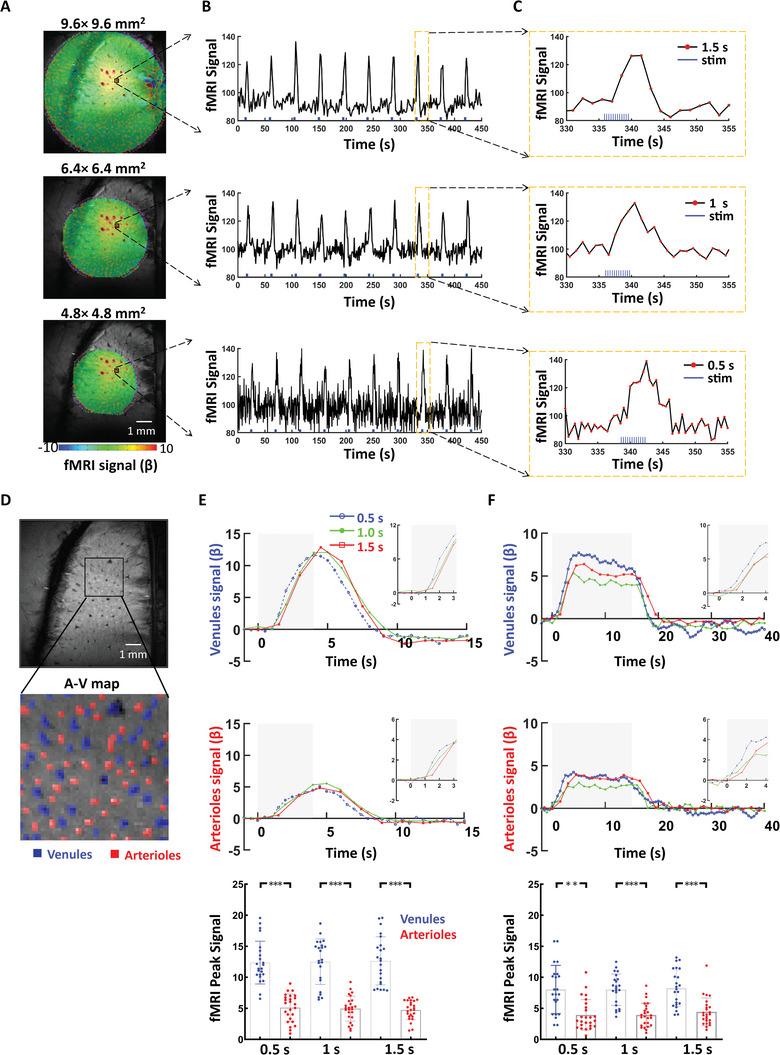

High-field preclinical functional MRI (fMRI) is enabled the high spatial resolution mapping of vessel-specific hemodynamic responses, that is single-vessel fMRI. In contrast to investigating the neuronal sources of the fMRI signal, single-vessel fMRI focuses on elucidating its vascular origin, which can be readily implemented to identify vascular changes relevant to vascular dementia or cognitive impairment. However, the limited spatial and temporal resolution of fMRI is hindered hemodynamic mapping of intracortical microvessels. Here, the radial encoding MRI scheme is implemented to measure BOLD signals of individual vessels penetrating the rat somatosensory cortex. Radial encoding MRI is employed to map cortical activation with a focal field of view (FOV), allowing vessel-specific functional mapping with 50 × 50 µm in-plane resolution at a 1 to 2 Hz sampling rate. Besides detecting refined hemodynamic responses of intracortical micro-venules, the radial encoding-based single-vessel fMRI enables the distinction of fMRI signals from vessel and peri-vessel voxels due to the different contribution of intravascular and extravascular effects.
高场临床前功能磁共振成像(fMRI)能够实现血管特定血流动力学反应的高空间分辨率映射,即单血管 fMRI。与研究 fMRI 信号的神经元来源不同,单血管 fMRI 侧重于阐明其血管起源,这可以很容易地用于识别与血管性痴呆或认知障碍相关的血管变化。然而,fMRI 的空间和时间分辨率有限,阻碍了皮质内微血管的血流动力学映射。在这里,实施了径向编码 MRI 方案来测量穿透大鼠感觉皮层的单个血管的 BOLD 信号。径向编码 MRI 用于以焦点视场(FOV)映射皮质激活,允许以 50×50 µm 的面内分辨率以 1 到 2 Hz 的采样率进行特定血管的功能映射。除了检测皮质内微静脉的精细血流动力学反应外,基于径向编码的单血管 fMRI 还能够区分血管和血管周围体素的 fMRI 信号,因为血管内和血管外效应的贡献不同。
