界面缺陷对底部、顶部和双栅极下非晶铟镓锌氧化物薄膜晶体管电学特性的影响。

Effect of interface defects on electrical characteristics of a-ITGZO TFTs under bottom, top, and dual gatings.

作者信息

Kang Mingu, Cho Kyoungah, Seol Minhyeok, Kim Sangsub, Kim Sangsig

机构信息

Department of Electrical Engineering, Korea University, Anam-ro 145, Seongbuk-gu, Seoul, 02841, Republic of Korea.

Display Research Center, Samsung Display, Samseong-ro 1, Giheung-gu, Yongin-si, Gyeonggi-do, 17113, Republic of Korea.

出版信息

Heliyon. 2024 Jul 4;10(13):e34134. doi: 10.1016/j.heliyon.2024.e34134. eCollection 2024 Jul 15.

DOI:10.1016/j.heliyon.2024.e34134
PMID:39071708
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11283065/
Abstract

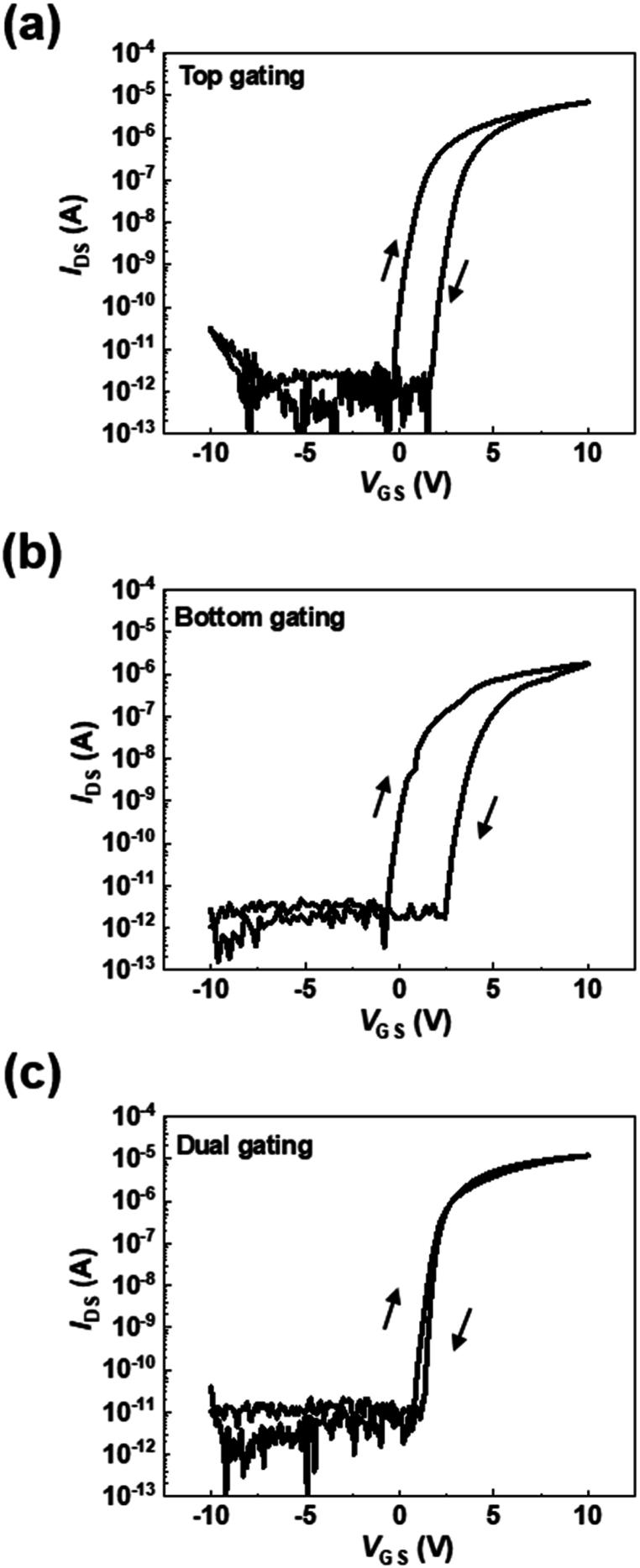

Here, we investigate the effects of interface defects on the electrical characteristics of amorphous indium-tin-gallium-zinc oxide (a-ITGZO) thin-film transistors (TFTs) utilizing bottom, top, and dual gatings. The field-effect mobility (27.3 cm/V∙s) and subthreshold swing (222 mV/decade) under a dual gating is substantially better than those under top (12.6 cm/V∙s, 301 mV/decade) and bottom (11.1 cm/V∙s, 487 mV/decade) gatings. For an a-ITGZO TFT, oxygen deficiencies are more prevalent in the bottom-gate dielectric interface than in the top-gate dielectric interface, and they are less prevalent inside the channel layer than at the interfaces, indicating that the presence of oxygen deficiencies significantly affects the field-effect mobility and subthreshold swing. Moreover, the variation in the electrical characteristics due to the positive bias stress is discussed here.

摘要

在此,我们研究了界面缺陷对采用底部、顶部和双栅极的非晶铟锡镓锌氧化物(a-ITGZO)薄膜晶体管(TFT)电学特性的影响。双栅极下的场效应迁移率(27.3 cm²/V∙s)和亚阈值摆幅(222 mV/十倍频程)明显优于顶部(12.6 cm²/V∙s,301 mV/十倍频程)和底部(11.1 cm²/V∙s,487 mV/十倍频程)栅极下的情况。对于a-ITGZO TFT,底部栅极介电界面处的氧缺陷比顶部栅极介电界面处更普遍,且在沟道层内部比在界面处更不普遍,这表明氧缺陷的存在显著影响场效应迁移率和亚阈值摆幅。此外,本文还讨论了由正偏压应力引起的电学特性变化。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/e669fd4fda08/gr6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/a3ba5eb6f025/ga1.jpg

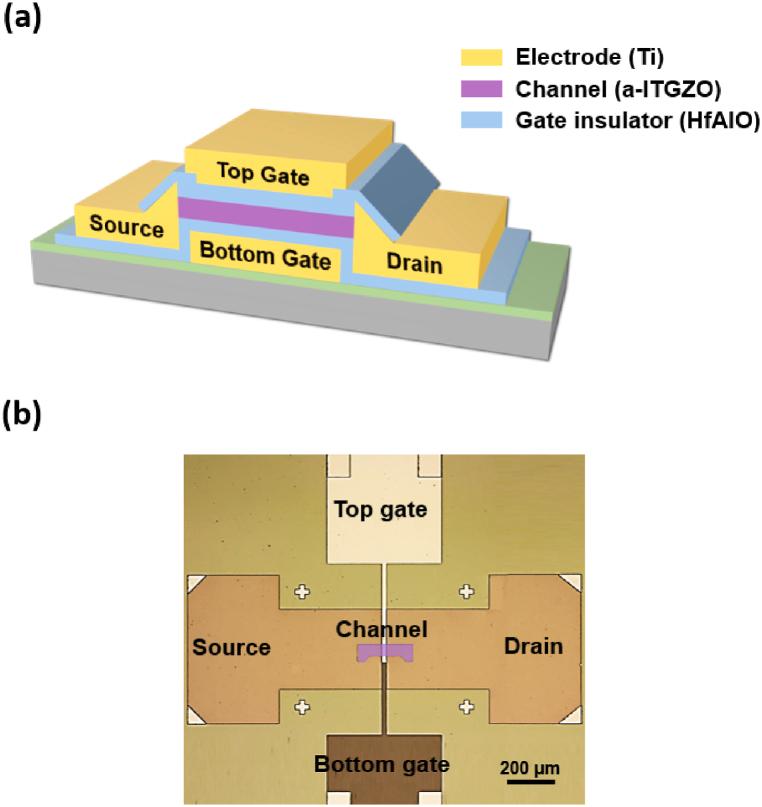

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/98a2f7c0be2f/gr1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/19aa6afb5cb3/gr2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/20842a32777a/gr3.jpg

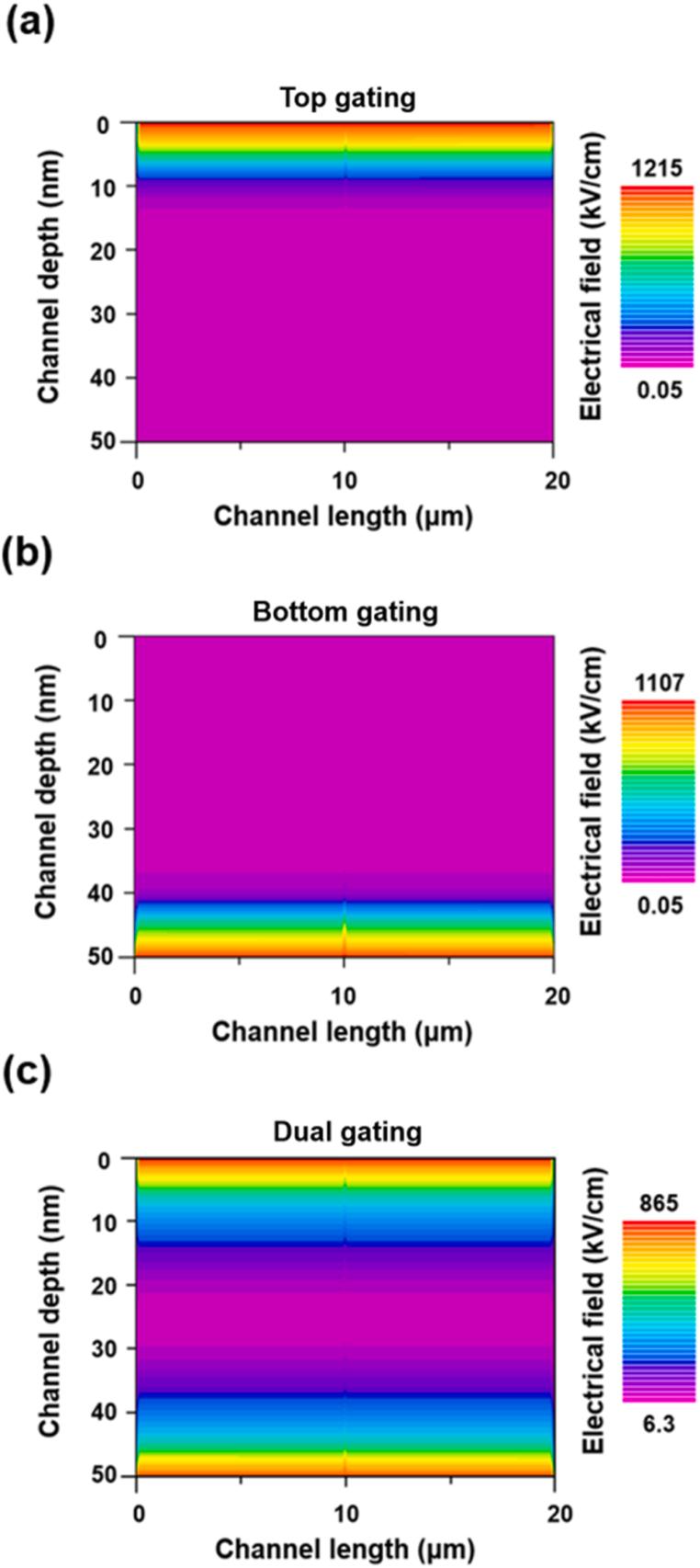

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/a399a34ef809/gr4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/ca7cc6920928/gr5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/e669fd4fda08/gr6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/a3ba5eb6f025/ga1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/98a2f7c0be2f/gr1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/19aa6afb5cb3/gr2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/20842a32777a/gr3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/a399a34ef809/gr4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/ca7cc6920928/gr5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0c7a/11283065/e669fd4fda08/gr6.jpg
