7T 下骨骼肌质子密度脂肪分数定量的参数优化。

Parameter optimization for proton density fat fraction quantification in skeletal muscle tissue at 7 T.

机构信息

Institute of Radiology, University Hospital Erlangen, Friedrich-Alexander-Universität Erlangen-Nürnberg (FAU), Erlangen, Germany.

Division of Medical Physics in Radiology, German Cancer Research Centre (DKFZ), Heidelberg, Germany.

出版信息

MAGMA. 2024 Dec;37(6):969-981. doi: 10.1007/s10334-024-01195-2. Epub 2024 Aug 6.

DOI:10.1007/s10334-024-01195-2
PMID:39105951
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11582128/
Abstract

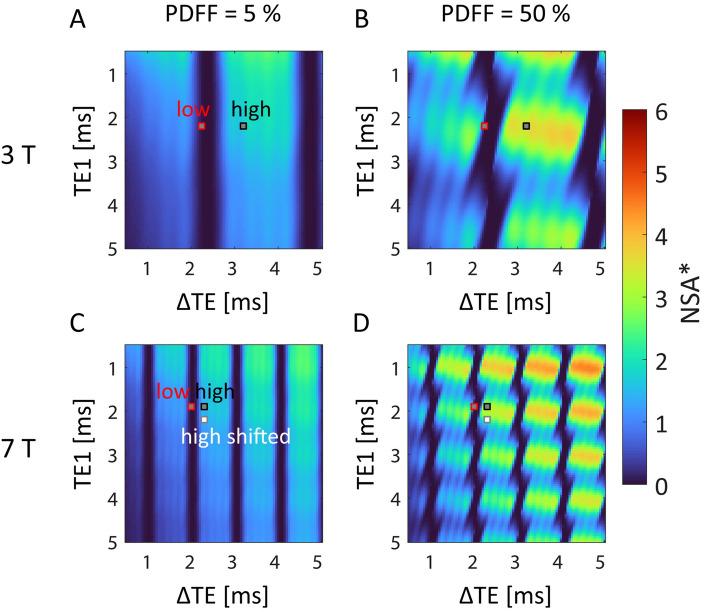

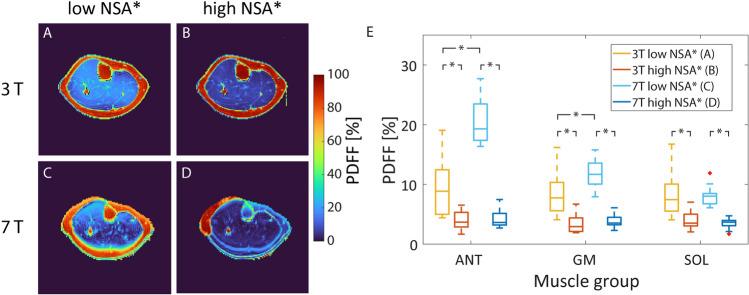

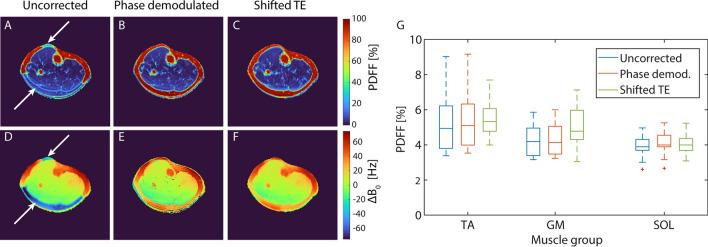

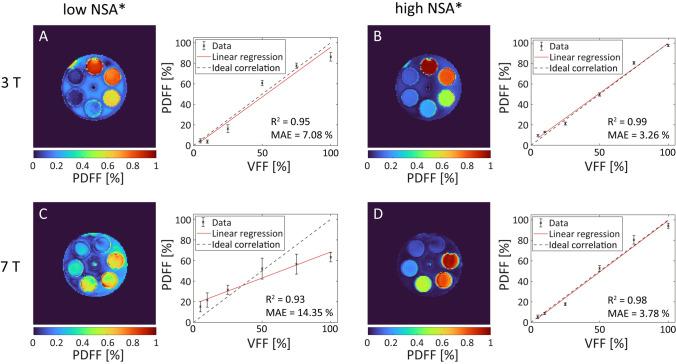

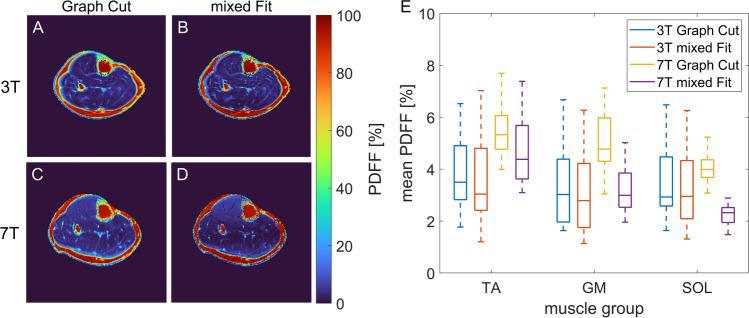

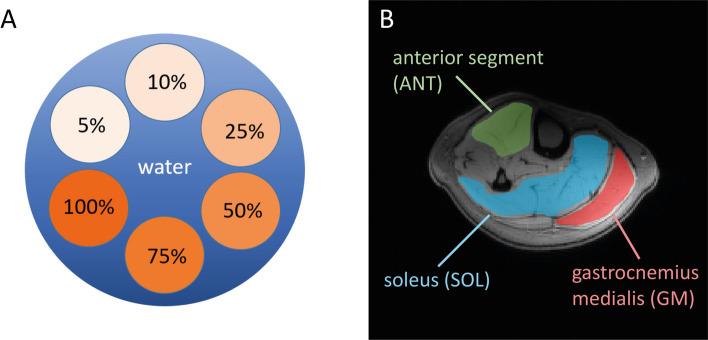

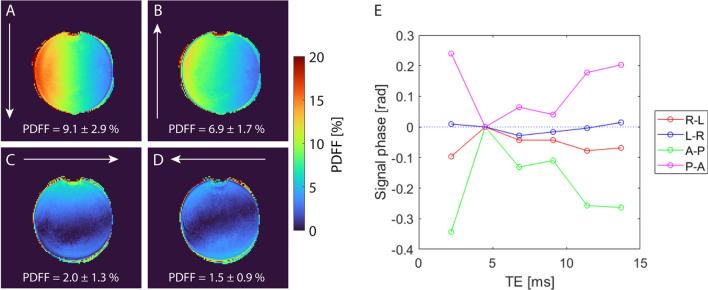

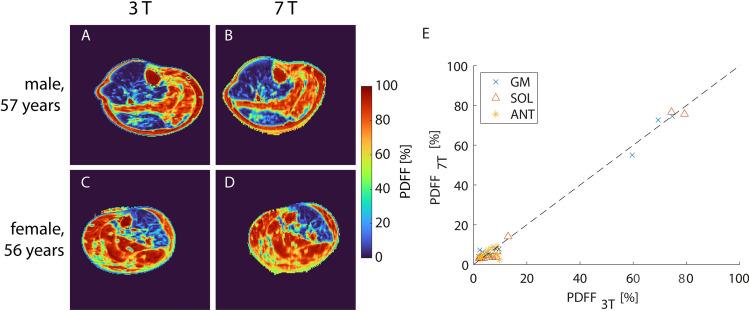

OBJECTIVE: To establish an image acquisition and post-processing workflow for the determination of the proton density fat fraction (PDFF) in calf muscle tissue at 7 T. MATERIALS AND METHODS: Echo times (TEs) of the applied vendor-provided multi-echo gradient echo sequence were optimized based on simulations of the effective number of signal averages (NSA*). The resulting parameters were validated by measurements in phantom and in healthy calf muscle tissue (n = 12). Additionally, methods to reduce phase errors arising at 7 T were evaluated. Finally, PDFF values measured at 7 T in calf muscle tissue of healthy subjects (n = 9) and patients with fatty replacement of muscle tissue (n = 3) were compared to 3 T results. RESULTS: Simulations, phantom and in vivo measurements showed the importance of using optimized TEs for the fat-water separation at 7 T. Fat-water swaps could be mitigated using a phase demodulation with an additional B map, or by shifting the TEs to longer values. Muscular PDFF values measured at 7 T were comparable to measurements at 3 T in both healthy subjects and patients with increased fatty replacement. CONCLUSION: PDFF determination in calf muscle tissue is feasible at 7 T using a chemical shift-based approach with optimized acquisition and post-processing parameters.

摘要

目的：建立一种用于在 7T 下测量小腿肌肉组织中质子密度脂肪分数（PDFF）的图像采集和后处理工作流程。 材料与方法：根据有效平均信号数（NSA*）模拟，优化了所应用的供应商提供的多回波梯度回波序列的回波时间（TE）。通过在体模和健康小腿肌肉组织（n=12）中的测量来验证得到的参数。此外，还评估了用于减少 7T 时相位误差的方法。最后，将健康受试者（n=9）和肌肉组织脂肪替代患者（n=3）的小腿肌肉组织在 7T 下测量的 PDFF 值与 3T 结果进行比较。 结果：模拟、体模和体内测量均表明在 7T 下使用优化的 TE 进行脂肪-水分离的重要性。使用附加 B 图的相位解调或将 TE 移至更长的值，可以减轻脂肪-水交换。在健康受试者和脂肪替代增加的患者中，在 7T 下测量的肌肉 PDFF 值与在 3T 下的测量值相当。 结论：使用基于化学位移的方法，并优化采集和后处理参数，可在 7T 下对小腿肌肉组织中的 PDFF 进行测定。
